Retail Store Sound System with 8 Atlas Sound SM52T Wall Mount Loudspeakers and Mixer Amplifier
This Atlas Sound Professional retail store sound system is ideal for small coverage areas and can be expanded beyond that for further coverage and control over separate zones and paging.

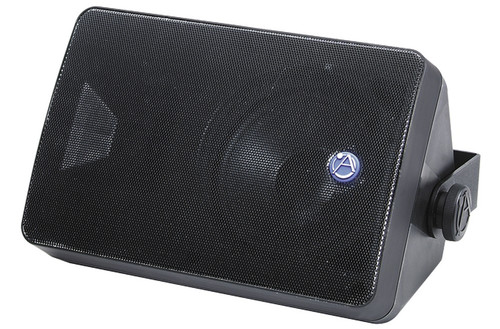

The environment-resistant SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and FerroFluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the Atlas Sound TRX Control WaveGuide high frequency director. This design provides smooth, even sound coverage (90°H x 90°V). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the Atlas Sound PolyGuard protection circuit.
The SM52T includes an internally mounted 30W 70.7V / 100V line matching transformer with 8Ω bypass and screwdriver adjustable tap selection for use in distributed sound applications. To withstand the harshest environments, the new Strategy Series SM52T surface mount loudspeakers are constructed of weather resistant materials: UV-resistant, talc impregnated, polypropylene injection molded cabinets; polypropylene woofer cones; powder coated aluminum grilles and all brass hardware. The Strategy Series speaker systems include a versatile, yet simple, C-bracket designed to provide easy vertical or horizontal installation on just about any surface. Ensure that the chosen fixing point is strong enough to support the SM52T. Care should also be taken to prevent the SM52T from being exposed to direct precipitation. A 5/8"-27 threaded hole is provided on the C-bracket to allow the SM52T series speaker to be mounted on any Atlas Sound microphone stand for near-field live sound applications. 2-3/8" OC brass inserts are also provided on the rear of the SM52T to accommodate an OMNIMOUNT bracket.

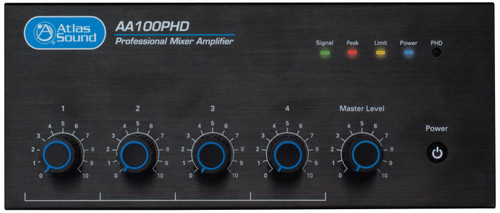

The AA100PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and two stereo line inputs, the AA100PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers.

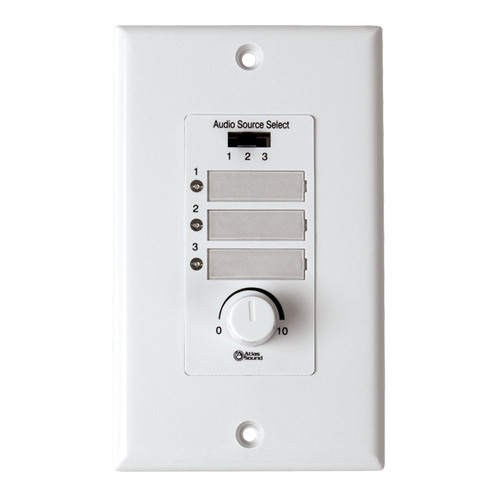

The Atlas Sound WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.
