Medium-Sized Retail Store Background Music Paging System
The atmosphere created in a retail store plays an important role in its success and establishes repeat customers. This Bluetooth-enabled sound system produces high-quality background music to keep customers in a good mood while shopping. This music paging system includes eight QSC AD-S6T 6" surface mount speakers, a JBL VMA1120 120W 5-channel Bluetooth-enabled mixer amplifier, a Bosch PLE-1CS plena all-call call station, a JBL CSR-V 1-zone wall remote control for easy access and speaker wire for installation. This speaker system is great for apparel stores, shoe stores or any medium-sized retail space, roughly 4,000 sq ft, where you want to create the perfect shopping experience.

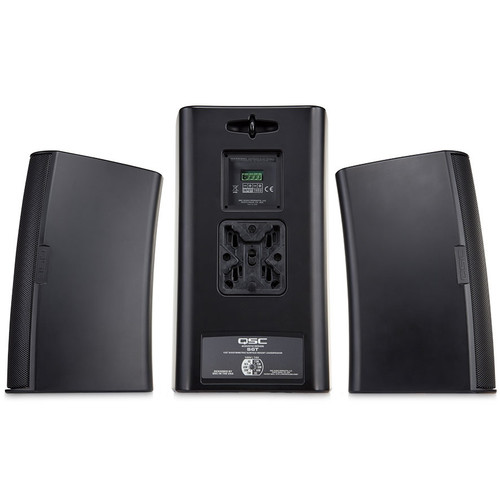

QSC AD-S6T AcousticDesign 6" 2-Way Wall Mount Loudspeakers
The QSC AD-S6T is an AcousticDesign 6" 2-way surface mount loudspeaker. With its 6" weather treated woofer and 1" silk dome tweeter, the AD-S6T has DMT (Directivity Matched Transition) that ensures smooth, uniform frequency response over a 105° axisymmetric (conical) coverage area. The AD-S6T has an X-Mount system that enables the loudspeaker to be easily installed and deployed at various angles with no slippage over time. It also has advanced voicing filter sets that use QSC Intrinsic Correction, which is available through either Q-Sys processing or CXD amplifier platforms. The AD-S6T's lightweight ABS enclosure offers long-term durability and lasting good looks. Its sealed input panel cover and powder-coated aluminum grilles are also added for weather resistance.

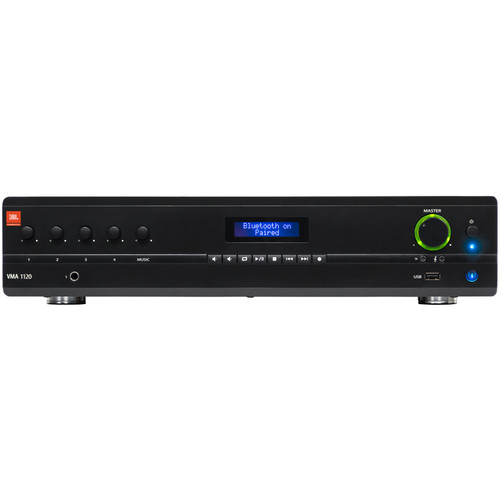

JBL VMA1120 120W 5-Channel Bluetooth Enabled Mixer Amplifier
The JBL VMA1120 is a cost-effective 5-channel input Bluetooth-enable mixer/amplifier with low impedance functionality (4Ω, 8Ω) and high impedance 120W @ 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, particularly in price-sensitive emerging markets, and include multi-source mixing, VOX function, and priority muting. Voice-activated ducking is available on input channel 2. The audio input level required to activate ducking is set using the trim pot on the rear panel. Adjusting in the counterclockwise direction will reduce that level while the full clockwise setting will disable the VOX function. The VMA1120 may use input channel 2 as a priority channel, muting all other channels when pins 4 and 5 are shorted using a switch closure. Similarly, input 5 can exercise priority over all inputs into output amplifier CH2. Input 2 will have priority over both amplifiers CH1 and CH2 if the routing DIP switch #2 is set to ON.

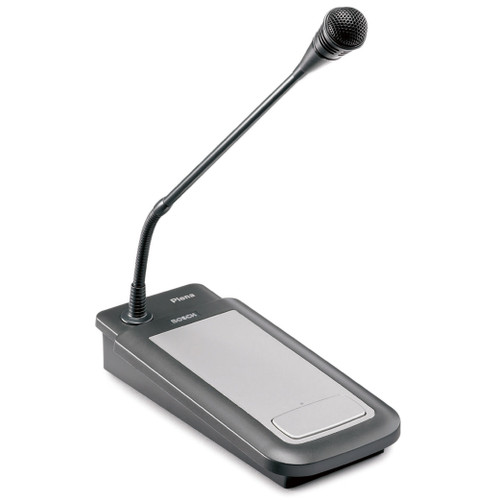

Bosch PLE-1CS Plena All-Call Call Station
The Bosch Plena PLE-1CS tabletop microphone is a stylish, high-quality tabletop unidirectional condenser microphone, intended for making calls in a public address system. Its heavy metal base and rubber feet ensure stability on any flat surface. The special design also allows the unit to be neatly flush-mounted on desktops. The PTT key (press-to-talk), not only switches on the microphone but also provides priority contacts, that are compatible with the Plena range of amplifiers. The switching characteristic of the PTT key can be configured internally for PTT mode (on as long as pressed) or toggle mode (press to switch on, press again to switch off). It is equipped with a fixed, flexible 2 m cable and a 5‑pin Euro-style connector for the balanced signal and the priority contact. If the priority contact is not required, the microphone can be connected to amplifiers with a 3‑pin Euro-style connector. A green LED indicates when the microphone is active.

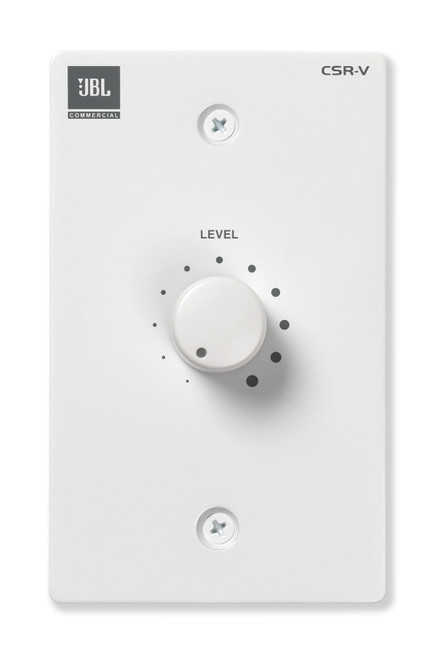

JBL CSR-V 1-Zone Wall Remote Control
JBL CSR-V offers source selection and/or volume control from an elegant user interface. The JBL Commercial® CSR series remote controls can use analog DC voltage to provide logic control ranging from source selection and volume. Wired with Cat 5 cable with universally accepted RJ-45 connectors and can be placed up to 1000 ft (305 m) from the mixer. The CSR-V remote control allows you to remotely select the source and/or control the volume on the CSM mixer. Using the CSR-V remote control with your CSM mixer, you can remotely control the volume of the source selected by the mixer. Available in black or white.
Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
