Retail Store Sound System with 12 PD6 Pendant Speakers, RMA350BT 350W Bluetooth Mixer Amplifier and 4 VC100W Volume Controls

Inside the Design

This open-ceiling commercial audio system is purpose-built for retail store environments, including department stores, boutiques, showrooms, and large-format outlets. It includes twelve Pure Resonance Audio PD6 6.5" 2-way pendant mount loudspeakers paired with the robust Pure Resonance Audio RMA350BT 350-watt rack mount mixer amplifier. Designed to deliver wide, even audio coverage in open-architecture spaces, this system offers Bluetooth streaming and convenient volume control with four VC100W decora-style wall controls that can be placed throughout the store. High-quality 16/2 speaker wire ensures dependable signal transmission, making this a reliable and scalable audio solution for any retail setting.

Sound System Features:

• High-performance 6.5" PD6 pendant speakers with 2-way coaxial drivers and 150° wide dispersion for full-range sound
• Durable, weather-resistant construction with dual-layer powder-coated grilles for long-lasting performance
• Modern pendant design ideal for open-ceiling environments in retail stores
• RMA350BT rack mount amplifier features Bluetooth streaming, MP3, FM tuner, USB/SD playback, and priority mic input
• Powerful 350-watt output supports distributed 70V audio systems for consistent coverage across large retail spaces
• Four decora-style 100W wall attenuators provide convenient local volume control throughout your store

About the System Components

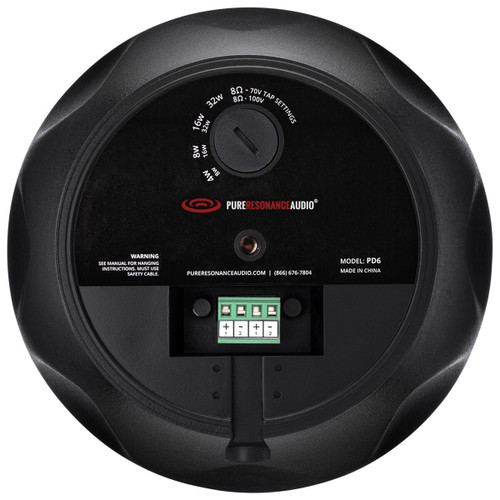

Pure Resonance Audio PD6 6.5" Pendant Mount Loudspeakers

The PD6 is a commercial-grade 6.5" 2-way pendant speaker designed for open-ceiling applications. With a full-range coaxial driver, 150° conical dispersion, and weather-resistant construction, it delivers powerful, clear sound in high-ceiling spaces such as restaurants, gyms, and retail stores. The durable housing and integrated mounting hardware make it easy to install and highly versatile for indoor or covered outdoor use.

Pure Resonance Audio RMA350BT 350W Rack Mount Mixer Amplifier

The RMA350BT is a professional-grade 350-watt rack mount mixer amplifier that supports 70V, 100V, 8 ohm, and 4 ohm outputs. It features Bluetooth streaming, USB/SD MP3 playback, FM tuner, and priority ducking with VOX-triggered mic input. This amplifier provides extensive functionality for commercial environments, with built-in protections for overload, short-circuit, and thermal conditions, ensuring reliable long-term operation.

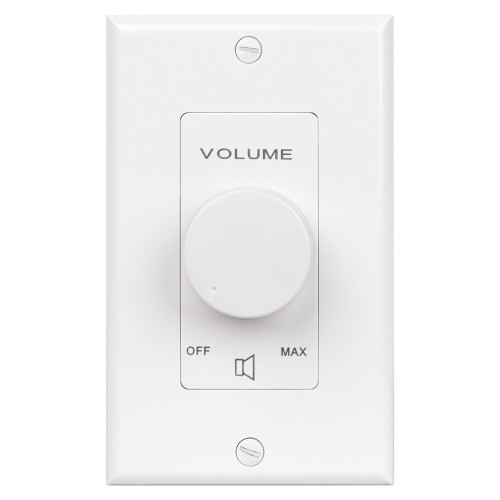

Pure Resonance Audio VC100W 100W Decora 70V Volume Controls

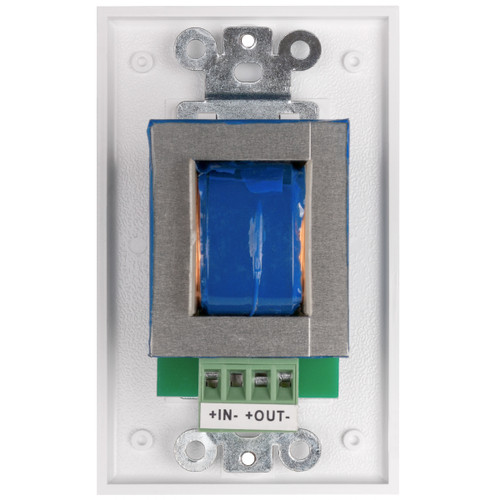

The Pure Resonance Audio VC100W 100W white decora style 70V volume control features a durable plastic decora wall plate with white finish and matching knob. This decora remote volume control provides excellent frequency response, low insertion loss, and reliable performance. The clean white decora style will fit in perfectly with decora wall plates for existing light switches and electrical outlets. The VC100W 70V speaker volume control is easy to install and features a removable phoenix-style screw terminal block with in-out throughputs that will accommodate up to 14G wire and mounts in a minimum install depth of 1.85".

System & Component Videos

Pure Resonance Audio PD6 6.5" Indoor/Outdoor 70V Commercial Pendant Speakers

• Durable weather-resistant construction
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 4W, 8W, 16W, 32W
• 100V: 8 ohm, 8W, 16W, 32W
• Includes pendant mounting hardware
• Ideally suited for such applications as background music (BGM) and paging



Pure Resonance Audio RMA350BT 350W Commercial Rack Mount Mixer Amplifier with Bluetooth

• 1 RU chassis, high-efficiency, and lightweight design
• MP3 media player supports USB, TF, Bluetooth and FM tuner
• Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
• Bass and treble tone controls
• Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
• Advanced high-performance power amplifier circuit
• 4-16Ω/70V speaker output
• 350W rated output power
• Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
• Remote control



Pure Resonance Audio VC100W 100W Decora White 70V Commercial Volume Controls

• Stylish appearance - Decora-style design includes a white plastic plate with matching knob
• Flexible - The VC100W is perfect for use with 25V, 70V, or 100V speakers and distributed audio systems
• High-quality adjustment - Volume control attenuator provides excellent frequency response, low insertion loss, and reliable performance
• Smooth volume adjustment - Easily adjust to your desired volume level. No stop between maximum and off position to prevent switch damage
• Versatile - Provides high-quality audio level adjustment of single or multiple speaker lines
• Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

• (12) Pure Resonance Audio PD6 6.5" 2-Way Open-Ceiling Pendant Mount Loudspeakers
• (1) Pure Resonance Audio RMA350BT 350W Rack Mount Mixer Amplifier
• (4) Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Controls - White
• (1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
