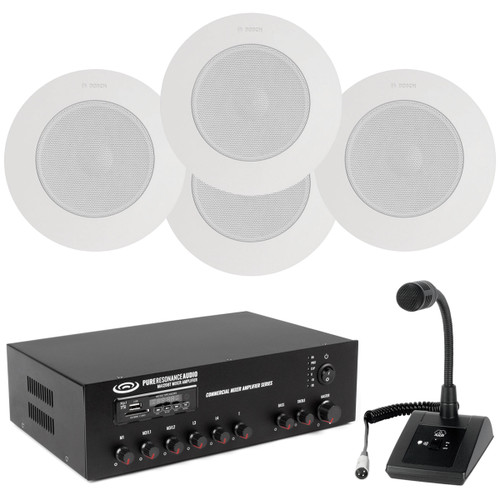

Retail Store Sound System with 4 Bosch LC1-WM06E8 In-Ceiling Loudspeakers and Bosch PLENA Mixer Amplifier

This Retail Store Sound System with Bosch Ceiling Speakers and PLENA Mixer Amplifier is perfect for retail stores, shops, boutiques and anywhere a background music system and paging with exceptional audio is needed.

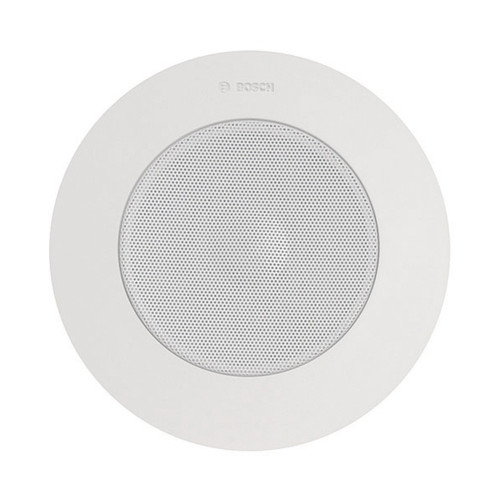

The Bosch LC1-WM06E8 4 inch In-Ceiling Loudspeaker can be used for a wide variety of ceiling environments. This 6 W single cone loudspeaker provides excellent speech and music in indoor public address applications. The 4" Ceiling loudspeaker is suitable for use in air‑handling spaces when installed with the LC1‑MFD enclosure. The loudspeaker frame includes provision for mounting the optional pilot-tone indication board or WLS board and has a light conductor to indicate the pilot-tone status. The Bosch LC1 Modular Ceiling Loudspeakers are designed for use in voice alarm systems and are EN 54‑24 certified. The loudspeakers have built-in protection to ensure that fire damage to the loudspeaker does not cause failure of the connected circuit. In this way system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation.

The Plena mixer amplifiers are high performance, professional public address units with modern state of the art features. The Bosch PLE-1ME060-US Plena Mixer Amplifier is a compact, yet powerful 60 watt amplifier and 4-channel mixer for providing background music and public address audio for commercial use, in offices or at home. An LED VU meter monitors the master output. A headphone socket, below the VU meter, provides the mixer output. For total reliability and ease of use, a limiter is integrated into the output stage to restrict output if the user applies too much signal. Overall the PLE-1ME060-US mixer amplifiers are easy to use, taking the complexity away from the user and putting it where it belongs, inside the equipment. Providing a crisp call or clear music is as easy as turning on the radio.

Optional:

The Plena tabletop microphone is a stylish, high-quality tabletop unidirectional condenser microphone, intended for making calls in a public address system. Its heavy metal base and rubber feet ensure stability on any flat surface. The special design also allows the unit to be neatly flush-mounted in desktops. The PTT-key (press-to-talk), not only switches on the microphone, but also provides priority contacts, that are compatible with the Plena range of amplifiers. The switching characteristic of the PTT-key can be configured internally for PTT-mode (on as long as pressed) or togglemode (press to switch on, press again to switch off). It is equipped with a fixed, flexible 2 m cable and a 5‑pin Euro style connector for the balanced signal and the priority contact. If the priority contact is not required, the microphone can be connected to amplifiers with 3‑pin Euro style connector. A green LED indicates when the microphone is active.

Bosch LC1-WM06E8 4" In-Ceiling Loudspeakers:

• Excellent speech and music reproduction
• Easy installation with one grille size and one complete set of accessories
• Choice of different ceiling mounting methods
• Optional Pilot Tone indication
• EN 54‑24, UL 2043. UL 1480 certified



Bosch PLE-1ME060-US Plena Mixer Amplifier:

• 4 microphone / line inputs, plus music source input
• Announcement only output, 3‑wire volume override
• 600 Watt Output Power
• 2‑tone chime



Optional:

Bosch PLE-1CS Plena All-Call Call Station:

• PTT-key for calls for activation
• Momentary or toggle
• Green LED, indicating microphone active
• Stable metal base design with fixed 2 m cable and lockable Euro style connector
• Phantom powered by amplifier

• (4) Bosch LC1-WM06E8 4" In-Ceiling Loudspeakers
• (1) Bosch PLE-1ME060-US Plena Mixer Amplifier
• (4) Bosch LC1-CBB Speaker Back Boxes
• (4) Bosch LM1-TB Tile Bridges



Optional:

• (1) Bosch PLE-1CS Plena All-Call Call Station
