RF Venue CX-22 Architecturally Discreet Ceiling Antenna
The CX-22™ provides remote antenna coverage for installed wireless microphones in diverse architectural environments.
Designed for wideband UHF, it also features strong sensitivity in the 216 MHz range to accommodate assistive listening systems.

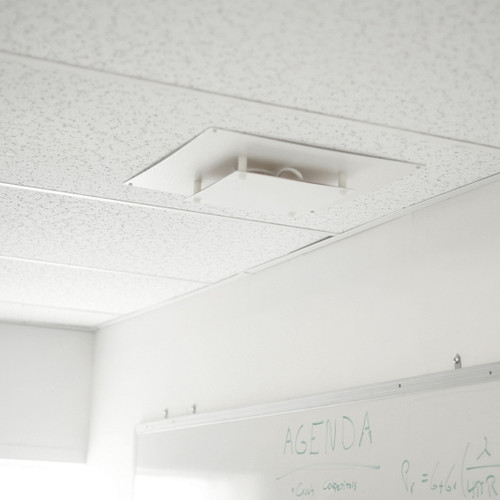

The CX-22 is mounted in a low-profile, 14" X 14" form factor for ceiling installation. Popular in training facilities, classrooms, lecture-halls, houses of worship, and boardrooms, the CX-22 is an ideal tool for maximizing signal where aesthetic considerations make placement of traditional directional antennas impossible, as well as for distributed antenna systems (DAS) in large facilities with drop-ceiling environments.
The CX-22 ships in matte white and can be painted to match any interior. *Paints that contain carbon black, lead, or metallic powder may affect performance.
- Features
Features
- Compact (14" x 14") low-profile antenna for wideband UHF wireless
- Also sensitive to the 216 MHz range for use with assistive listening systems
- Operating frequency range: 470 MHz – 698 MHz
- Hardware mounting kit included
- Specification
Operating Frequency 470 - 698 MHz Bandwidth 228 MHz Impedance 50Ω Polarization Linear Mount Location Ceiling tile Connector BNC female Dimensions 14" (355 mm) x 14" (355 mm) Weight 2 lbs (0.9 kg) - Documents
