RF Venue DFINBDISTRO4 4-Channel Antenna Distributor with Black Diversity Fin Antenna and Cables Bundle

RF Venue DFINBDISTRO4 4-Channel Wireless Microphone Upgrade Pack

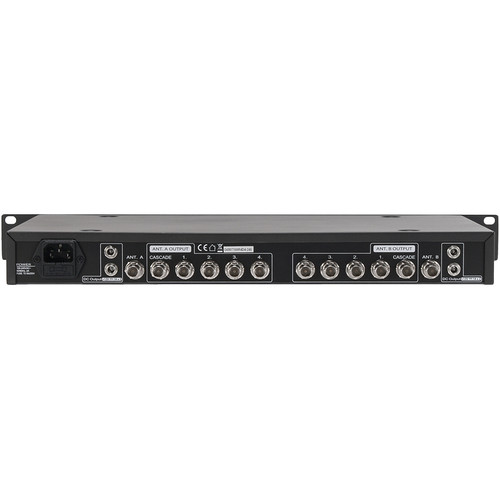

The RF Venue DFINBDISTRO4 bundle is an all-in-one solution for optimizing wireless microphone setups. At its core is the DISTRO4, a four-channel antenna distribution system that supplies both RF and DC power to up to four wireless microphone receivers, regardless of brand. This true distribution amplifier splits signals from two antennas (or a single Diversity Fin) connected to the rear panel, amplifying them before delivering the signals to multiple receivers in a rack. An additional cascade port allows for daisy-chaining multiple units together, accommodating up to 16 receivers per antenna pair.

Complementing the DISTRO4 is the patented Diversity Fin antenna, featuring a cross-polarized, hybrid design that reduces signal dropouts by capturing both vertically and horizontally polarized waves. This design effectively performs the function of two traditional "shark fin" antennas, enhancing RF and audio performance. The matte black antenna can be wall-mounted using the supplied L-bracket, making it suitable for permanent installations.

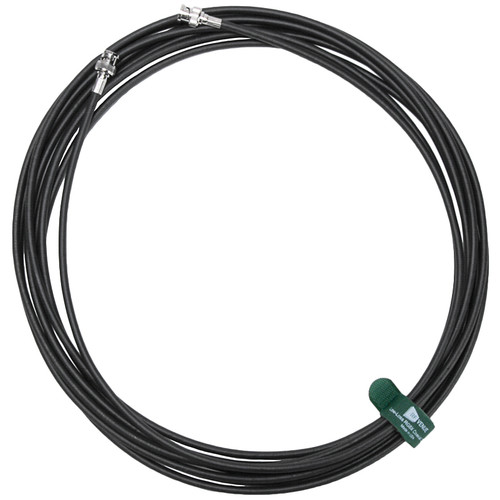

The bundle also includes two 25-foot RG8X low-loss coaxial cables, along with all necessary DC and RF jumper cables required for a four-channel microphone system operation. With its comprehensive components and user-friendly design, the DFINBDISTRO4 bundle is ideal for a wide range of applications, from live sound events to permanent installations in schools and churches.

• DISTRO4 Antenna Distributor: Distributes diversity RF and DC power across four wireless microphone receivers of any brand. Features a 2000 mA internal power supply and cascade ports for expanding up to 16 receivers per antenna pair
• Diversity Fin Antenna: Patented cross-polarized design reduces signal dropouts by capturing both vertically and horizontally polarized waves. Includes a black wall-mount bracket for permanent installations.
• Comprehensive Cabling: Includes two 25-foot RG8X low-loss coaxial cables, ten BNC jumpers, four DC jumpers, and one AC power cord, providing all necessary connections for a four-channel wireless microphone system
• Expandable System: Cascade port allows for daisy-chaining multiple DISTRO4 units, supporting up to 16 receivers per antenna pair, making it suitable for larger wireless setups
• Versatile Applications: Ideal for various settings, including live sound events, film and TV productions, and permanent installations in schools and churches, offering improved RF and audio performance

DFIN Diversity Fin Spec Sheet

DISTRO4 Distribution Spec Sheet

• (1) Black Diversity Fin Antenna with Black Wall Mount Bracket
• (1) DISTRO4 Antenna Distribution System
• (10) BNC Jumpers
• (4) DC Jumpers
• (1) AC Power Cord
• (2) 25' RG8X BNC Cables
