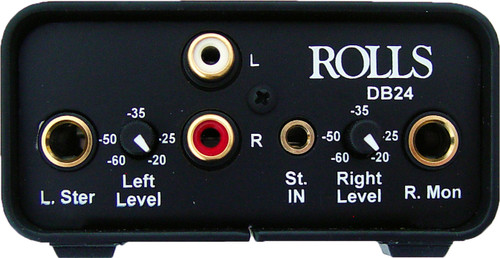

The Rolls DB24 Stereo Direct Interface is a two channel isolation device designed to connect high impedance devices to low impedance. The unit is completely passive and utilizes Rolls proprietary audio transformers for superior sound. A heavy duty steel chassis was chosen to provide maximum reliability when used in demanding live sound reinforcement applications.
The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system.
| Input Impedance | 20k - 600 Ohms |
|---|---|
| Frequency Response | 50 - 15kHz +/- 3 dB |
| Output Impedance | 600 Ohms |
| Max Output Level | +4 dBm |
| Connectors | 2 ea; XLR Male, 1; Stereo RCA,1; 1/8" (3.5mm) TRS, 2 ea; 1/4" TRS |
| Controls | 2 ea; Variable attenuators, 2 ea; Ground Liftswitches |
| Dimensions(H x W x D) | 3.42" (8.67 cm) x 1.45" (3.68 cm) x 3.325" (8.4455 cm) |
| Weight | 1.5 lbs (0.68 kg) |
