Rolls PB223 Dual Phantom Power Adapter
Rolls PB223 Dual Phantom Power Adapter
By Rolls Audio

Rolls PB223 Dual Phantom Power Adapter

Write a Review
Part #:
PB223
Model #:
PB223
MSRP: $109.00
$89.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.

Shipping Notice:  We are moving! Shipping will be temporarily paused from October 15 to 20 and will resume on October 21.

Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

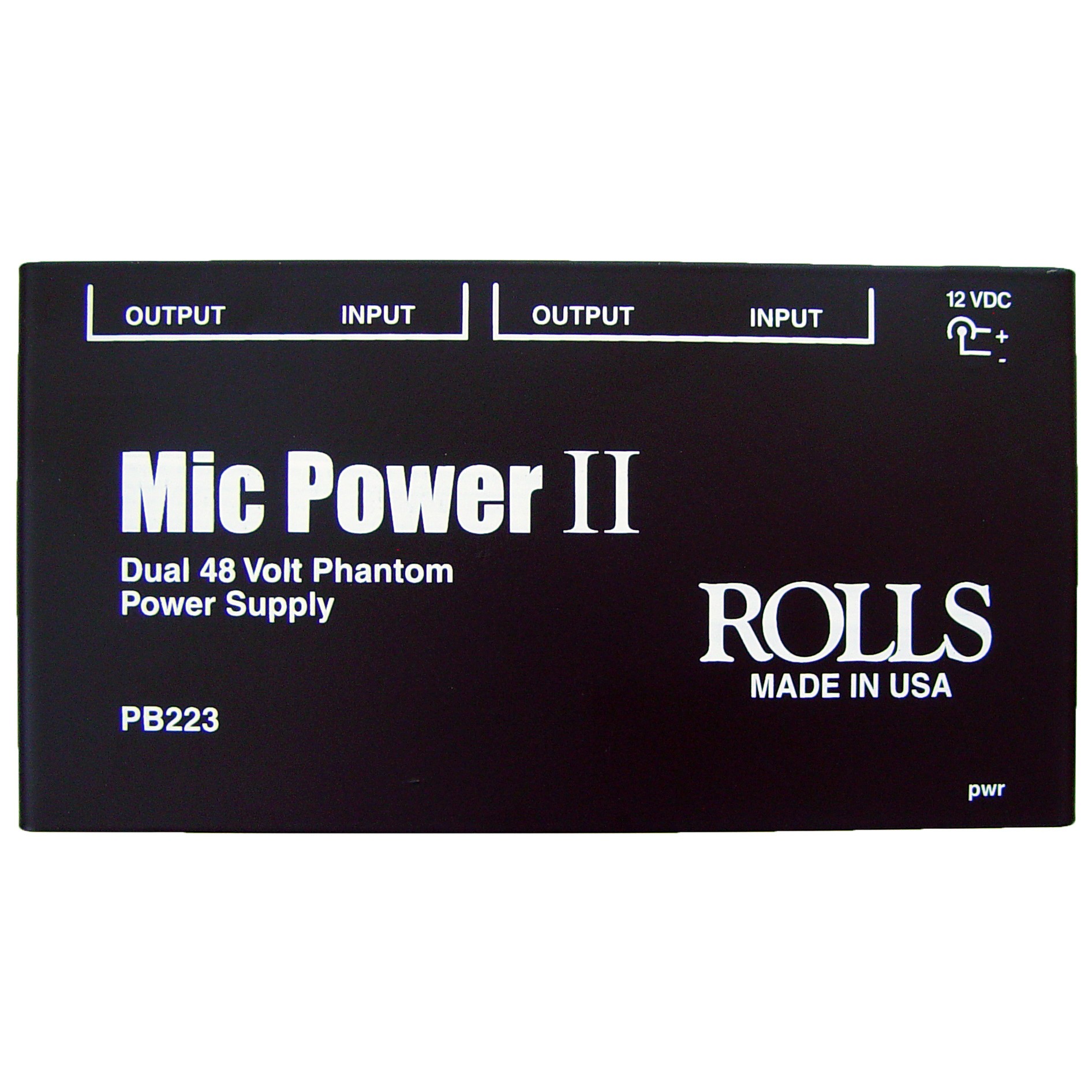

The Rolls PB223 is for powering phantom powered microphones with either 12 or 48 VDC. The unit uses a 100kHz switching power supply to eliminate noise generated by common power supplies and has a pull-down resistors so it will work with any mixer.

Description

The Rolls PB223 is for powering phantom powered microphones with 48VDC. Since the unit uses a 100KHz switching power supply there is no audio noise generated. The PB223 has output pull down resistors so it will work with any mixer. The PB223 is identical to the PB23, except it powers two microphones rather than one.

Features
  • Utilizes a switching regulator for stable voltage performance
  • Power condenser microphones requiring phantom power
  • Operates on the included Rolls PS27 12VDC adapter
  • High frequency switching power supply to eliminate noise

Specifications
Phantom Voltage 48V

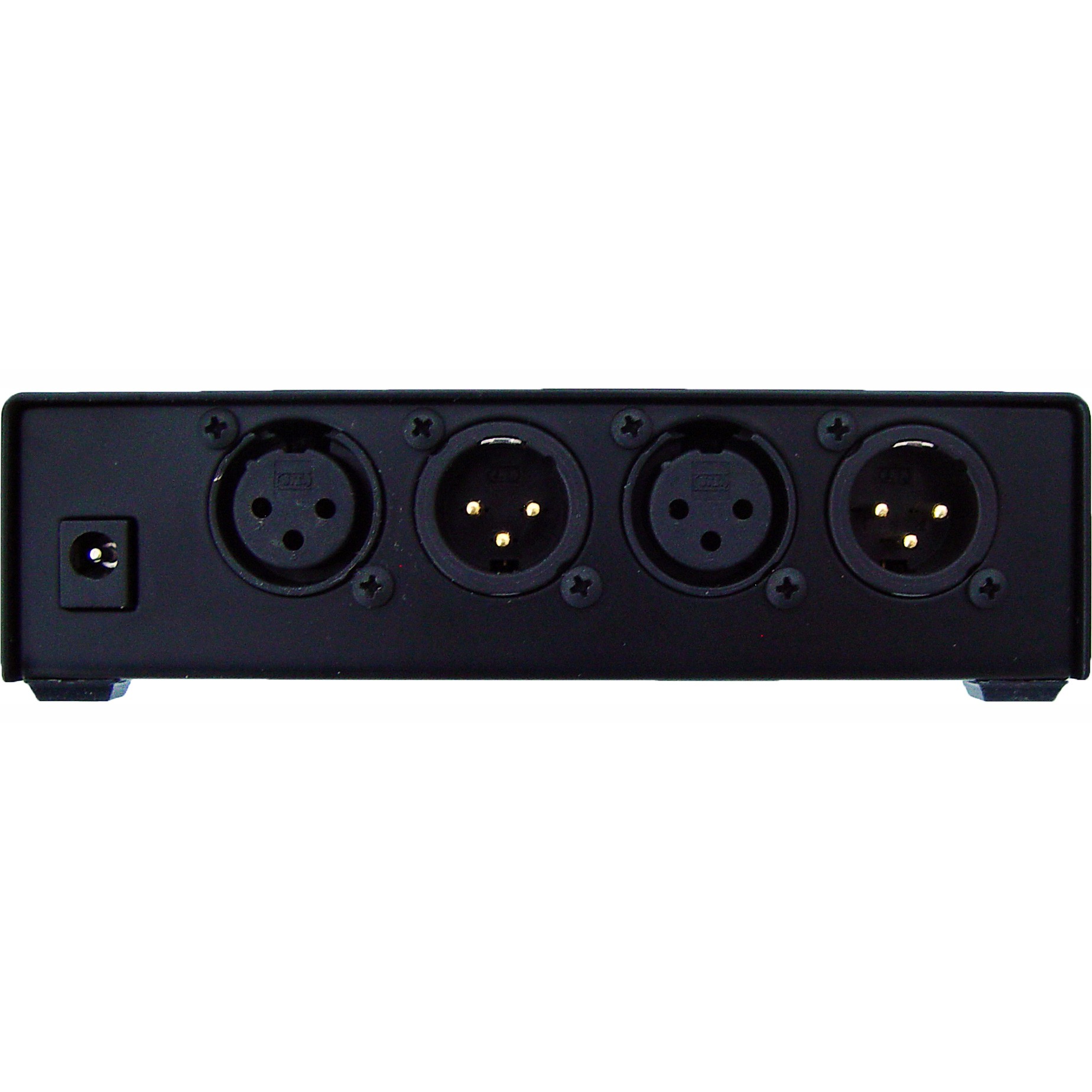

Connectors 2: Male XLR, 2: Female XLR, 1: 5mm DC input jack
Power Input 12 - 18 VCD (Rolls PS27)
Current drain 40ma nominal one mic 15vdc
Dimensions(H x W x D) 5.45" (13.84 cm) x 2.875" (7.3 cm) x 2.25" (6.35 cm)
Weight 2 lbs (0.91 Kg)

Related Products

Rolls PB23 Phantom Power Adapter Rolls PB23 Phantom Power Adapter

Rolls PB23 Phantom Power Adapter

The Rolls PB23 is for powering a phantom powered microphone with either 12 or 48 VDC. The unit uses a 100kHz switching power supply to eliminate noise generated by common power supplies and has a...
MSRP: $89.00
$69.00

Usually arrives in 5-9 business days.

MSRP: $89.00
$69.00
Add to Cart The item has been added
Sold Out

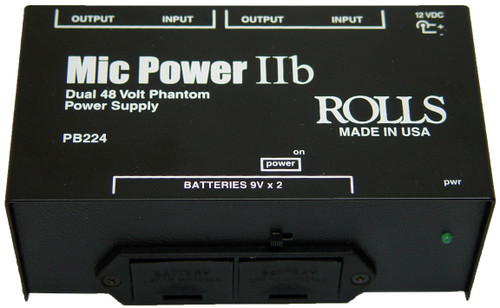

Rolls PB224 Dual Phantom Portable Power Supply (Discontinued)
