The Samson AirLine 99m AH9 Fitness Headset system is a unique wireless microphone solution with a water/sweat-resistant Qe headset microphone designed to meet the specific demands of fitness instructors and other active performers.

Description

Samson AirLine 99m AH9 Fitness Headset System with Water/Sweat-Resistant Qe Headset Microphone

Micro Wireless Design, Macro Wireless Performance

The Samson AirLine 99m AH9 Fitness Headset System is a unique wireless microphone solution designed to meet the specific demands of fitness instructors and other active performers. Along with a water/sweat-resistant Qe headset microphone, this frequency-agile UHF wireless system combines the AH9 micro transmitter and AR99m micro receiver for a highly portable, rechargeable setup that offers high-definition sound completely free of cables and beltpacks.

AH9 Micro Transmitter

While Samson revolutionized wireless with the original AirLine transmitter, the AH9 is the exciting next chapter in the story. Thanks to its compact design, the AH9 transmitter mounts directly onto the included Qe headset, completely eliminating beltpacks and cables from the setup, making it ideal for active performers. In addition to a 300-foot operating range, the AH9 offers easily accessible gain and mute controls, a battery life LED indicator, and an 8-hour rechargeable lithium-ion battery.

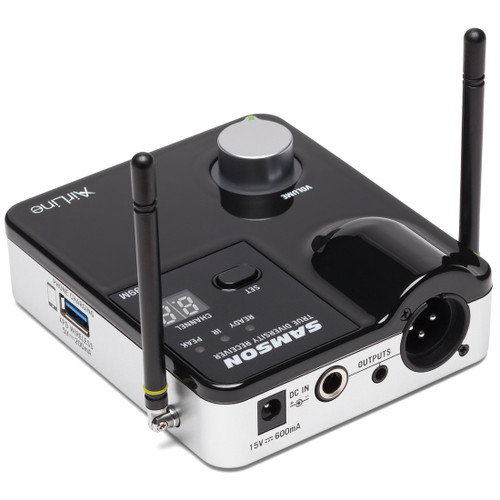

AR99m Micro Receiver

Offering frequency-agile UHF operation, the compact True RF Diversity AR99m receiver provides 100 available channels for reliable wireless performance. The receiver offers easy setup with one-touch scanning that analyzes and selects the clearest operating channel, infrared synchronization to pair the transmitter with the receiver, and versatile output connections (XLR, 1/4", and 1/8"). A USB port on the AR99m receiver can be used to charge the AH9 transmitter or integrate a Samson XPD Series wireless system (sold separately) for dual-receiver functionality.

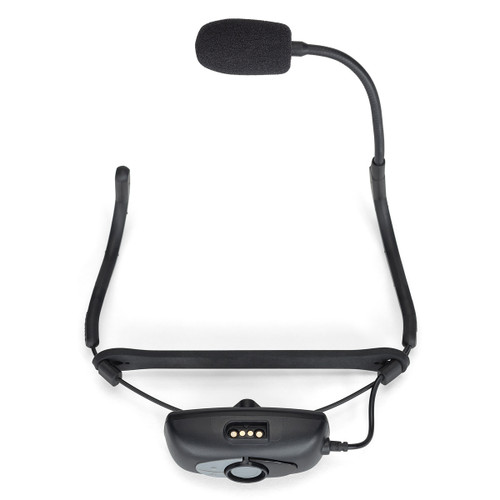

Qe Headset Microphone

The AirLine 99m AH9 Fitness Headset System includes a Qe headset microphone specifically designed for fitness instructors and high-energy performers. The Qe features a lightweight, double-ear headset design with an adjustable, removable strap for a secure and comfortable fit. At the end of an adjustable stainless steel gooseneck sits the condenser microphone, whose water/sweat-resistant capsule helps prevent corrosion from prolonged exposure to moisture in demanding fitness environments. With a bidirectional pickup pattern, the Qe condenser microphone captures clear, detailed audio while reducing background noise, minimizing feedback, and rejecting unwanted sound from outside its primary pickup area.

Features

AirLine 99m AH9 Fitness Headset Wireless System

  • Frequency-agile UHF wireless system
  • 100 operating channels across 24 MHz bandwidth
  • Up to 8 simultaneous systems per frequency band (region dependent)

AH9 Wireless Micro Transmitter

  • Micro transmitter mounts directly to a double-ear headset with no beltpack or cable required
  • Water/sweat-resistant Qe headset microphone with condenser capsule
  • Up to 8 hours of battery life with built-in rechargeable lithium-ion battery
  • Sealed gold-contact charging connector
  • Low-battery LED indicator
  • Up to 300-foot operating range (line-of-sight)
  • Variable gain control
  • One-touch mute function
  • Four windscreens included

AR99m Wireless Micro Receiver

  • True RF Diversity micro receiver design minimizes signal dropouts
  • Set button scans and selects optimal operating channels
  • Infrared synchronization matches transmitter and receiver frequencies
  • Tone key prevents unwanted noise when the transmitter is off or out of range
  • Channel and Ready/IR/Peak LED indicators

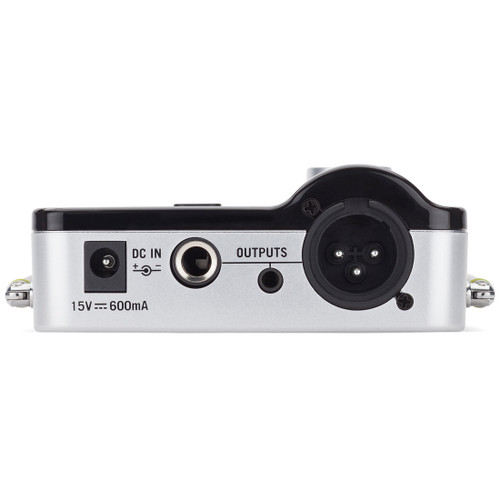

  • Balanced XLR, unbalanced 1/4", and unbalanced 1/8" audio outputs
  • USB port supports a Samson XPD Series wireless system, AH9 transmitter charging, or phone charging
  • Rotary volume control with integrated power switch
  • 1/4-wave antennas

Specifications

Working Range 300' (100 m) line of sight
Audio Frequency Response 50 Hz - 15 kHz
T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range >100 dB A-weighted
Signal to Noise >95 dB
Tone Key Frequency 35 kHz
Input Gain Range 20 dB
RF Power 10 mW EIRP
Receiver Sensitivity 100 dBm/30 dB SINAD
Image Rejection >50 dB
Audio Output Level 1/8" (3.5 mm) & 1/4" (6.3 mm) jack (unbalanced): +14 dBu
XLR jack (balanced): +9 dBu
Audio Output Impedance 1/8" (3.5 mm) & 1/4" (6.3 mm) jack (unbalanced): 810 Ohms
XLR output jack (balanced): 240 Ohms
Battery Life 8 hours
Power Requirements 3.6 V 500 mAh
Lithium Ion rechargeable battery
Operating Voltage 15 VCC 600 mA
Transmitter Dimensions 5.9" (150 mm) x 6.7" (170 mm) x 3.9" (100 mm)
Receiver Dimensions (L x W x H) 4.3" (110 mm) x 3.74" (95 mm) x 1.5" (39 mm)
Transmitter Weight 0.13 lbs (0.06 kg)
Receiver Weight 0.42 lbs (0.19 kg)
