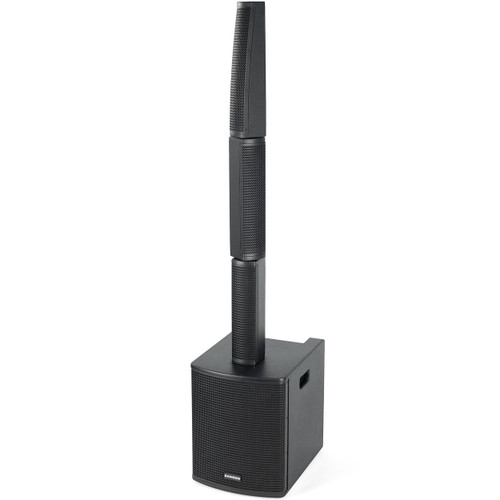

Samson Resound VX8.1 All-In-One Portable Column Array System with 12" Subwoofer and Bluetooth Wireless

Part #:
SAVX812
Model #:
Resound VX8.1
MSRP: $1,389.03
$999.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Samson Resound VX8.1 is a portable column array system that delivers premium sound in a sleek, easy-to-transport package, perfect for mobile DJs, bands, singer-songwriters or anywhere high-quality sound reinforcement is needed. This active 700-watt system includes a 12" subwoofer with a 3-channel mixer and eight 3.5" drivers arranged in a vertical column array that provides 120°–200° of horizontal coverage.

Description

Samson Resound VX8.1 Portable Bluetooth Column Array PA System with 12" Subwoofer
for Live Performance, Music Education, Fitness, DJ, Karaoke and House of Worship Applications

Spread Your Sound Around

The Samson Resound VX8.1 is a portable column array system that delivers premium sound in a sleek, easy-to-transport package, perfect for mobile DJs, bands, singer-songwriters or anywhere high-quality sound reinforcement is needed. This active 700-watt system includes a 12" subwoofer with a 3-channel mixer and eight 3.5" drivers arranged in a vertical column array that provides 120°–200° of horizontal coverage.

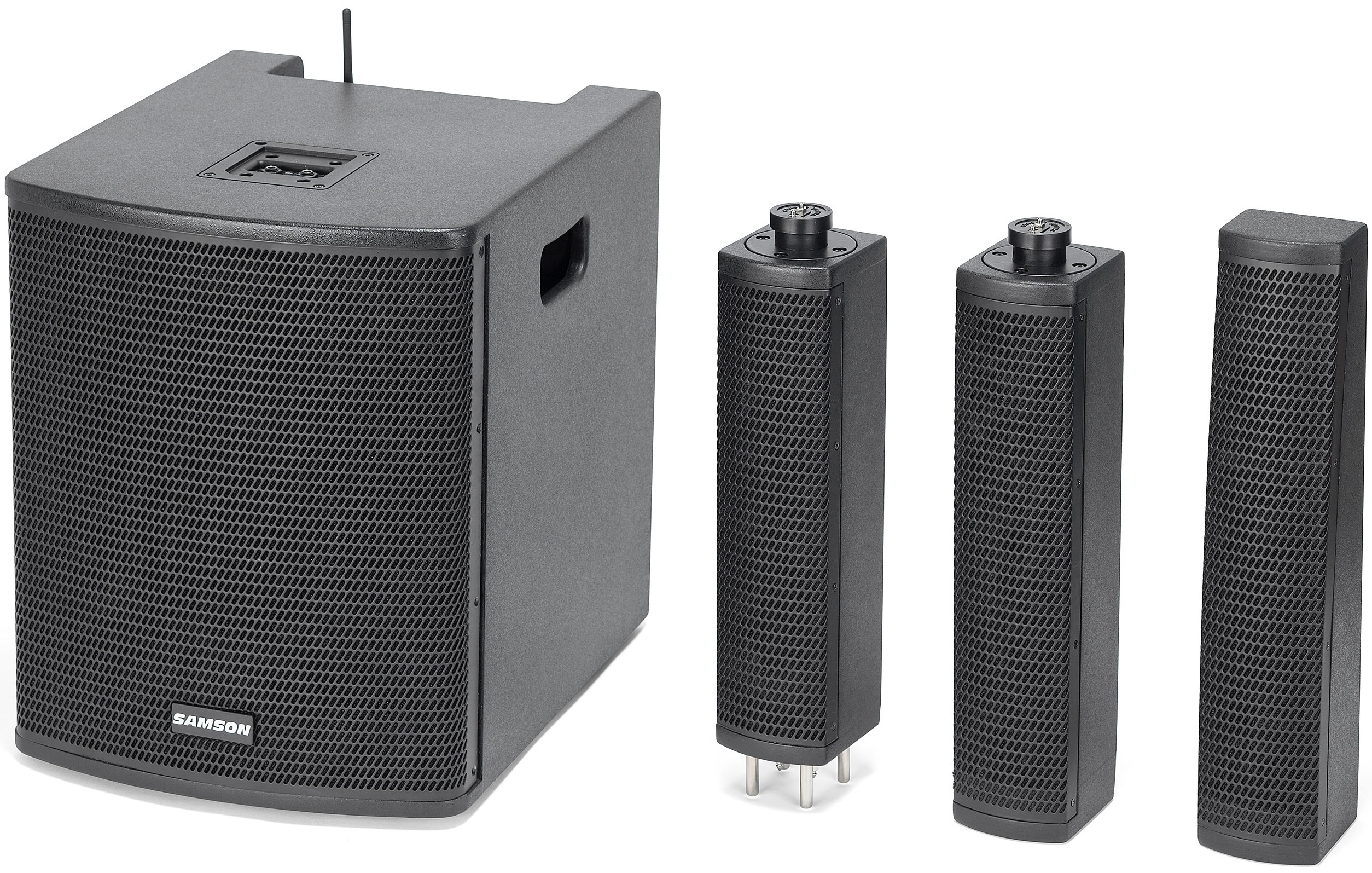

samson resound vx8.1 column array system

Column Coverage

Eight 3.5" drivers are arranged in an interlocking, 2-segment column array, coupled (via an extension segment) with a 12" subwoofer that can produce up to 130dB SPL. To ensure sound is delivered across an entire audience, the VX8.1 provides a horizontal coverage angle of 120° with the full array in center position, as well as 200° with the two array segments rotated 45° in opposite directions. Meanwhile, the system's subwoofer delivers tight low end down to 40Hz.

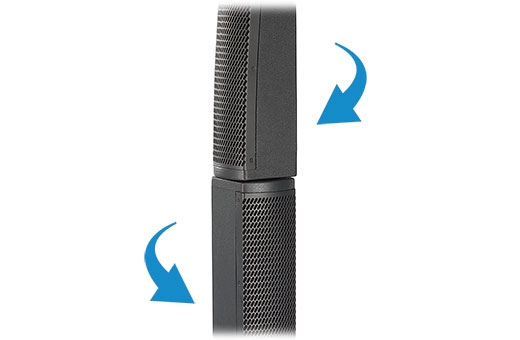

samson resound vx8.1 portable pa system

Power and Connection

Featuring a lightweight Class D amplifier that delivers 700 watts of power to the system (350W Sub / 350W Array), not to mention onboard 4-preset (Music, Live, Speech, DJ) DSP processing, the VX8.1 has what it takes to fill large rooms with stunning sound. Its 3-channel mixer includes connections for microphones, instruments and line devices. Also, backing tracks or music playback can be conveniently streamed via Bluetooth® from any mobile device.

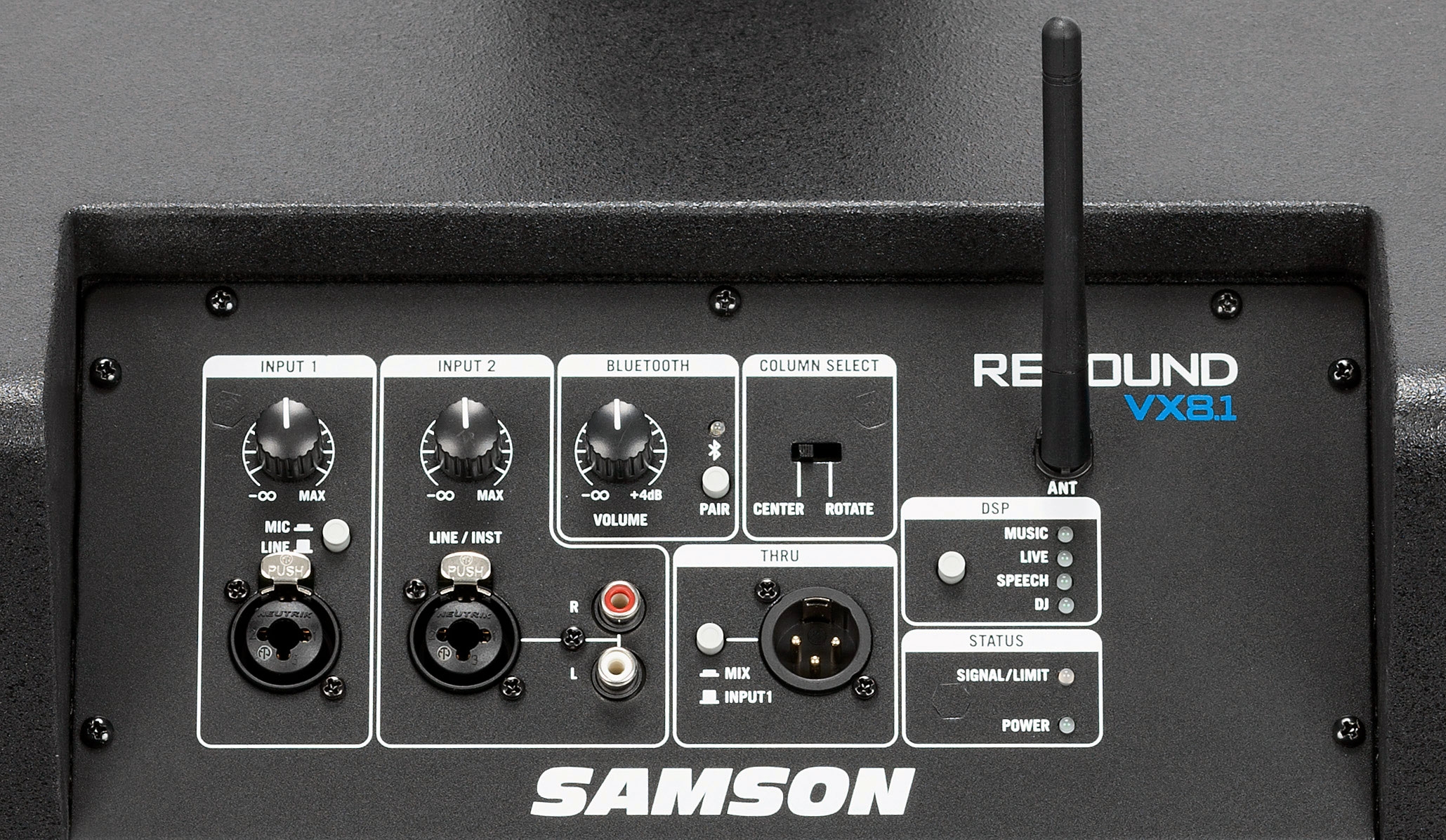

samson bluetooth wireless pa system

Gig Ready

Constructed of solid plywood with textured paint and steel grilles, the VX8.1 is durable to handle from gig to gig. In addition, the system's interlocking components make setup a breeze, with no need for cables or stands. Plus, a Thru output enables the ability to integrate a second VX8.1 system and further expand your sound.

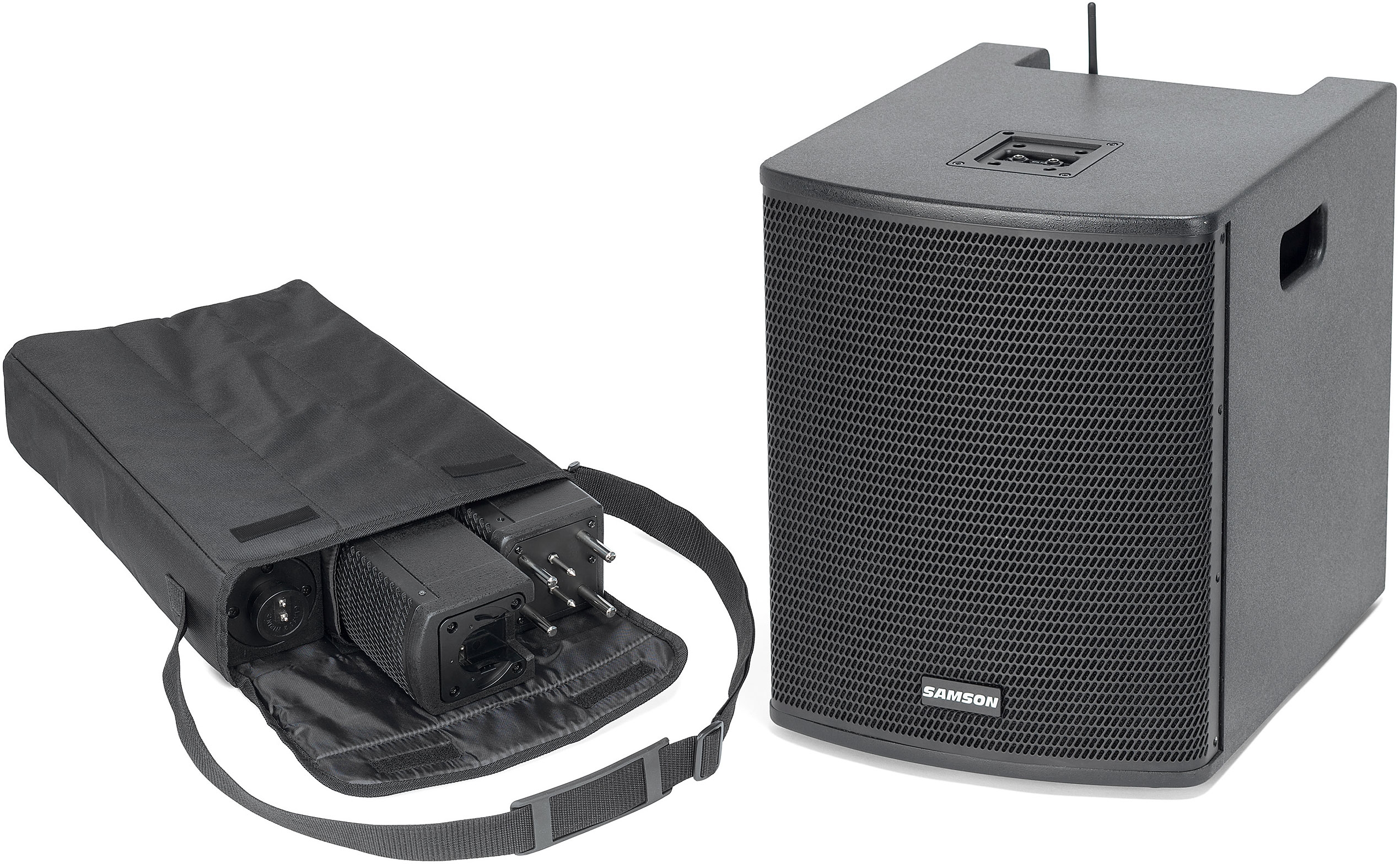

samson pa system for live performance

Features

  • All-in-one portable column array system that weighs 67lb
  • Class D amplifier produces 700 watts of power (350W Sub / 350W Array)
  • 12" active subwoofer
  • Eight 3.5" full-range drivers in a 2-segment vertical column
  • Full system frequency response of 40Hz–20kHz (-3dB)
  • Horizontal coverage of 120° (full center) to 200° (45° L/R array rotation)
  • Included extension segment connects subwoofer and array column
  • Interlocking components for easy setup
  • Top-mounted 3-channel mixer (on subwoofer)
  • 4-preset DSP processing (Music, Live, Speech, DJ)
  • Channel 1: XLR-1/4" combo selectable mic/line input for microphones and line level devices
  • Channel 2: XLR-1/4" combo line/instrument input for line level devices and instruments + stereo RCA input
  • Channel 3: Bluetooth connectivity to connect wireless music sources
  • Independent volume controls on each channel
  • Column Select (Center/Rotate) EQ switch
  • Thru (Mix/Channel 1 selectable) output to daisy-chain multiple systems together
  • Signal/Limit and Power LED indicators
  • 3-point electronic protection circuitry with temperature-controlled fan
  • Solid plywood enclosures with textured paint, steel grilles and side carry handles

Specifications

Amplifier Class D
System Output Power 700 watts (350W Sub / 350W Array)
System Frequency Response 40Hz–20kHz (-3dB)
System Max. SPL 130dB
Subwoofer 12" active
Satellite Speakers 8x 3.5" passive (in 2-segment column)
Horizontal Coverage 120° (center), 200° (45° L/R rotation)
Inputs XLR-1⁄4" combo Mic/Line, XLR-1⁄4" combo Line/Instrument, RCA
Outputs XLR Thru (Mix/Channel 1)
Level Controls Channels 1–2, Bluetooth
DSP 4 presets (Music, Live, Speech, DJ)
EQ Column Select (Center/Rotate) switch
Dynamics Control Reverb, Voiceover (switch)
Bluetooth Bluetooth 4.0, A2DP
Construction Plywood, textured paint, steel grille, integrated handles, interlocking design
Additional Extension segment
Dimensions (H x W x D) (assembled) 72.5" (1842 mm) x 14.9" (379 mm) x 18.6" (472 mm)
Weight 67 lbs (30.4 kg)
