Sennheiser EW 100 G3 LE Wireless Headset Microphone System with Audio-Technica Headworn Microphone (Discontinued)

Part #:
EW100G3AT9
Model #:
EW-100 G3 AT9
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

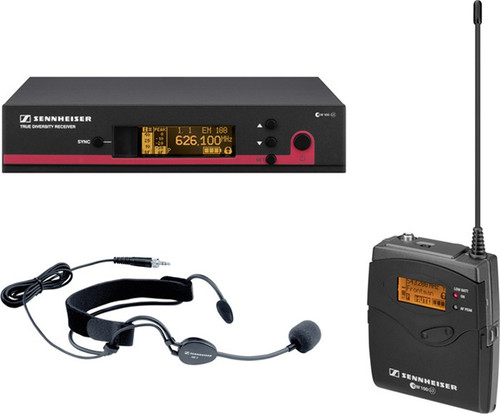

The Sennheiser ew 100 G3 LE Wireless Headset Microphone System is perfect for Conference Rooms, Churches, and Theaters. The system has 20 frequency banks and 12 preset frequencies allowing multiple channels of G3 wireless to run simultaneously.

Description

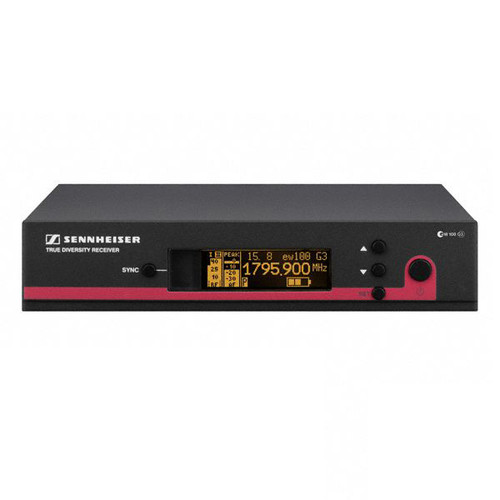

The Sennheiser EM 100 G3 Wireless Microphone Receiver is a rugged rack receiver that utilizes true diversity for optimum reception. 42 MHz bandwidth with 1680 tunable UHF frequencies. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank.

With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

The Sennheiser SK 100 G3 is a Wireless Microphone Transmitter that is lightweight and compact.  It also has a User-friendly menu operation and backlit graphic display and a ruggeed metal housing.

The wireless body-pack standard gets even better. Sennheiser has packed many useful features in the 158g weight of the SK 100 G3. The SK 100 G3 has an easy-to-read graphic display, infrared sync, charging contacts, cable emulation, RF mute, an intuitive menu and much more. As features alone are no substitute for audio quality, the AF frequency response was expanded to 25-18,000 Hz for the truest sound.

The Audio-Technica BP892cLM3-TH is a MicroSet Headworn Microphone with BP892 Subminiature Omnidirectional Condenser Headworn Microphone, less power module. 1.4 m (55") permanently attached miniature cable terminated for Sennheiser® wireless systems using locking 3.5 mm connector. Includes AT8440 cable clip, AT8464-TH dual-ear microphone mount, two AT8157-TH windscreens, two AT8156-TH element covers, a moisture guard, and a carrying case. See BP892c-TH for specifications.

Features

Sennheiser EM 100 G3 Receiver:

  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Receiver features transmitter battery indicatation in 4 steps
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Wide range of accessories adapts the system to any requirement

Sennheiser SK 100 G3 Transmitter:

  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter features battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Audio-Technica BP892cLM3-TH MicroSet:

  • Handles high sound pressure levels with ease
  • Extremely intelligible natural audio
  • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
  • Ergonomic under-ear design—flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses
  • Comes equipped with AT8464-TH Dual-Ear Microphone Mount that converts single ear-worn MicroSet to a dual-ear-worn unit for maximum stability and comfort

Specifications

EM 100 G3 Receiver
RF frequency range 516 - 865 MHz
Transmission/receiving frequencies 1,680
Presets 12
Switching bandwidth 42 MHz
Peak deviation ± 48 kHz
Compander HDX
Frequency response (microphone) 25 - 18,000 Hz
Signal-to-noise-ratio > 110 dB(A)
Total harmonic distortion (THD) < 0.9%
In compliance with: ETS 300422, ETS 300445, CE, FCC
Antenna connector 2 BNC, 50 Ohms
XLR connector XLR / 6.3 mm
Audio output level (balanced) XLR: +18 dBu max
Audio output level (unbalanced) Jack: +12 dBu max
Dimensions (H x W x D) 8.3" (212 mm) x 8" (202 mm) x 1.7" (43 mm)
Weight 2 lbs. (900 g)
SK 100 G3 Transmitter
RF frequency range 516 - 865 MHz
Switching bandwidth 42 MHz
Peak deviation ±48 kHz
Compander HDX
Frequency response (microphone) 80 - 18,000 Hz
Signal-to-noise-ratio >110 dB(A)
Total harmonic distortion (THD)
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Audio-XLR connector 3.5 mm jack
RF output power 30 mW
Operating time (transmitter) >8 h
Input voltage range 1.8 V line
Dimensions (H x W x D) 3.2" (82 mm) x 2.5" (64 mm) x 0.9" (24 mm)
Weight 0.35 lbs (160 g)
BP892cLM3-TH MicroSet
Element Fixed-charge back plate, permanently polarized condenser
Polar pattern Omnidirectional
Frequency response 20-20,000 Hz
Low frequency roll-off 80 Hz, 18 dB/octave (wired only)
Open circuit sensitivity –49 dB (3.5 mV) re 1V at 1 Pa
Impedance 250 ohms (wired only)
Maximum input sound level 135 dB SPL, 1 kHz at 3% T.H.D.
Dynamic range (typical) 104 dB, 1 kHz at Max SPL (wired only)
Signal-to-noise ratio 63 dB, 1 kHz at 1 Pa
Phantom power requirements 11-52V DC, 2 mA typical (wired only)
Current consumption 0.1 mA typical at 5V (wireless only)
Voltage range 2.5-11V (wireless only)
Switch Flat, roll-off (wired only)
Microphone Dimensions (L x D) 0.32" (8.1 mm) x 0.10" (2.6 mm)
Boom Dimensions (L x D) 3.87" (98.4 mm) x 0.04" (1.07 mm)
Weight 0.09 oz (2.6 g)

System Includes

  • (1) Sennheiser EM-100 G3 Rackmount Receiver
  • (1) Sennheiser SK-100 G3 Body Pack
  • (1) Audio-Technica BP892cLM3-TH Headworn Microphone
