Sennheiser EW 122 G3 Wireless Lavalier Microphone System (Discontinued)
Part # EW 122 G3
Model # EW 122 G3
The Sennheiser EW 122 G3 Wireless Lavalier Microphone System is a high-quality presentation set that is discrete and easy on the voice. Need a Rackmount Kit? Select the Sennheiser ew 122 G3 Wireless System with Rackmount Kit.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Sennheiser EW 122 G3 Wireless Lavalier Microphone System is a high-quality presentation set featuring the ME 4 cardioid clip-on microphone for prominent voice reproduction free of background noise, EM 100 G3 true diversity receiver, SK 100 G3 bodypack transmitter.

Discrete and easy on the voice: the compact cardioid clip-on microphone in this system rejects noises coming from the side which means less risk of feedback. Without having to speak very loudly, the presenter's voice is delivered in a rich and full manner. The bodypack transmitter features charging contacts for the optional rechargeable battery. Sync up the bodypack to the receiver wirelessly with the new wireless sync. Lastly, the true diversity receiver provides for reliable signal transmission, even in large rooms.

With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

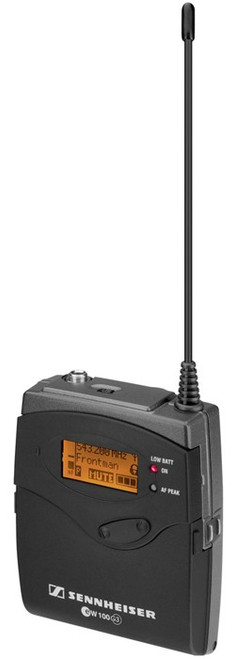

The wireless body-pack standard gets even better. Sennheiser has packed many useful features in the 158g weight of the SK 100 G3. The SK 100 G3 has an easy-to-read graphic display, infrared sync, charging contacts, cable emulation, RF mute, an intuitive menu and much more. As features alone are no substitute for audio quality, the AF frequency response was expanded to 25-18,000 Hz for the truest sound.

Portable components always work easiest when you do not have to think about them. This was the basis on which the EK 100 G3 was developed. Its adaptive-diversity technology provides excellent reception at all times. This receiver is designed to securely attach to a camera’s shoe using a clamp mount.

The ME 4 is a sub-miniature clip-on lavalier microphone which is suitable for speech applications in noisy environment. Itis equipped with a cardioid capsule and has therefore a high feedback rejection.
Features

Features

  • Sturdy metal housing (transmitter and receiver
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement
Specification
Frequency response (microphone)25 - 18,000 Hz
CompanderHDX
Audio-XLR connector6.3 mm
Presets20
Microphoneelectret
Sound pressure level (SPL)120 dB(SPL) max.
THD, total harmonic distortion< 0.9%
AF sensitivity40 mV/Pa
Signal-to-noise ratio> 110 dB(A)
RF frequency range516 - 865 MHz
RF frequency range516 - 865 MHz
RF output power30 mW
Transmission/receiving frequencies1680
Switching bandwidth42 MHz
Peak deviation+/- 48 kHz
In compliance withETS 300422 , ETS 300445 , CE , FCC
Antenna connector2 BNC, 50 Ohm
Input voltage range1.8 V line
Audio output level (balanced)XLR: +18 dBu max
Audio output level (unbalanced)Jack: +12 dBu max
Battery Specification2 x 1.5V AA
Operating time (transmitter)>8 h
Dimensions
(H x W x D)
Transmitter3.2" (82 mm) x 2.5" (64 mm) x 0.9" (24 mm)
Receiver8.3" (212 mm) x 8" (202 mm) x 1.7" (43 mm)
Weight
Transmitter0.35 lbs (160 g)
Receiver2 lbs. (900 g)
In the Box

In the Box

  • (1) EM 100 G3 rack-mount receiver
  • (1) SK 100 G3 bodypack transmitter
  • (1) ME 4 clip-on microphone (cardioid)
  • (1) NT 2 power supply unit
  • (2) antennas
  • (2) stacking elements
  • (2) AA batteries
  • Operating instructions
