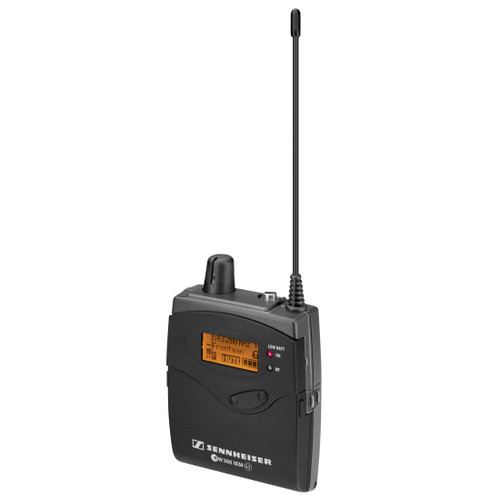

Sennheiser ew 300 IEM G3 Wireless Monitoring System (Discontinued)

Part #:
EW 300 IEM G3
Model #:
EW 300 IEM G3
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Sennheiser ew 300 IEM G3 Wireless Monitoring System is an In-ear monitoring set featuring ear-canal phones with various ear-fitting pads, bodypack transmitter with integrated 5-band equalizer, adaptive diversity receiver for high reception quality.

Description

The Sennheiser ew 300 IEM G3 Wireless Monitoring System is an In-ear monitoring set: ear-canal phones with various ear-fitting pads, bodypack transmitter with integrated 5-band equalizer, adaptive diversity receiver for high reception quality. Remote-controllable via "Wireless Systems Manager".

Hear better, perform better. Sennheiser monitoring systems are trusted by professionals worldwide and now are better than ever. Featuring an adaptive-diversity receiver, the receiver pack uses the headphone cable as a secondary antenna for flawless reception. Ear-canal phones, with various ear-fitting pads for an individual fit, reproduce the signal from the adaptive diversity receiver precisely and faithfully. Pass-through outputs allow easy splitting of the input signal to travel to other devices. The 5 band equalizer integrated in the transmitter also allows you to personalize the sound even further. Lastly, the entire set can be monitored and remotely controlled with Sennheiser's "Wireless Systems Manager" software due to the built-in Ethernet port on the stereo transmitter.

Features

  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 16 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • Adaptive diversity for high reception quality
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of receiver parameter from transmitter
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Receiver features battery indicatation in 4 steps
  • HiBoost, adjustable limiter, stereo/focus mode, balance
  • Contacts for recharging BA 2015 accupack directly in the receiver
  • Wide range of accessories adapts the system to any requirement
  • Integrated 5-band graphic Equalizer

Specifications

Compander HDX
Audio-XLR Connector 2x XLR - 3 jack
Presets 16
Frequency Response 25 - 15,000 Hz
Total Harmonic Distortion (THD)
Signal-to-Noise-Ratio >90 dB(A)
RF Frequency Range 516 - 865 MHz
RF Output Power 10/30 mW
Transmission/Receiving Frequencies 1680
Switching Bandwidth 42 MHz
Peak Deviation ±48 kHz
In Compliance with ETS 300422, ETS 300445, CE, FCC
Operating Time 4-6 h
Modulation FM, MPX-Stereo
Antenna Connector BNC
Headphone Connector >100 mW (32 Ohm)
Input Voltage Range +22 dBu max
Audio Output Power 100 mW (32 Ohm)
Operating Voltage (Stand Alone) 2 x 1.5V AA
Transmitter Dimensions (H x W x D) 8.35" (212 mm) x 7.95" (202 mm) x 1.69" (43 mm)
Receiver Dimensions (H x W x D) 3.23" (82 mm) x 2.52" (64 mm) x 0.94" (24 mm)
Transmitter Weight 2.43 lbs (1100 g)
Receiver Weight ~0.35 lbs (160 g)

In the Box

  • (1) SR 300 G3 Stereo Transmitter
  • (1) EK 300 G3 Stereo Diversity Receiver
  • (1) IE 4 Earphones
  • (1) GA 3 Rack Mount
  • (1) NT 2 Power Supply Unit
  • (1) Antenna
  • (2) AA Size Batteries
  • Operating Instructions
