Sennheiser ew 572 G3 Wireless Instrument System with Bodypack Transmitter

Home /
Sennheiser ew 572 G3 Wireless Instrument System with Bodypack Transmitter (Discontinued)

Description

Details

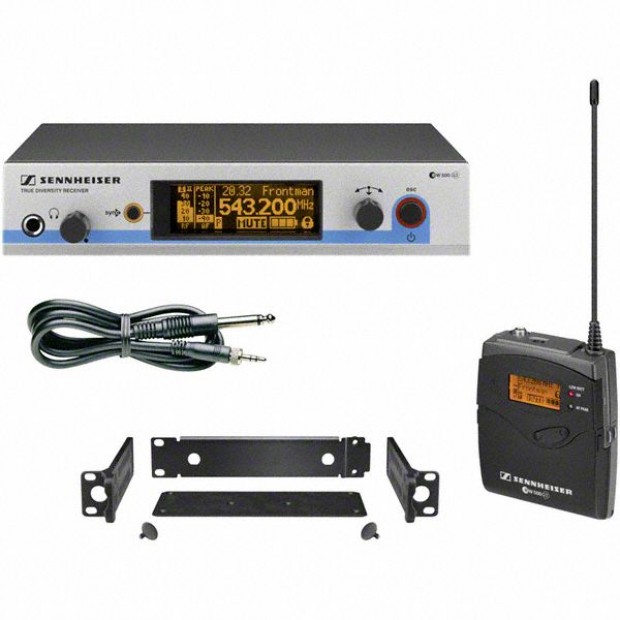

The Senneheiser ew 572 G3 is a wireless instrument set with cable emulator and silent configuration modus: EM 500 G3 true diversity receiver, SK 500 G3 bodypack transmitter, and CI 1 instrument cable. It is remote-controllable via a "Wireless Systems Manager".

You have worked hard to achieve your signature tone, Sennheiser ew 572 G3 lets you keep that tone while clearing the stage of cables. Guitarists and bass guitarists will enjoy the features of this system even before they play a single note. In addition to automatic wireless setup via the enhanced sync function, the components can programmed without transmitting RF (silent configuration mode). The set also is equipped with soundcheck mode, which allows the signal strength and the RF and audio levels to be checked continuously on the large front panel display. An enhanced AF frequency response that starts at 25 Hz will satisfy even the most discriminating 5-string bass players. An integrated 5-band equalizer, guitar tuner, and a guitar cable virtual length emulator complete this feature-rich set.

Features

Features

Sturdy metal housing (transmitter and receiver)
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 32 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitter parameter from receiver
User-friendly menu operation with more control options
Illuminated graphic display, receiver also shows transmitter settings
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter feature battery indicatation in 4 steps, also shown on receiver display
Programmable Mute function
Integrated Equalizer, Soundcheck mode and guitar tuner
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement

Specification

Microphone Frequency Response	25 - 18000 Hz
Compander	HDX
Audio-XLR Connector	6,3 mm
Presets	32
THD	< 0,9 %
Signal-to-Noise Ratio	> 115 dB(A)
RF Frequency Range	516...865 MHz
RF Output Power	10/30 mW
Transmission/Receiving Frequencies	1680
Switching Bandwidth	42 MHz
Peak Deviation	+/- 48 kHz
In Compliance With	ETS 300422, ETS 300445, CE, FCC
Transmitter Operating Time	> 8 h
Antenna Connector	2 BNC, 50 Ω
Input Voltage Range Max.	3,0 V eff line
Audio Output Level (Balanced)	XLR : +18 dBu max
Audio Output Level (Unbalanced)	Jack : +12 dBu max
Receiver Dimensions	1.69" (43 mm) x 8.34" (212 mm) x 7.95" (202 mm)
Transmitter Dimensions	0.94" (24 mm) x 2.52" (64 mm) x 3.22" (82 mm)
Receiver Weight	2.16 lbs (0.98 kg)
Transmitter Weight	0.35 lbs (0.16 kg)
