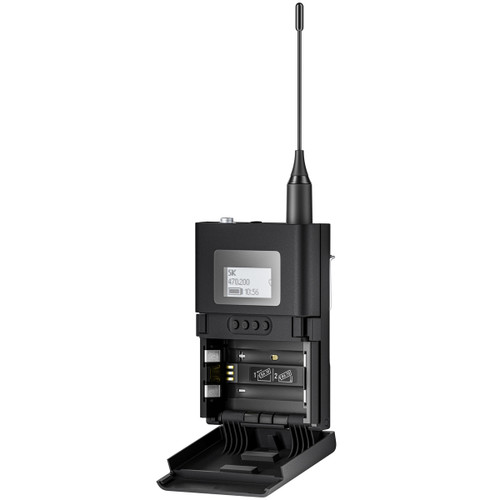

The EW-DX SK is a digital bodypack wireless RF transmitter compatible with EW-DX wireless receivers. Lightweight and comfortable for performers and presenters to wear, the bodypack features a rugged, all-metal housing well suited for daily use in conference rooms, houses of worship, or on stage.
The EW-DX SK is equipped with a locking 3.5 mm TRS connector that accommodates the compatible lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a remarkable 134 dB dynamic range on its input, the transmitter can handle a wide variety of sound sources, including loud vocalists and performers, connections to musical instruments, and even line-level signals from mixers, all without requiring any gain adjustment.
| Input Voltage | 2.0 - 4.35 V |
|---|---|
| Input Current | < 300 mA |
| Power Supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied Bandwidth | 200 kHz |
| Transmit Power (Radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
| Dimensions (H x W x D) | 3.35" (85 mm) x 2.5" (63.5 mm) x 0.79" (20 mm) |
| Weight | 0.26 lbs (0.12 kg) |
