Sennheiser EW-DX SK / SKM-S Base Set Dual Digital Wireless Microphone System with Bodypack and Handheld Transmitter - No Mics

Part #:
509462
Model #:
EW-DX SK / SKM-S Base Set
MSRP: $2,549.00
$2,149.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Sennheiser EW-DX SK / SKM-S Base Set is a dual-channel digital UHF wireless microphone system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality.

Description

Sennheiser EW-DX SK / SKM-S Base Set Dual Wireless System with Bodypack and Handheld Transmitter

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX SK-SKM-S BASE SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a 1/2-rack, dual-channel receiver, one bodypack transmitter without a lavalier, and one handheld transmitter without a mic capsule—so you can choose your preferred lav mic and mic capsule for the application.

With a remarkable 134 dB dynamic range, the transmitters can handle just about any input level you throw at them. The wide 16 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.

Features

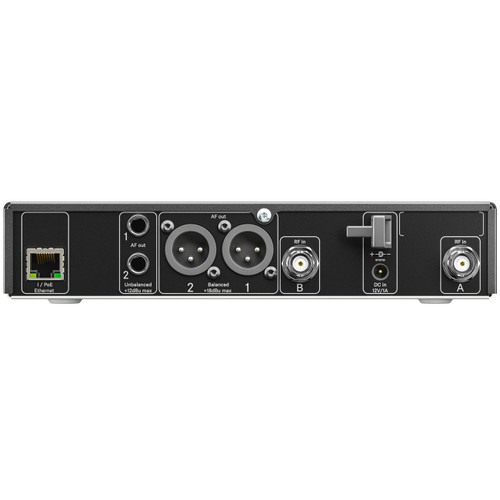

EW-DX EM 2 Receiver:

  • 2 channel half rack (9.5')
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing

EW-DX SKM-S Handheld Mic:

  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
  • Metal housing

EW-DX SK Bodypack Transmitter:

  • 3.5 mm jack or 3-pin connector variants
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing

Specifications

Bluetooth® Low Energy (BLE) Frequency Range 2402 - 2480 MHz
Audio Frequency Response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic Range 134 dB
System Latency 1.9 ms

DOCUMENTS

In The Box

  • (1) EW-DX EM 2 Rack Receiver
  • (1) EW-DX SK Bodypack Transmitter
  • (1) EW-DX SKM-S Handheld Transmitter
  • (2) Rod Antennas
  • (1) Power Supply with Country Adapters
  • (1) GA 3 Rackmount Set
  • (4) Rubber Feet
  • (2) BA 70 Rechargeable Battery Packs
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
