Sennheiser EW-DX SKM Wireless Digital Handheld Mic
Sennheiser EW-DX SKM Wireless Digital Handheld Transmitter with MMD 835 Capsule
Sennheiser EW-DX SKM Wireless Digital Handheld Transmitter with MMD 835 Capsule

By Sennheiser

Sennheiser EW-DX SKM Wireless Digital Handheld Transmitter with MMD 835 Capsule

Write a Review
Part #:
509426
Model #:
EW-DX SKM
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

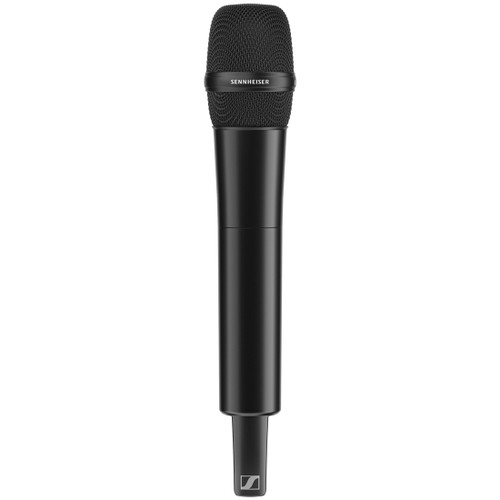

The Sennheiser EW-DX SKM is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers. Well suited for a wide range of professional performance and presentation applications, the transmitter features an MMD 835 dynamic capsule with a cardioid pickup pattern that focuses audio capture on the talent in front of the mic capsule, helping to minimize noise and feedback.

Description

Sennheiser EW-DX SKM Wireless Digital Microphone

The Sennheiser EW-DX SKM is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers. Well suited for a wide range of professional performance and presentation applications, the transmitter features an MMD 835 dynamic capsule with a cardioid pickup pattern that focuses audio capture on the talent in front of the mic capsule, helping to minimize noise and feedback. Lightweight and comfortable for performers and presenters to hold, the transmitter features a rugged, all-metal housing built to withstand daily use on stage.

Features
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
  • Metal housing

Specifications
Bluetooth® Low Energy (BLE) Frequency Range 2402 - 2480 MHz
Audio Frequency Response 20 Hz - 20 kHz (-3 dB)
Audio THD ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic Range 134 dB
System Latency 1.9 ms
Power Supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied Bandwidth 200 kHz
Dimensions (Dia x L) 1.97" (50 mm) x 10.55" (268 mm)
Weight 0.67 lbs (0.30 kg)

DOCUMENTS

In The Box
  • (1) EW-DX SKM Handheld Transmitter
  • (1) MMD 835 Microphone Module
  • (1) MZQ 1 Microphone Clamp
  • (2) Batteries (AA)
  • (1) Pouch
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet

Related Products

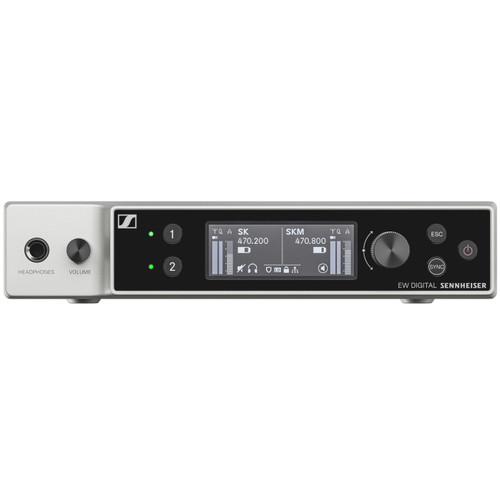

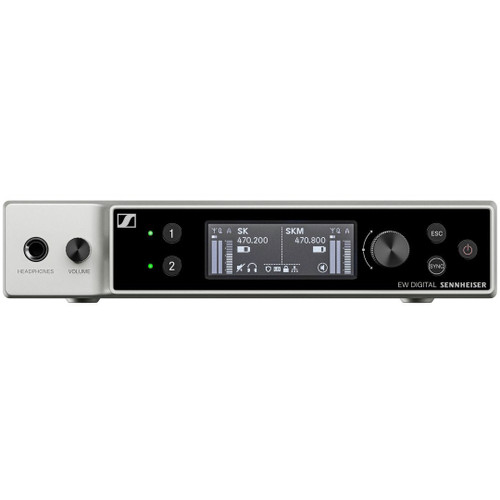

Sennheiser EW-DX EM 2 Rack Receiver Back of Sennheiser EW-DX EM 2 Rack Receiver
