Sennheiser SpeechLine Digital Wireless System with Headset Microphone

By Sennheiser

Sennheiser SpeechLine Digital Wireless System with Headset Microphone

Name: Sennheiser SpeechLine Digital Wireless System with Headset Microphone
Brand: Sennheiser
SKU: SENN-SL HEADMIC SET DW-4-US
Price: 1519 USD
Availability: InStock

Write a Review

Part #:

505904

Model #:

SL HEADMIC SET DW-4-US

Current Stock:

MSRP: $1,799.00

$1,519.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

SpeechLine Digital Wireless is a presentation solution especially dedicated to speech. The digital wireless microphone system is a future-proof solution that’s easy to set up, use and manage.

Description

The Headmic Set comes with the the brand new SL Headmic 1 condensor headworn microphone, the Bodypack transmitter, stationary receiver and everything to use or install.

The SL Headmic 1 is very sleek, robust and wheighs only 7g without the cable. The black and silver design almost disappears in the environment while still offering the best sound perfomance.

All sets also come with rechargeable accupacks with up to 15 hrs of operating time. The accupack is also USB rechargeable, the cable is in the box, the USB socket is presumably just a step away from you.

The two types of sets are either Rackmount Sets (-R version), which come with everything needed for rack mounting, or Case Sets (-C version), in a transport case – without rackmounts, if you do not want to install the receiver.

Features

Easy set-up with Automatic Frequency Management
Easy operation with Automatic Audio Level remote controllable via software
Reliable operation with Automatic Interference Management
Optimum Speech Inteligibility with audio presets for male and female voices
Secure Encryption via advanced 256-bit AES encryption
Future-proof and license-free by utilizing the 1.9 Ghz frequency band
Convenient charging via USB rechargeable Li-Ion batteries

Specifications

System
AF Frequency Response	20 to 20,000 Hz
Dynamic Range	> 120 dB(A)
THD (1 kHz)	Typ. 0.1 %
Audio Sampling	24 bit/48 kHz
Signal-to-Noise Ratio	> 90 dB(A)
Encryption	AES 256
RF Frequency Ranges	1,920 to 1,930 MHz
Modulation	GFSK with back channel
Transmission Method	TDMA, space diversity
Latency	19 ms
Relative Air Humidity	Max. 95 %
Temperature Range	Operation: 14 °F to 131 °F (-10 °C to 55 °C) Storage: -4 °F to 158 °F (-20 °C to 70 °C)
SL Rack Receiver DW
RF Sensitivity	< -90 dBm
RF Output Power Back Channel	Adaptive, up to 250 mW
XLR Output Level, Balanced	Max. -18 dBu
RCA Output Level, Unbalanced	Max. +6 dBu
Audio Effects	Low Cut: -3 dB at 120 Hz Equalizer: 7-band graphic equalizer with sound presets Sound profiles: female voice / male voice / instrument / media
Display	OLED
Network Protocol	Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/ IPv6
Power Supply	12 V DC
Current Consumption	350 mA
AF Connection Sockets	XLR/2 x RCA
Antenna Sockets	2 x reverse SMA
Network Sockets	RJ-45
DC Socket for Power Supply	Hollow jack
Weight	1.83 lbs (828 g)

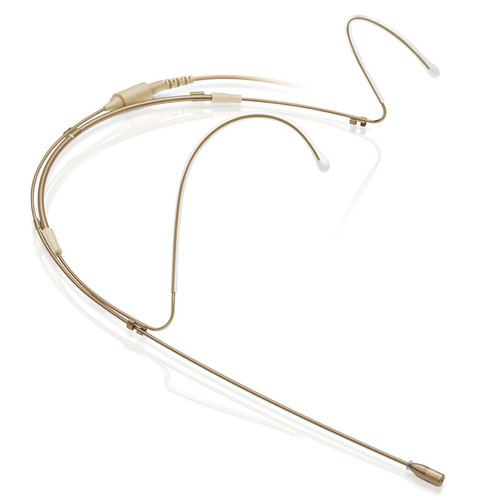

SL Headmic 1 Headset Microphone
Microphone Type	Pre-polarized condenser microphone
Sensitivity	5 mV/Pa
Pick-Up Pattern	Omni-directional
Max. SPL	142 dB SPL
SL Bodypack DW
RF Output Power	Adaptive, up to 250 mW
AF Frequency Response	Mic: 50 to 20,000 Hz Line: 20 to 20,000 Hz
Max. Input Level	Mic: 2.2 V RMS Line: 3.3 V RMS
Line Input Impedance	1 MΩ
Input Sensitivity	Automatic sensitivity adjustment
Power Supply	Accupack: BA 10 (Li-Ion, 3.7 V) Batteries: 2 x AA size battery (1.5 V)
Operating Time	Accupack: typ. 15 h Batteries: typ. 11 h
AF Connection Socket	3.5 mm jack socket, lockable
Weight (w/o Accupack)	Approx. 0.20 lbs (88 g)
