Axient® Digital makes everything perfectly clear. Incorporating the most innovative wireless audio technology in the world, Axient Digital was engineered from the ground up for professional productions that demand flawless execution. With an unprecedented level of signal stability and audio clarity, plus flexible hardware options, advanced connectivity, and comprehensive control, it’s a wireless system built to take on the challenges of today—and tomorrow.
Reliability is in the Air
With outstanding signal quality in even the most complex, crowded environments, Axient Digital ensures maximum stability, range, and clarity for uncompromising audio you can trust — anywhere, every time.
The Sound of Quality
Axient Digital defies limitations for both RF and audio quality. With industry-leading low latency, transparent frequency response, and wide dynamic range, Axient Digital lets nothing get in the way of true, pure sound. No matter the setting, you'll hear Shure audio quality you can count on.
Right-Sized Receiver Solutions

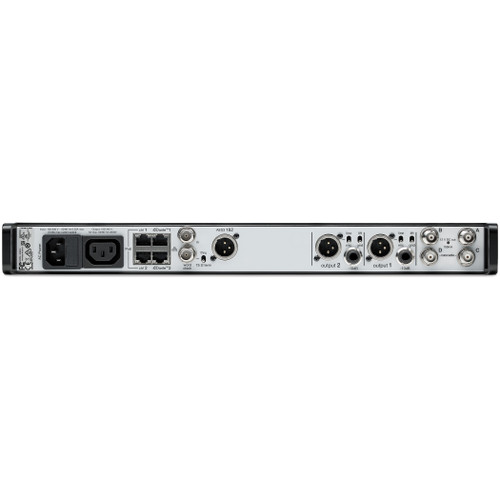

The Shure AD4Q is a 4-channel digital receiver, and is part of their Axient® Digital line working in frequency band A: 470 - 636 MHz. It offers Dante™ support, and is compatible with all AD transmitters, employing the most innovative wireless audio technology in the world.. It features Quadversity™, so it can assign 4 antennas to a single channel for greater coverage and signal quality. The AD line is engineered from the ground up for use in professional productions that demand flawless execution. With an unprecedented level of signal stability and audio clarity, as well as flexible hardware options, advanced connectivity, and comprehensive control, it's a wireless system that's made to take on the challenges of today and tomorrow.

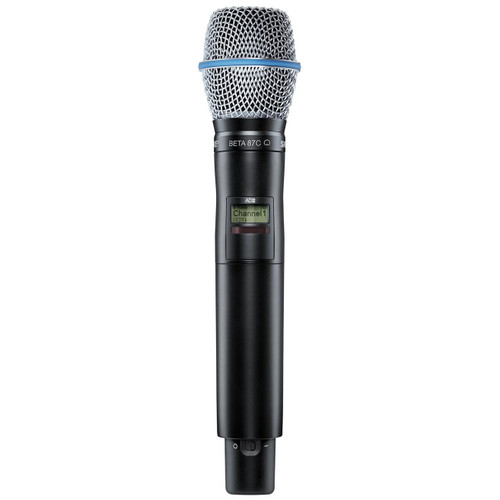

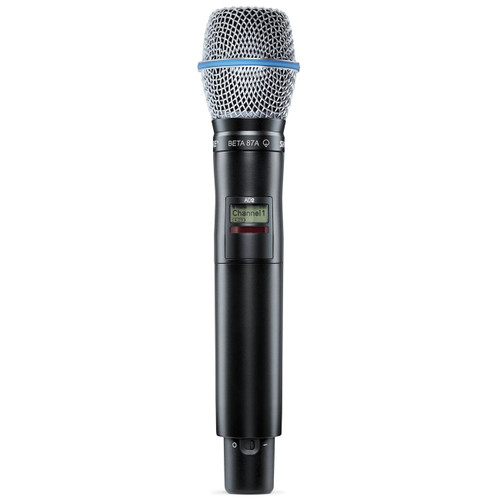

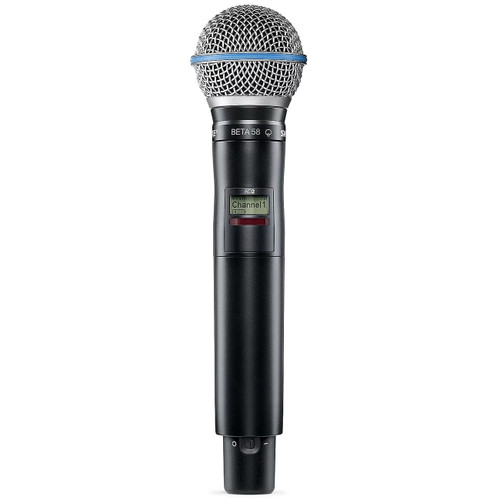

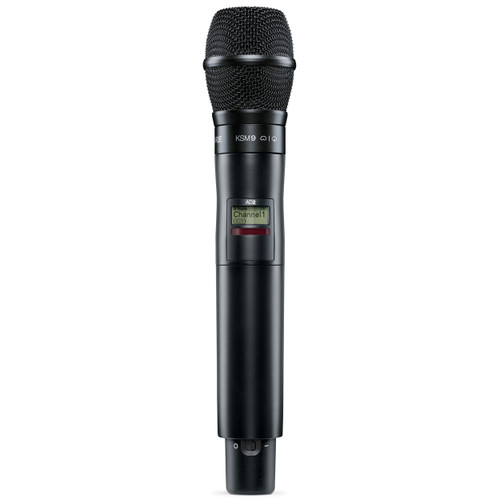

With breakthrough RF performance and wide tuning up to 184 MHz, AD series wireless handheld transmitters put professional quality digital audio within reach.
| System Technology | Digital |
|---|---|
| Receiver Format | Quad |
| Maximum Transmitter Tuning Range | 184 MHz |
| Transmission Modes | Standard, High Density |
| Channel Quality Metrics | Yes |
| Antenna Diversity | True Diversity |
| Quadversity™ | Yes |
| Latency (Transmitter to Receiver Analog Out) | Standard mode: 2ms High Density Mode: 2.9ms |
| Transmitter Frequency Diversity | Yes |
| Transmitter Remote Control | No |
| Channels per TV Band | Standard mode: 17 ch / 6 MHz, 23 ch / 8 MHz High Density Mode: 47 ch / 6 MHz, 63 ch / 8 MHz |
| Interference Detection | Yes |
| Automatic Interference Avoidance | No |
| Dynamic Range | XLR Output: >120 dB, A-weighted, System Gain @ +10 Dante Output: >130dB, A-weighted, System Gain @ +10 |
| Audio Output | Onboard analog (XLR & TRS) Onboard digital (AES3, Dante, & AES67) |
| Encryption | Yes |
| Battery Options | AA, SB900 / SB900A li-ion rechargeable (fuel gauge capable) |
| Charging Options | SBC100, SBC200, & SBC800 (for SB900 / SB900A), SBRC Networked Rack Charger |
Usually arrives in 5-9 business days.
