The Shure BLX Wireless System combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

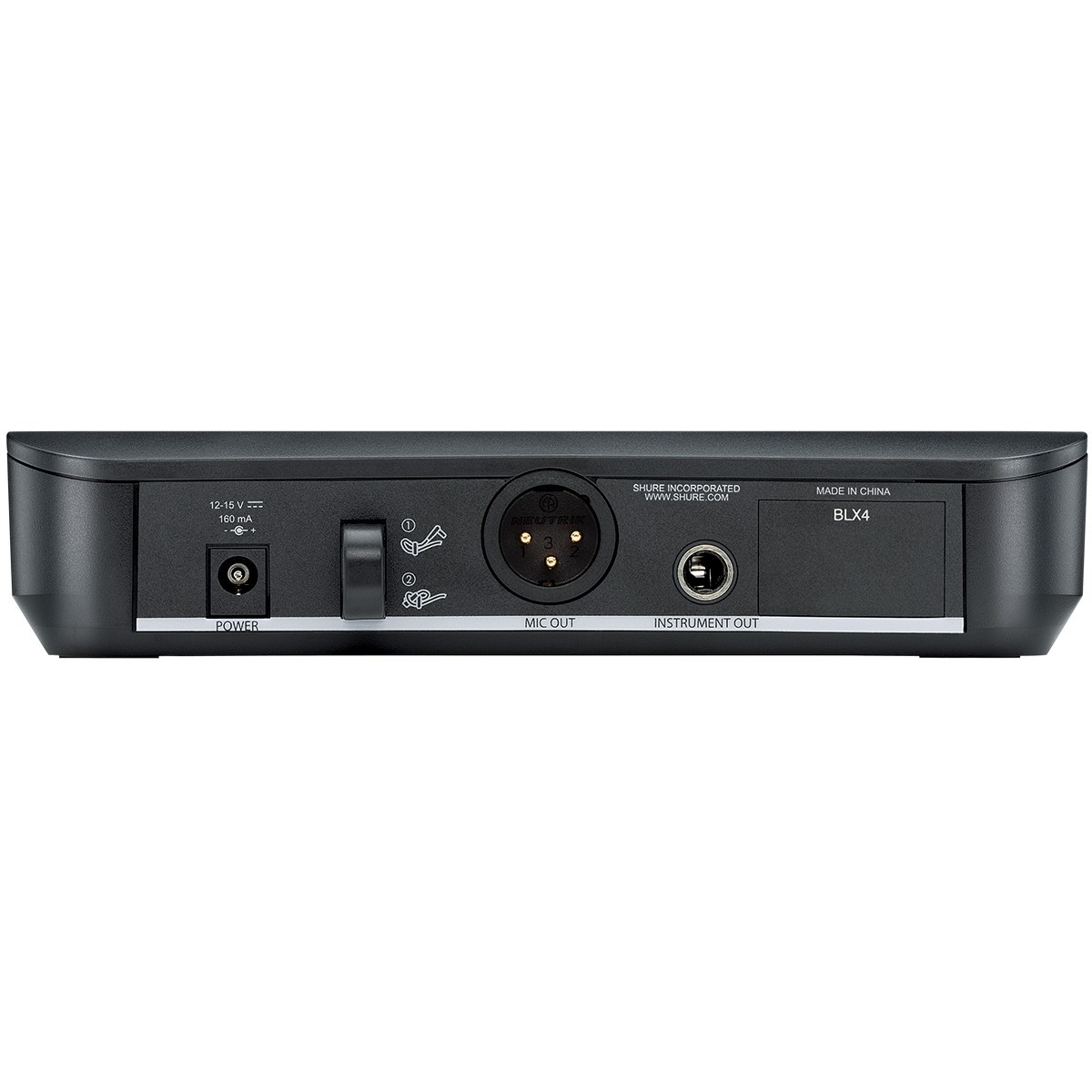

The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference.

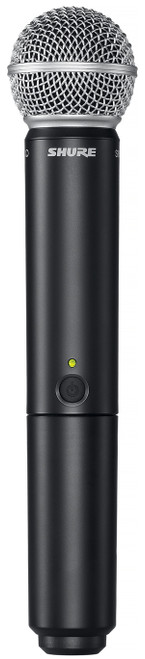

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.
Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
BLX24/SM58 Handheld Wireless System:
BLX4 Single Channel Receiver Features:
BLX2/SM58 Handheld Transmitter Features:
| System | |
|---|---|
| Working Range | 91 m (300 ft) Line of Sight |
| Audio Frequency Response | 50 to 15,000 Hz |
| Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone | 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| BLX4 Wireless Receiver | |
| Output Impedance | XLR connector: 200 Ω, 6.35 mm (1/4”) connector: 50 Ω |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone | XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ |
| RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >50 dB, typical |
| Housing | Molded ABS |
| Power Requirements | 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
| Dimensions (H x W x D) | 1.57" (40 mm) x 7.40" (188 mm) x 4.06" (103 mm) |
| Weight | 0.53 lbs (241 g) |
| BLX2 Handheld Transmitter | |
| Audio Input Level | Gain:- 0dB: -20 dBV maximum -10dB: -10 dBV maximum |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 10 mW, typical |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |
| Dimensions (H x Diameter) | 8.875" (224 mm) x 2.125" (53 mm) |
| Weight (without batteries) | 0.48 lbs (218 g) |
| SM58 Vocal Microphone | |
| Type | Dynamic (moving coil) |
| Frequency Response | 50–15,000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | EIA rated at 150Ω (300Ω actual) |
| Sensitivity (at 1 kHz, open circuit voltage) | –54.5 dBV/Pa (1.85 mV) |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Connector | Three-pin professional audio (XLR), male |
| Case | Dark gray, enamel-painted, die cast metal;matte-finished, silver colored,spherical steel mesh grille |
| Weight | 0.656 lbs (0.298 kg) |
