The FP15 Bodypack Wireless System is part of the FP wireless systems family.

Description

The FP15 Bodypack Wireless System is part of the FP wireless systems family.

When portability is required, FP Wireless and its intuitive, flexible components are the ideal solution. FP Wireless features proven wireless technology, including Shure patented Audio Reference Companding, for professional sound capture in demanding videography and electronic field production (EFP) environments.

Features

FP1 Bodypack Transmitter

  • Automatic transmitter setup that instantly syncs the transmitter to the receiver frequency
  • LED indicator for control lockout, IR RF sync, and low battery
  • Audio input gain for adjustment of audio level
  • 4-Pin microphone input jack for use with lavaliers or headset microphones with TA4F connectors

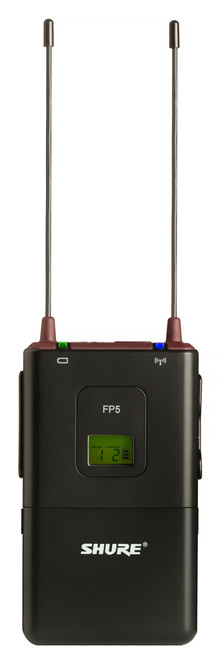

FP5 Portable Receiver

  • Power LED with low battery indicator
  • RF LED that indicates transmitter sync when illuminated
  • Receiver output level control that manages output to camera/mixer
  • Diversity antennas for consistent reception of signal transmission
  • TA3F cable output to either XLR or 1/8" connectors included
  • Camera shoe mount included
  • Rugged and lightweight Shure construction

Specifications
FP5 Portable Receiver
Audio Output Type TA3F
Configuration Impedance Balanced
Pin Assignments 1=Ground, 2=Hot, 3=Cold
Maximum Audio Output LevelRef. ±38 kHz Deviation with 1 kHz Tone -5 dBV (into 600 Ω Load)
Impedance 200 Ω
Housing Molded polycarbonate Case
Sensitivity -108 dBm for 12 dB SINAD, Typical
Power Requirements 2 AA Batteries, 1.5V
Battery Life Up to 12 Hours (Alkaline)
Dimensions (H x W x D) 4.25" (108 mm) x 2.52" (64 mm) x 0.75" (19 mm)
Weight 0.178 lbs (0.081 kg)
FP1 Bodypack Transmitter
Gain Adjustment Range -10 to +20 dBV
Input Impedance 1 MΩ
RF Output Power 10 to 30 mW (Varies By Region)
Pin Assignments (TA4M) 1: Ground (Cable Shield)
2: + 5 V Bias
3: Audio
4: Tied Through Active Load to Ground
On Instrument Adapter Cable, Pin 4 Floats)
Housing Molded Polycarbonate Case
Power Requirements 2 AA Batteries, 1.5 V
Battery Life Up to 12 Hours (Alkaline)
Dimensions (H x W x D) 4.25" (108 mm) x 2.52" (64 mm) x 0.75" (19 mm)
Weight 0.178 lbs (0.081 kg) Without Batteries

DOCUMENTS

In The Box
  • (1) FP1 Bodypack Transmitter
  • (1) FP5 Portable Receiver
  • (1) Camera Shoe Mount
  • (1) TA3F-to-XLRm Audio Cable
  • (1) TA3F-to-3.5mm Dual-Mono Audio Cable
  • (4) AA Batteries
  • (2) Vinyl Bags
  • (1) User Guide
