Shure GLXD14/85 Lavalier Wireless System (Discontinued)

Description

Details

The GLXD14/85 Lavalier Wireless System is part of the GLX-D wireless systems family.

Revolutionary Shure GLX-D® Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

Includes the GLXD4 receiver, GLXD1 bodypack transmitter, WL185 lavalier microphone, rechargeable battery, power supply, USB cable, carrying case, and user guide.

Features

Features

GLXD14/85 Lavalier Wireless System:

Globally unlicensed 2.4 GHz frequency band allows operation of up to 8 compatible systems
Up to 200 ft (60 m) operating range (line of sight)
Rugged and reliable Shure construction
Legendary Shure microphones options featuring an integrated microphone capsule design

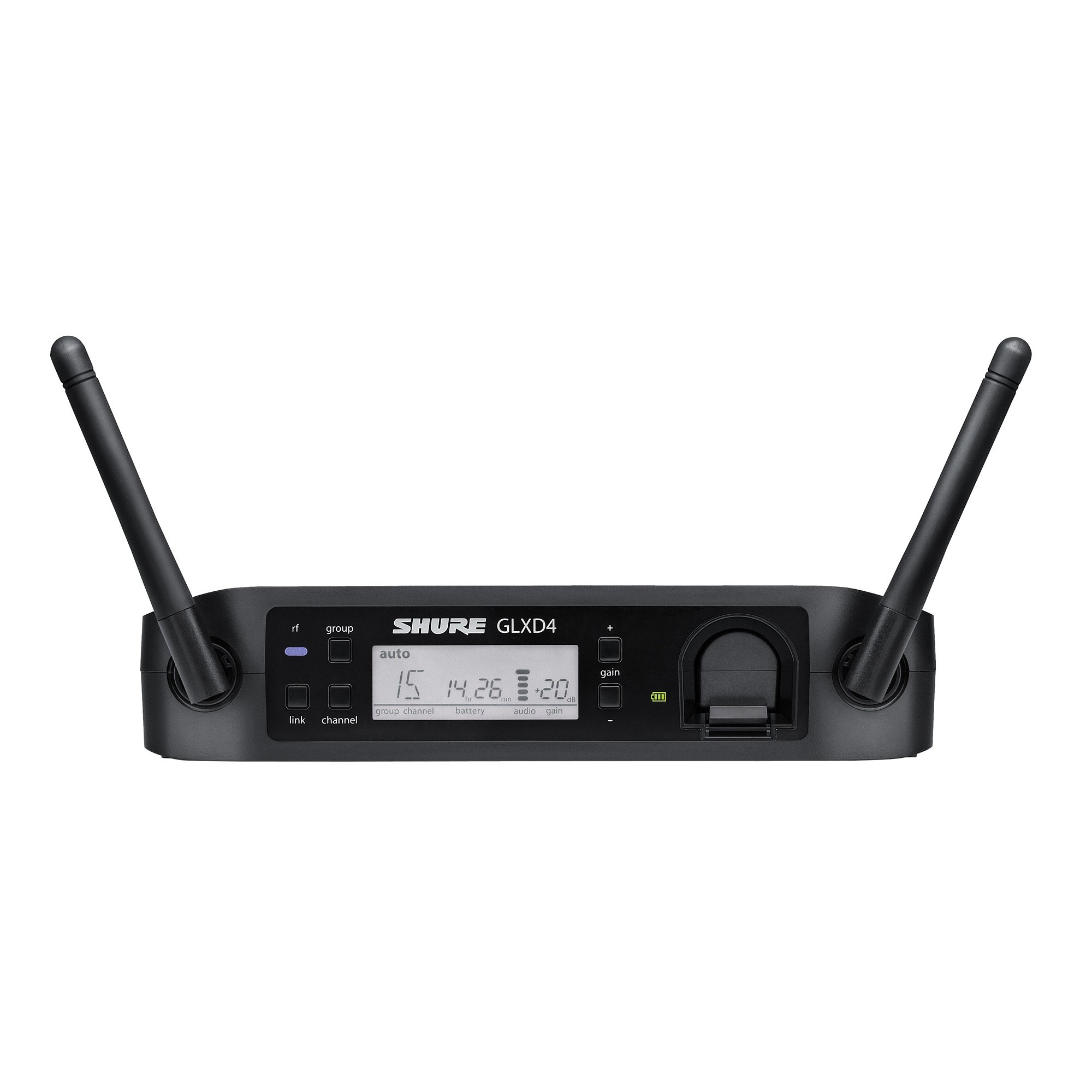

GLXD4 Wireless Receiver:

High-resolution LCD screen status display
Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
Remote adjustable transmitter gain control
Two-color charge indicator LED

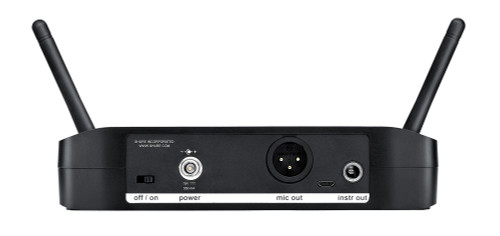

XLR and 1/4" output connectors
Lightweight, durable construction

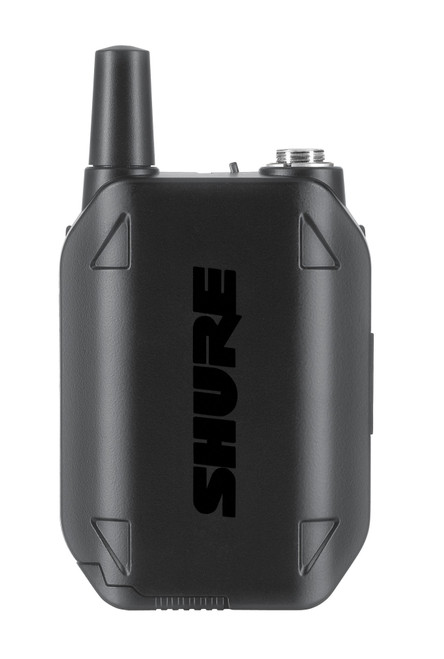

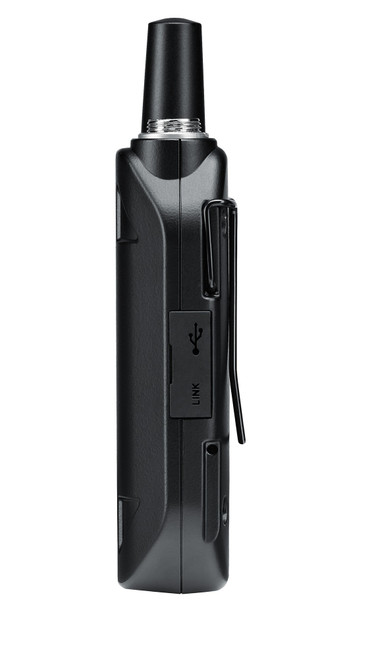

GLXD1 Bodypack Transmitter:

Automatically links with GLX-D wireless receivers for seamless frequency changing
Sophisticated design with rugged metal construction
Easily accessible on / off switch
Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables

WL185 Lavalier Microphone:

Cardioid
Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise
Use of windscreen highly recommended
Pickup angle: 130 degrees

Specification

GLXD4 Wireless Receiver
Operating Range	200 ft (60 m) line of sight
Frequency Band	ISM 2400 – 2483.5 MHz
Audio Range	20 – 20,000 Hz
Transmitter RF Output Power	10 mW E.I.R.P. maximum
Audio Output Connector	XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level	O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life	Up to 16 hours
Dynamic Range	120 dB A-weighted
System Distortion	0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range	-18°C (0°F) to +57°C (135°F)
Power Requirements	14–18 V DC at 550 mA, supplied by external power supply
Dimensions (H x W x D)	1.6" (40 mm) x 7.2" (183 mm) x 4.6" (117 mm)
Weight (without Batteries)	10.1 oz (286 g)
GLXD1 Bodypack Transmitter
Operating Range	200 ft (60 m) line of sight
Frequency Band	ISM 2400 – 2483.5 MHz
Audio Range	20 – 20,000 Hz
Transmitter RF Output Power	10 mW E.I.R.P. maximum
Audio Output Connector	XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level	O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life	Up to 16 hours
Dynamic Range	120 dB A-weighted
System Distortion	0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range	-18°C (0°F) to +57°C (135°F)
Power Requirements	3.7 V custom rechargeable lithium-ion battery
Dimensions (H x W x D) (without Antenna)	3.56" (90 mm) x 2.54" (65 mm) x 0.90" (23 mm)
Weight (without Batteries)	0.63 lbs (0.29 kg)
WL185 Lavalier Microphone
Type	Condenser (electret bias)
Frequency Response	50 to 17,000 Hz
Output Impedance	1800 Ω
Sensitivity (1 Pa = 94 dB SPL)	-45.5 dBV/Pa
Maximum Sound Pressure Level	130.5 dB SPL
Output Noise (A-Weighted)	28.0 dB SPL
Dynamic Range	102.5 dB
Polarity	Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
