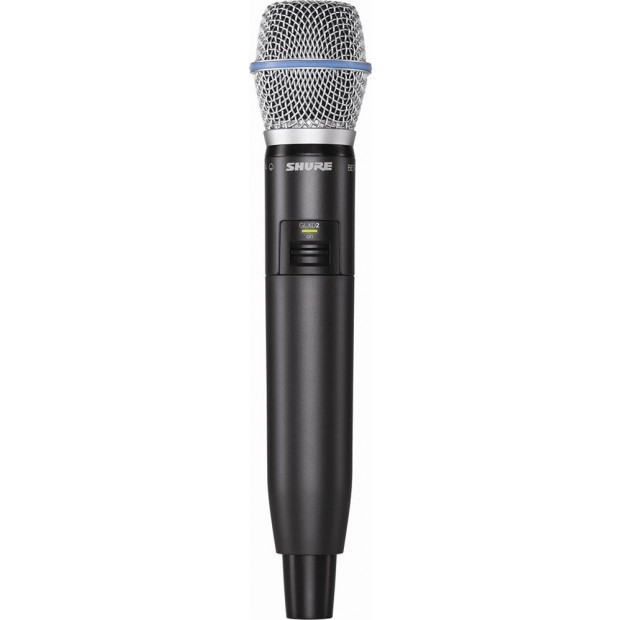

Shure GLXD2 Handheld Transmitter with Beta 87A Microphone Element (Discontinued)
By Shure

Shure GLXD2 Handheld Transmitter with Beta 87A Microphone Element (Discontinued)

Write a Review
Part #:
GLXD2/B87A=-Z2
Model #:
GLXD2/B87A
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Shure Beta 87A is a premium quality supercardioid hand-held electret condenser vocal microphone with exceptionally smooth frequency response and high sound pressure level capability.

Description
The Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity. Compatible with Shure microphones trusted by musicians for decades, the GLXD2 transmits wireless audio with digital clarity and rock-solid reliability. It is for use with GLX-D Digital Wireless Systems.

The Shure Beta 87A is a premium quality supercardioid hand-held electret condenser vocal microphone with exceptionally smooth frequency response and high sound pressure level capability. Used for professional sound reinforcement, broadcasting, and studio recording applications, the Beta 87A combines superb performance with the ruggedness needed for touring and field production.

Features
  • GLXD2 Handheld Transmitter Features:
  • Integrated microphone capsule design, featuring the legendary Beta 87A
  • Automatically links with GLX-D wireless receivers for seamless frequency changing
  • BETA 87A Vocal Microphone Features:
  • Smooth frequency response with gradual presence rise
  • Highly consistent supercardioid polar pattern provides superior gain-before-feedback
  • Electronic low-frequency roll-off compensates for proximity effect
  • Wide dynamic range (117 dB) and low distortion characteristics
  • Very low susceptibility to RFI and electromagnetic hum
  • Advanced cartridge shock-mount system absorbs mechanical shocks and reduces handling noise
  • Built-in pop filter reduces undesirable wind and breath sounds
  • Legendary Shure quality and reliability

Specifications
Operating Range 200 ft (60 m) line of sight
Frequency Band ISM 2400 – 2483.5 MHz
Audio Range 20 – 20,000 Hz
Transmitter RF Output Power 10 mW E.I.R.P. maximum
Audio Output Connector XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life Up to 16 hours
Dynamic Range 120 dB A-weighted
System Distortion 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range -18°C (0°F) to +57°C (135°F)
Power Requirements 3.7 V custom rechargeable lithium-ion battery
Cartridge Type Condenser (electret bias)
Frequency Response 50 to 20,000 Hz
Polar Pattern Supercardioid
Output Impedance Rated at 150 ohms (100 ohms actual +/- 20%), Recommended minimum load impedance: 800 ohms
Sensitivity (at 1,000 Hz) Open Circuit Voltage -52.5 dBV/Pa (2 mV)
Clipping Level (at 1,000 Hz) 1000 ohm Load: -6 dBV (0.5 V)
Maximum SPL (at 1,000 Hz) 140.5 dB (0.25% THD, 1000 ohm load)
Self-Noise 23.5 dB typical, A-weighted; 25.5 dB typical, weighted per DIN 45 405
Dynamic Range 117 dB (maximum SPL to A-weighted noise level)
Signal-to-Noise Ratio 70.5 dB at 94 dB SPL (IEC 651)
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Phantom Supply Requirement 11 to 52 Vdc, positive at both pins 2 and 3
Current Drain 1.0 to 1.2 mA
Connector Three-pin (XLR) professional audio
Dimensions (H x Diameter) 9.9" (252 mm) x 2" (51 mm)
Weight 0.45 lbs (207 g)

Related Products

Sold Out
Shure GLXD2 Handheld Transmitter with SM58 Microphone Element (Discontinued)

Shure GLXD2 Handheld Transmitter with SM58 Microphone Element (Discontinued)

The Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new...
MSRP: $369.00
$289.00

Usually arrives in 5-9 business days.

MSRP: $369.00
$289.00
Sold Out

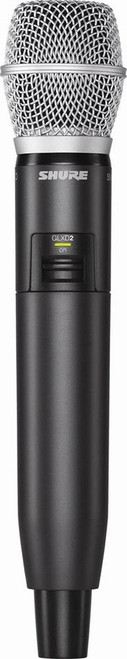

Shure GLXD2 Handheld Transmitter with SM86 Microphone Element (Discontinued)
