Shure KSM313/NE Dual-Voice Ribbon Microphone

Shure KSM313/NE Dual-Voice Ribbon Microphone

Name: Shure KSM313/NE Dual-Voice Ribbon Microphone
Brand: Shure
SKU: SHURE-KSM313/NE
Price: 1429 USD
Availability: InStock

Write a Review

Part #:

KSM313/NE

Model #:

KSM313/NE

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The KSM313/NE is a premium bi-directional ribbon microphone for world-class audio and performance. The Dual-Voice design features discrete front-and-rear side sonic signatures for use with amplified instruments or in intimate vocal applications. Hand assembled in the USA with custom components and proprietary Roswellite™ technology for revolutionary ribbon resilience under extreme conditions.

The high-tensile strength, toughness and shape memory of Roswellite™ ribbon material replaces traditional foil ribbons for superior resilience at extreme SPLs.

With unique technology and application features, alongside superior materials and construction, Shure KSM Ribbon Microphones are the necessary choice for the world’s most accomplished studio and live performances.

Features

Bi-directional polar pattern delivers premier audio with superior off-axis rejection.
True Dual-Voice tuned specifically for user’s for choice of response - warm and full for amplifiers, or swivel for bright and flattering vocals.
Revolutionary Roswellite™ proprietary ribbon material replaces traditional foil ribbons with high tensile strength, toughness and shape memory that provides superior resilience at extreme SPLs.
Custom-sourced components for superior presence, minimized signal loss and maximized output.
146dB SPL across 30 – 15,000 Hz frequency response ideal for capturing fast transients in vocals, acoustic instruments and concert halls.
Legendary Shure quality and superior construction from hand-assembly of machined steel, silver, gold and aluminum materials.

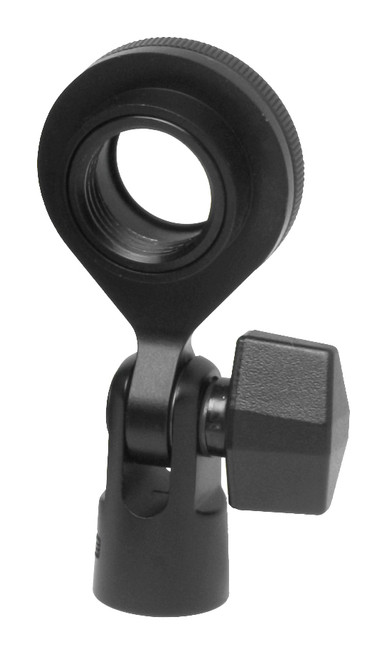

Custom swivel mount for fully versatile placement and orientation.
Protective wood case included for storage when not in use.

Specifications

Transducer Type	Roswellite™ Ribbon
Frequency Response	30Hz – 15,000Hz
Directional Polar Pattern	Bidirectional
Output Impedance	Transformer, balanced, actual 270Ω
Polarity	Positive pressure on front side of ribbon produces positive voltage on pin 2 pin 3,pin 1 ground
Sensitivity (at 1 kHz, open circuit voltage)	-54.5 dBV/Pa (1.88 mV/Pa)
Max SPL	146 dB
Connector	Three pin professional audio (XLR) male
Dimensions (Diameter x Height)	4.32 cm (1.7 in) x 13.5 cm (5.3 in)
Weight	400g (0.881 lbs)/597g (1.131 lbs) w/monocle mount
