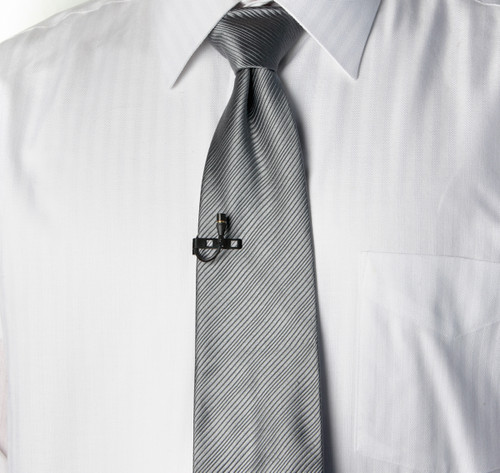

Ideal for applications requiring low-profile placement, the MX150 Subminiature Lavalier Microphone features an electret condenser microphone cartridge.
Shure Microflex® MX150 is a professional electret condenser microphone ideal for applications requiring low-profile placement.
Fully compatible with all Shure wireless systems, the discreet MX150 offers uncompromising sound quality and high reliability for television broadcasting, corporate lectures, A / V teleconferencing, houses of worship, and sound reinforcement.
| Transducer Type | Electret Condenser |
|---|---|
| Polar Pattern | MX150/C: Cardioid MX150/O: Omnidirectional |
| Frequency Response | 20 to 20,000 Hz |
| Output Impedance | MX150/C: TQG: N/A, XLR: 165.5Ω MX150/O: TQG: N/A, XLR: 165.0Ω |
| Sensitivity(Open Circuit Voltage, @ 1 kHz, Typical) MX150/C | TQG: -51.0 dBV/Pa (3.0 mV)XLR: -39.0 dBV/Pa (11.0 mV) |
| Sensitivity(Open Circuit Voltage, @ 1 kHz, Typical) MX150/O | TQG: -46.5 dBV/Pa (4.5 mV)XLR: -34.5 dBV/Pa (19.0 mV) |
| Maximum SPL (1 kHz at 1% THD) MX150/C | TQG: 147.5 dB SPL; XLR: 129.5 dB SPL |
| Maximum SPL (1 kHz at 1% THD) MX150/O | TQG: 143.0 dB SPL; XLR: 125.0 dB SPL |
| Signal-To-Noise Ratio MX150/C | TQG: 57.5 dB; XLR: 57.0 dB |
| Signal-To-Noise Ratio MX150/O | TQG: 60.0 dB; XLR: 59.5 dB |
| Dynamic Range @ 1 kHz MX150/C | TQG: 111.0 dB SPL; XLR: 92.5 dB SPL |
| Dynamic Range @ 1 kHz MX150/O | TQG: 109.0 dB SPL; XLR: 90.5 dB SPL |
| Self-Noise(Equivalent SPL, A-Weighted, Typical) MX150/C | TQG: 36.5 dB; XLR: 37.0 dB |
| Self-Noise(Equivalent SPL, A-Weighted, Typical) MX150/O | TQG: 34.0 dB; XLR: 34.5 dB |
| Operating Temperature Range | -18°C (0°F) to 57°C (135°F) |
| Polarity | TQG: Positive Oressure on Diaphragm Produces Positive Voltage on Pin 3 with Respect to Pin 1 XLR: Positive Pressure on Diaphragm Produces Positive Voltage on Pin 2 with Respect to Pin 3 |
| Power Requirements | TQG: 5 V DC (0.04 – 0.18 mA) XLR: 11-52 V DC Phantom Power (IEC-61938), < 2.2 mA |
| Weight | TQG: 0.046 lbs (0.021 kg) XLR: 0.26 lbs (0.121 kg) |
