Shure PSM 900 Personal Monitoring System
Write a Review
Shure PSM 900 Personal Monitoring System
Part #:
P9TRA+425CL-G6
Model #:
PSM 900
Availability:
Usually arrives in 5-9 business days.
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
The PSM®900 Wireless Personal Monitor System from Shure offers an unprecedented combination of superb audio quality, robust RF performance, and category-leading features for the most demanding professional applications. Patent-pending CueMode allows the sound engineer to monitor different stage mixes with the touch of a button. Precision front-end RF filtering significantly reduces dropouts from RF interference, and the enhanced digital stereo encoder provides excellent stereo separation and audio clarity.
Features

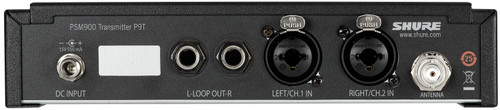

P9T Wireless Transmitter:
- RF Mute Switch allows system setup without causing RF interference
- Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Front or back mountable antennas
- Compatible with PA421SWB and PA821SWB antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4” and XLR connectors
- Bit-mapped, backlit LCD
- Includes rack-mounting hardware
- 1/8” headphone out on the front panel for easy monitoring
P9R Wireless Bodypack Receiver:
- Ultra-thin, low profile bodypack allows discreet placement on the performer
- Enhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detail
- RF Scan: stand where the artist will be on stage and instantly check RF level
- Automatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneously
- Syncs to a P9T transmitter quickly and easily over IR link using Scan and Sync
- Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
- Separate, easily visible audio and RF status indicator LED's
- Audio level and battery life metering
- Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)
- Volume and balance controls
- Extruded aluminum construction for rugged dependability
Specifications
| RF Output Power | Selectable: 10, 50, 100 mW (+20 dBm) (regionally dependent) |
|---|---|
| RF Output Impedance | 50 Ω (typical) |
| Power Requirement | 415 mA, typical |
| Dimensions | 197 mm x 166 mm x 42 mm |
| Net Weight | 0.87 lbs (850 g) |
| Front-End RF Filtering | –3 dB point 30.5 MHz from center frequency |
| Active RF Gain Control | 31 dB |
| RF Sensitivity (20 dB SINAD) | 2.2 μV |
| Squelch Threshold (±3 dB SINAD) | 22 dB SINAD |
| Adjacent Channel Rejection | >70 dB |
| Intermodulation Attenuation | >70 dB |
| Blocking | >80db |
| Image Rejection | >100 dB |
| Audio Output Power | 100 mW |
| Minimum Load Impedance | 9.5 Ω |
| High Boost | Selectable: +3 dB, +6 dB @ 10 kHz |
| Battery Life | 5–7 hours (continuous use) |
| Dimensions | 83 mm x 65 mm x 22 mm |
| Net Weight with Batteries | 0.44 lbs (200 g) |
