Featuring a BETA 87A handheld wireless microphone transmitter, QLXD24/B87A combines professional features with simplified setup and operation
The QLXD24/B87A Handheld Wireless Microphone System is part of the QLX-D wireless systems family
QLX-D® delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces
QLXD4 Digital Wireless Receiver:

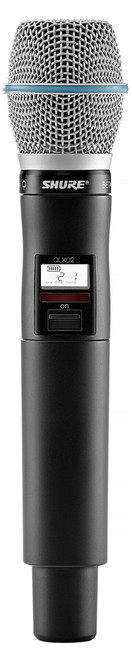

QLXD2/BETA87A Handheld Wireless Microphone Transmitter:
| QLX-D System | |
|---|---|
| RF Carrier Frequency Range | 470–937.5 MHz, Varies by Region |
| Image Rejection | >70 dB, Typical |
| Latency | |
| RF Sensitivity | -97 dBm at 10-5 BER |
| Working Range | 100 m (328 ft.) Line-of-Sight Note: Actual Range Depends on RF Signal Absorption, Reflection and Interference |
| Audio Dynamic Range(System Gain @ +10) | 20 Hz to 20 kHz Note: Dependent on Microphone Type |
| Total Harmonic Distortion | >120 dB, A-Weighted, Typical |
| Operating Temperature Range | < 0.1% (−12 dBFS Input, System Gain @ +10) |
| Maximum Input Level | -18°C (0°F) to 50°C (122°F) Note: Battery characteristics may limit this range |
| QLXD4 Digital Wireless Receiver | |
| Power Requirements | 12V DC @ 0.4 A, Supplied By External Power Supply (Tip Positive) |
| Housing | Steel |
| Spurious Rejection | >80 dB, Typical |
| Connector Type | BNC |
| Impedance | 50 Ω |
| Gain Adjustment Range | -18 to +42 dB in 1 dB Steps |
| Configuration 1/4 | Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground) |
| Configuration XLR | Balanced (1=Ground, 2=Audio+, 3=Audio−) |
| Impedance | 1/4" (6.35 mm): 100 Ω (50 Ω Unbalanced) XLR: 100 Ω |
| Full Scale Output | 1/4" (6.35 mm): +12 dBV XLR: LINE Setting= +18 dBV, MIC Setting=−12 dBV |
| Mic/Line Switch | 30 dB Pad |
| Phantom Power Protection | 1/4" (6.35 mm): Yes XLR: Yes |
| Network Interface | Single Port Ethernet 10/100 Mbps |
| Network Addressing Capability | DHCP or Manual IP Address |
| Maximum Ethernet Cable Length | 100 m (328 ft) |
| Dimensions (H x W x D) | 1.63" (41 mm) x 7.75" (197 mm) x 5.94" (151 mm) |
| Weight | 1.71 lbs (0.78 kg) without Antennas |
| QLXD2/BETA87A Wireless Handheld Transmitter | |
| Mic Offset Range | 0 to 21 dB (in 3 dB Steps) |
| Battery Type | Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5V |
| Battery Runtime @ 10 mW | Shure SB900: Up to 10 Hours; Alkaline: Up to 9 Hours |
| Housing | Machined Aluminum |
| Configuration | Unbalanced |
| Maximum Input Level (1 kHz at 1% THD) | 145 dB SPL (SM58), Typical |
| Antenna Type | Integrated Single Band Helical |
| Occupied Bandwidth | |
| Modulation Type | Shure Proprietary Digital |
| Power | 1 mW or 10 mW |
| Dimensions (Dia x L) | 2" (51 mm) x 10.1" (256 mm) |
| Weight | 0.76 lbs (0.35 kg) |
