- Description
Details
Five-Way Active Antenna Splitter and Power Distribution System for U4S, UR4S, U4D, and UR4D receivers; Five-Way Active Antenna Splitter for ULXD4, UXLD4D, ULXD4Q receivers.

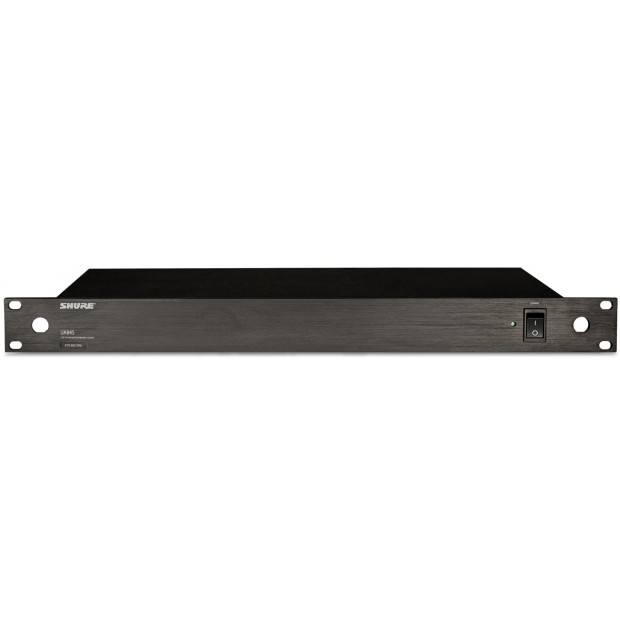

The Shure Model UA845 is an amplified, UHF Antenna Distribution System that expands a wireless microphone system by splitting one pair of antennas to multiple Shure UR4 or Shure UC4 wireless receivers. It also amplifies RF signals to compensate for insertion loss due to splitting signal power to mulitple output connectors. Each UA845 allows up to four receivers to use the same antennas. CASCADE connectors allows connections to a fifth receiver or a second UA845. There are also power connectors for powering Shure UHF and UC Wireless systems. NOT FOR USE WITH ULX.
- Features
Features
- Each unit allows up to four wireless receivers to use the same two antennas
- Compatible with all Shure wireless microphone receivers operating within a compatible frequency range
- Maintains clean signals with minimal distortion
- Up to five (5) U4 or UR4 receivers can be daisy-chained and powered from a single source
- Comes with hardware to front-mount the antennas
- Specification
UHF Carrier Frequency Range 470 - 952 MHz Output Connector Isolation Greater Than 25 dB Third Order Intercept Point (3 OIP) Typical 24 dBm Input/Output AC Line Voltage 100 to 240 Vac, 50/60 Hz, Unswitched DC Output Voltage 12 Vdc, 4 Connectors Impedance 50 ohms Operating Temperature Range –7° C (+20° F) to 49° C (+120° F) Input/Output Antenna Connector Type BNC-Type AC Power Consumption 15W Per Unit Dimensions (H x W x D) 1.75" (44.5 mm) x 19" (482.6 mm) x 11.626" (295.3 mm) Weight 7.32 lbs (3.32 kg) - Documents
Documents
- In The Box
In The Box
- (1) UA845 Antenna Distribution System
- (1) Rack-Mounting Hardware
- (1) Surface-Mounting Hardware
- (1) Front-Mounting Antenna Hardware
- (1) 18" Power OUTPUT Cord
- (1) Power Cord
- (1) Antenna Cables for Receiver Connections
