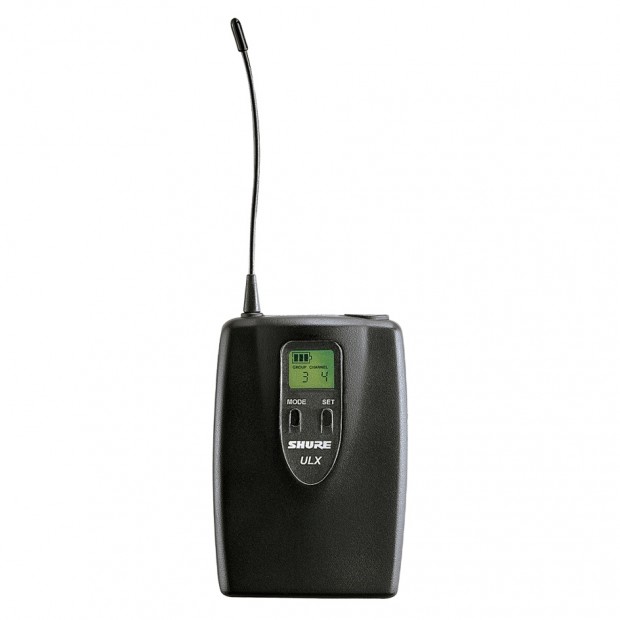

Shure ULX1 Wireless Bodypack Transmitter (Discontinued)

Name: Shure ULX1 Wireless Bodypack Transmitter (Discontinued)
Brand: Shure
SKU: SHURE-ULX1
Price: 193 USD
Availability: OutOfStock

Write a Review

Part #:

ULX1

Model #:

ULX1

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

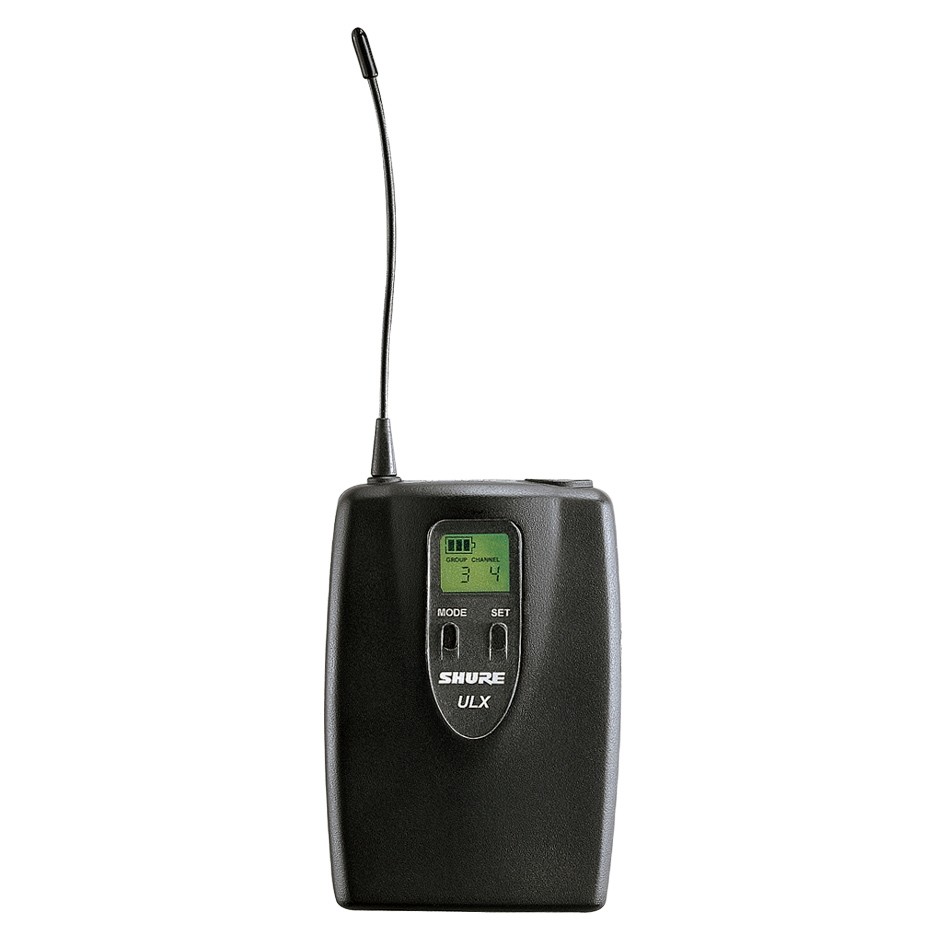

The low-profile Shure ULX1 Wireless Bodypack Transmitter is a highly durable body-pack that has all the characteristics to meet the demands of high performance. It is for use with headworn, lavalier and instrument microphones, as well as guitars and basses. The ULX1 can attach to a belt, waistband or guitar strap with clip for hands-free mobility.

Description

The ULX1 Bodypack Transmitter has a number of uses with ULX Professional systems from Shure, including Lavalier, Headworn, Guitar/Bass, Instrument, and system Combos. The low-profile, highly durable body-pack ULX1 has all the characteristics to meet the demands of high performance. It is for use with headworn, lavalier and instrument microphones, as well as guitars and basses. The ULX1 can attach to a belt, waistband or guitar strap with clip for hands-free mobility.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

Three-segment battery fuel gauge
Frequency and power lockout
Flexible 1/4 wave antenna
TA4F mini four-pin input connector
Backlit LCD display shows group and channel setting
Adustable audio gain control
Input attenuation switch (selects 0 dB or -20 dB attenuation)
PEAK icon appears when audio input overloads the transmitter
Power on/off switch
8 hour battery life (9 V battery)
300 ft (100 m) operating range

Specifications

Receiver Audio Output Level
RF Carrier Frequency Range	470,000–865,000 MHz
Effective Range	300 ft (100 m) under optimal conditions
Audio Frequency Response	25 to 15,000 Hz, ±2 dB
Transmitter Gain Adjustment Range	25 dB
XLR connector (into 600 ohm load)	+3.9 dBV (line), –17 dBV(mic)
1/4 inch connector (into 3000 ohm load)	–2 dBV
Impedance	1 Megohm
Modulation	±38 kHz deviation compressor-expander system with pre- andde-emphasis
RF Power Output	30 mW maximum
Dynamic Range	>100 dB, A-weighted
RF Sensitivity	1.26 μV for 12 dB SINAD (typical)
Image Rejection	80 dB typical
Spurious Rejection	75 dB typical
Ultimate Quieting	>105 dB, A-weighted
System Distortion	0.3% total harmonic distortion, typical
Power Requirements	9V alkaline battery
Battery Life	8 to 9 hours (with 9V alkaline battery)
Operating Temperature Range	-20° to 49° C (–4° to 120° F)
Transmitter Input
Connector	4-Pin male mini connector (TA4M)
Input Configuration	Unbalanced, active
Actual Impedance	18 kΩ with lavalier microphone 1 MΩ with instrument cable
Maximum Input Level	10 Vp–p (12 dBV) for 1% THD at minimum gain setting using 1 kHz signal
TA4F Connector Pin Assignments	Pin 1:Tied to Ground Pin 2:Tied to +5 V Pin 3:Tied to Audio Pin 4:Tied thru 20kΩ Resistor to
Voltage for Remote Power	+5 V supplied to microphone cartridge
Transmitter Output
Actual Impedance	50 Ω
Nominal Output Level	20 mW
Maximum Output Level	30 mW
Dimensions (H x W x D)	3.86" (96.5 mm) x 2.68" (67 mm) x 1.10" (26.7 mm)
Weight (Without Battery)	2.8 oz (79 g)
