Shure ULXD2/SM87 Handheld Wireless Transmitter (Discontinued)
By Shure

Shure ULXD2/SM87 Handheld Wireless Transmitter (Discontinued)

Write a Review
Part #:
ULXD2/SM87=-G50
Model #:
ULXD2/SM87
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D™ Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance.

Description
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D™ Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission and advanced rechargeability options for professional sound reinforcement applications.

The Shure SM87A microphone is a professional-quality, handheld condenser microphone for use in sound reinforcement, broadcasting, and studio recording installations. Its supercardioid polar pattern provides greater rejection of unwanted sound sources, making it ideal for miking individual instruments in a multi-microphone setting or for miking single sources in a reverberant or noisy environment. An integral three-stage wind and pop filter protects against wind and breath noise. Its built-in shock mount reduces stand and handling noise.

Features
  • ULXD2 Features:
  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent).
  • Interchangeable Shure microphone cartridges, including the legendary SM58.
  • AES 256-bit encryption for applications for which secure transmission is needed.
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments.
  • Shure Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect.
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger).
  • Backlit LCD with easy to navigate menu and controls.
  • Rugged metal construction.
  • Frequency and power lockout.
  • SM87A Features:
  • Highly directional supercardioid pickup pattern.
  • Controlled low-frequency roll-off.
  • Very low RF and magnetic hum susceptibility.
  • Minimally affected by varying load impedance.
  • Built-in wind and pop filter.
  • Transducer element shock mounted.
  • Rugged construction for outstanding reliability.
  • Field-usable over a wide range of temperature and humidity conditions.
  • Accepts a wide variety of phantom power sources, including DIN 45 596 voltages of 11 and 52 Vdc.

Specifications
AUDIO INPUT Configuration Unbalanced
Maximum Input Level (1 kHz at 1% THD) 145 dB SPL (SM58), typical
Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20 120 dBV, A-weighted, typical
RF OUTPUT Antenna Type Integrated Single Band Helical
Occupied Bandwidth
Modulation Type Shure Proprietary Digital
Power 1 mW, 10 mW, 20 mW
Audio Frequency Response 30 Hz to 20 kHz (±1 dB), flat
Dynamic Range >120 dB
Operating Range 300 ft (100 m)
Gain Offset Range 0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900 Rechargeable Li-Ion or AA batteries
Battery Runtime @ 10 mW Shure SB900: >12 hours Alkaline: 11 hours
Housing Machined aluminum
Dimensions 10.1" x 2.0" (256 mm x 51 mm)
Weight 0.749 lbs (340 g), without batteries
Cartridge Type Condenser (electret bias)
Frequency Response 50 to 20,000 Hz
Polar Pattern Supercardioid
Output Impedance Rated at 150 ohms (100 ohms actual +/- 20%)
Sensitivity (at 1,000 Hz) Open Circuit Voltage: -52.5 dBV/Pa (2.4 mV)
Clipping Level (at 1,000 Hz) 1000 ohm Load: -6 dBV (0.5 V)
Maximum SPL (at 1,000 Hz) 140.5 dB (0.25% THD, 1000 ohm load)
Self-Noise 24 dB typical, A-weighted26 dB typical, weighted per DIN 45 405
Dynamic Range 116.5 dB (maximum SPL to A-weighted noise level)
Signal-to-Noise Ratio 70 dB at 94 dB SPL (IEC 651)
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Power Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3
Connector Three-pin (XLR) professional audio
Case Aluminum construction with steel grille and satin black finish
Net Weight 0.440 lbs (200 grams)

Related Products

Sold Out
Shure ULXD2/B87C Handheld Wireless Transmitter (Discontinued)

Shure ULXD2/B87C Handheld Wireless Transmitter (Discontinued)

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D™ Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers...
MSRP: $1,193.00
$852.00

Usually arrives in 5-9 business days.

MSRP: $1,193.00
$852.00
Sold Out

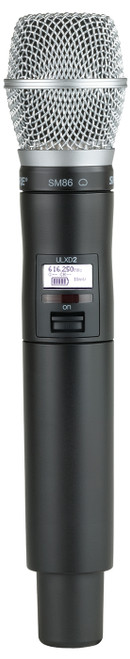

Shure ULXD2/SM86 Handheld Wireless Transmitter (Discontinued)

Shure ULXD2/SM86 Handheld Wireless Transmitter (Discontinued)

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D™ Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers...
MSRP: $1,050.00
$750.00

Usually arrives in 5-9 business days.

MSRP: $1,050.00
$750.00
Sold Out

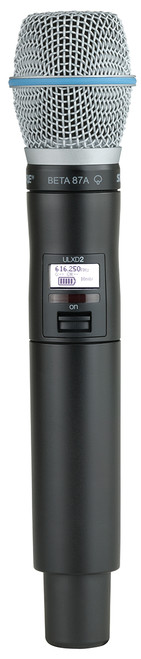

Shure ULXD2/B87A Handheld Wireless Transmitter (Discontinued)
