Shure WB98H/C Clip-On Instrument Microphone
Shure WB98H/C Clip-On Instrument Microphone
Shure WB98H/C Clip-On Instrument Microphone
By Shure

Shure WB98H/C Clip-On Instrument Microphone

Write a Review
Part #:
WB98H/C
Model #:
WB98H/C
MSRP: $241.00
$186.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Shure WB98H/C instrument microphone provides high gain-before-feedback and rejection of unwanted noise. It features preamplifier circuitry for linearity across frequency range, tailored frequency response for studio quality, and a wide dynamic range for high-SPL.

Description

Shure WB98H/C Clip-On Wireless Instrument Microphone

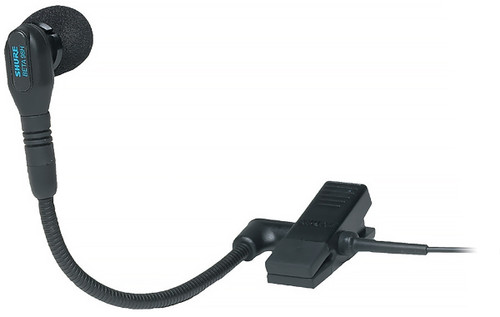

The Shure WB98H/C (the wireless version of the BETA®98H/C) is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the microphone to be easily positioned and secured in place, and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

Features
  • The WB98 H/C feature transformerless preamplifier circuitry which improves linearity across the full frequency range
  • The pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise
  • Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments
  • The WB98H/C features a 1.6 m (5.3ft) high-flex cable terminating in a 4-pin mini-connector, for use with wireless bodypack transmitters
  • Tailored frequency response for open, natural sound reproduction
  • Compact, lightweight construction provides a low degree of visibility
  • Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning
  • Legendary Shure ruggedness and reliability

Specifications
Type Condenser (electret bias)
Frequency Response 20 to 20,000 Hz
Output Level Open Circuit Voltage: -59 dBV/Pa (1 mV) typical; 1 Pa = 94 dB SPL (at 1,000 Hz)
Maximum SPL 2.5 kilohm load: 160 dB, 1 kilohm load: 156 dB (20 Hz to 20 kHz, less than 1% THD)
Preamplifier Output Clipping Level 2.5 kilohm load: + 6 dBV (2.0 V), 1 kilohm load: + 2 dBV (1.26 V) (20 Hz to 20 kHz, less than 1% THD)
Dynamic Range 125 dB (max SPL minus A-weighted noise) (at 20 Hz to 20 kHz, less than 1% THD, 2.5 kilohm load)
Output Noise 35 dB SPL, A-weighted
Signal-to-Noise Ratio 59 dB re 94 dB SPL
Output Impedance Rated at 150 ohms (actual) Recommended minimum load impedance: 1 kilohm
Hum Pickup -7.5 dB equivalent SPL in 1 mOe field (60Hz)
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Phantom Power 48 Vdc +/- 4 Vdc(IEC-268-15/DIN 45 596), positive pins 2 and 3
Microphone Case Matte black enamel brass case and stainless steel inner grille
Preamplifier Case Matte black enamel finished steel
Dimensions (Dia x L) Microphone: 0.46" (11.7 mm) x 1.40" (35.6 mm)
Preamplifier: 0.79" (20 mm) x 3.89" (99 mm)
Weight Microphone: 0.4 oz (12 g) Less Cable
Preamplifier: 3.4 oz (96 g)
