Small Restaurant Sound System with 8 C3 Ceiling Speakers and MA120BT 120W Bluetooth Mixer Amplifier

Inside the Design

This small restaurant sound system is designed to deliver clear, evenly distributed background music throughout dining areas, serving spaces, and customer seating zones. Equipped with eight ultra-compact C3 3" micro ceiling speakers and the Pure Resonance Audio MA120BT 120W Bluetooth mixer amplifier, this system provides outstanding audio performance while maintaining a minimal visual footprint. The C3 speakers blend seamlessly into ceiling environments with their sleek, unobtrusive design, offering excellent sound dispersion ideal for restaurants, cafŽs, and small hospitality settings. Paired with the MA120BT's 7 input channels, wireless Bluetooth streaming, and commercial-grade power, this system ensures reliable, easy-to-use operation for daily business needs.

Sound System Features:

• Simple-to-install 70V/100V distributed audio system ideal for small restaurants and cafŽs
• Compact C3 micro ceiling speakers provide wide sound coverage with a discreet, modern design
• Easy-Mounting threaded rings allow quick installation with no additional hardware required
• Bluetooth-enabled mixer amplifier makes wireless music streaming effortless
• MA120BT features 7 input channels for flexible connection of devices, sources, and paging microphones
• 120W of clean, efficient power with support for 70V, 100V, 4½, and 8½ speaker configurations
• Built-in MP3 player with USB, SD, and FM radio for additional playback options
• Passive (fanless) cooling design ensures quiet, reliable operation during long business hours
• Advanced protection circuitry guards against overload, clipping, high temperature, and short circuits

About the System Components

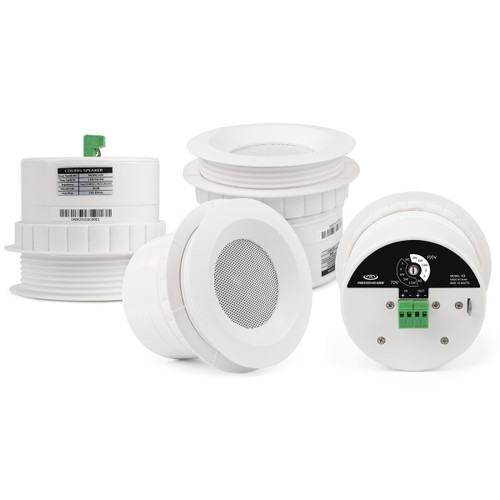

Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings

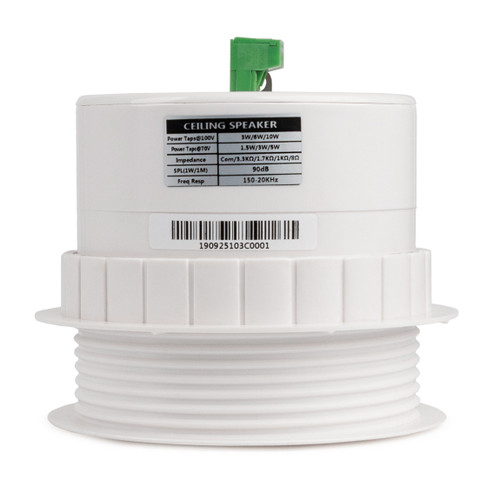

The Pure Resonance Audio C3 is an ultra-compact 3" micro ceiling speaker designed for high-quality background audio with a minimal aesthetic footprint. Its sleek, modern enclosure blends cleanly into restaurant ceilings while delivering excellent clarity and wide sound dispersion for music and announcements. The C3 includes an Easy-Mounting threaded ring that screws directly into the ceiling material, allowing for fast installation without additional hardware. With selectable 8½ or 70V/100V operation via the built-in power tap transformer, these speakers are ideal for distributed restaurant audio systems requiring flexible installation and smooth, consistent coverage.

Pure Resonance Audio MA120BT 7-Channel 120W Commercial Bluetooth Mixer Amplifier

The Pure Resonance Audio MA120BT is a compact, 7-channel commercial mixer amplifier engineered to deliver clean and reliable audio for restaurant environments. Producing 120W of power, it supports 70V, 100V, 4½, and 8½ speaker outputs for maximum system flexibility. The MA120BT includes Bluetooth connectivity for wireless music streaming, along with an integrated MP3 media player featuring USB, SD, and FM radio. With a frequency response of 60 Hz-15 kHz, <0.5% THD, and a high signal-to-noise ratio (Line ³85 dB, Mic ³72 dB), it ensures clear, consistent sound quality throughout the dining space. Its passive, fanless cooling system ensures silent operation, while built-in protection safeguards against overload, short circuit, clipping, and high temperatures. The compact shelf-mount form factor makes it easy to integrate into back-of-house or service areas. An IR remote is included for convenient control.
