The SolidDrive SD-1 in titanium is a surface-mount actuator for drywall. It converts walls into full-range speakers with 60 Hz–15 kHz response, high-power neodymium magnets, and direct-contact vibration for immersive sound.

Description

SolidDrive SD-1 Titanium Surface Mount Actuator

The SD-1 is a drywall-focused surface mount actuator that transforms walls into invisible, full-range speakers. Using patent-pending dual-voice coil technology with high-powered neodymium magnets and dual opposed motors, the SD-1 converts audio signals into powerful vibrations that are transferred directly into drywall surfaces. This produces high-quality sound radiating uniformly across the room.

Each SD-1 is designed for a single audio channel and mounts securely to drywall using a patented cantilever spring bracket, ensuring hidden planar-source acoustics and acoustical uniformity throughout the listening space. An optional equalization module optimizes the SD-1 for drywall performance, allowing it to deliver a frequency response of 60 Hz - 15 kHz and rich, immersive audio.

Perfect for home theaters, boardrooms, and commercial spaces, the SolidDrive SD-1 in titanium finish provides designers, integrators, and architects with a sleek, hidden speaker solution for drywall installations, combining reliable performance with a clean, unobtrusive appearance.

Features
  • Titanium-finish surface mount actuator for drywall
  • Converts drywall into full-range, high-quality speakers
  • Patented dual-voice coil technology with neodymium magnets
  • Handles 5 - 100W program power, 30W continuous
  • Wide 120° coverage angle for even sound distribution
  • Hidden behind-wall mounting with a cantilever spring bracket
  • Optional equalization module for optimized drywall performance
  • Virtually friction-free operation for long life
  • 7-year warranty

Specifications
Frequency Response 60 Hz - 15 kHz (Nominal w/o EQ, substrate dependent)
Max. Program Power 100W, with 100 Hz 12 dB / oct high-pass
Max Continuous Power 30W
Max. SPL @ 1 m (100 Hz - 10 kHz) 88.8 dB Drywall (equivalent to conventional in-wall @ 4 m)
Sensitivity dB @ 2.83V / 1 m Nominal, 70 - 75 dB
Distance Factor Approximately ±4 dB | Distance Doubling
Effective 1W / 1 m Sensitivity 74 dB Drywall (Equivalent to conventional in-wall @ 4 m)
Impedance (Nominal) 8Ω
Coverage Angle @ 50 Hz - 3 kHz Greater than 120°
Inputs Wire lead with screw connector block
Dimensions (H x Dia) 2.06" (52.32 mm) x 2.3" (58.42 mm)
Shipping Weight 1.4 lbs (0.64 kg)

DOCUMENTS

Related Products

Sold Out

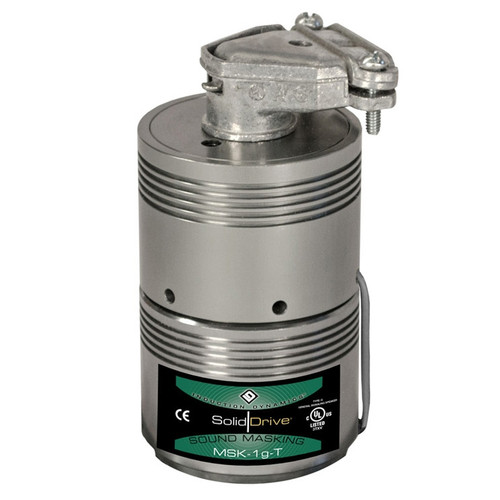

SolidDrive MSK-1G-T Sound Masking Actuator
