The Amp Multi is a professional 8-channel, 4-zone amplifier designed to simplify installations while delivering high-quality audio. Its sleek, rack-ready design supports a 2U configuration, with convection cooling and GaN technology for efficient power use and minimal heat. Each of the eight 125W channels can be assigned to any zone, giving integrators complete flexibility to design multi-zone audio systems tailored to the space.

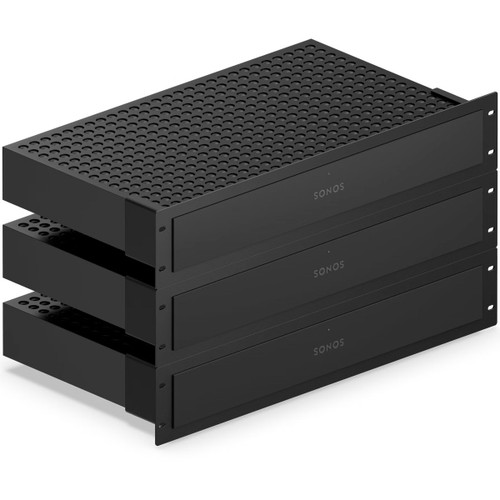

Post-filter feedback (PFFB) ensures real-time signal correction, providing precise, clear sound across a variety of speaker loads. Amp Multi includes ProTune manual controls, allowing adjustment of EQ, delay, and gain on every channel to optimize each zone's performance. The flat back and optional rack mount (sold separately) make installation fast and secure, with clear status LEDs providing immediate feedback.
Control and streaming are easy with the Sonos app, Apple AirPlay 2, or Spotify Connect. Stream up to four sources simultaneously across different zones, monitor outputs, and assign channels effortlessly using wired Ethernet or WiFi 6. Amp Multi supports Sonos Architectural speakers and offers optimization profiles for each output, giving integrators the tools to deliver precise, customized multi-zone audio experiences.
| Power Output | 125W per channel at 8Ω (all channels driven) |
|---|---|
| Speaker Outputs | 8 amplified outputs configurable for stereo or mono |
| Amplifier Technology | Class D with GaN and Post-Filter Feedback (PFFB) |
| Minimum Speaker Impedance | 2.67Ω with Sonos Architectural speakers |
| Frequency Response | 15 Hz - 20 kHz ±0.5 dB |
| Total Harmonic Distortion | 0.005% at 2.83Vrms - 15Vrms |
| Signal-to-Noise Ratio | 114 dB (ref 125W into 8Ω) |
| Damping Factor | >400 (ref 8Ω, 20 Hz - 1 kHz) |
| Analog Audio Inputs | 2 x RCA line inputs (-10 dB) |
| USB-C Audio Input | Stereo input 44.1 kHz/16-bit (requires Sonos Line-In Adapter) |
| Subwoofer Output | 1 x RCA sub output (-10 dB) plus support for 1 Sonos Sub per zone |
| Network Connectivity | Ethernet RJ45 (100Base-TX) and WiFi 6 (802.11a/b/g/n/ac/ax) |
| Streaming Support | Apple AirPlay 2, Spotify Connect, and Sonos app streaming services |
| Power Requirements | 100-240V AC, 50/60 Hz universal input |
| Dimensions (H x W x D) | 2.52" (64.5 mm) x 17.2" (436.8 mm) x 10.44" (265.2 mm) |
| Weight | 11.17 lbs (5.06 kg) |
| Shipping Weight | 16.56 lbs (7.51 kg) |
