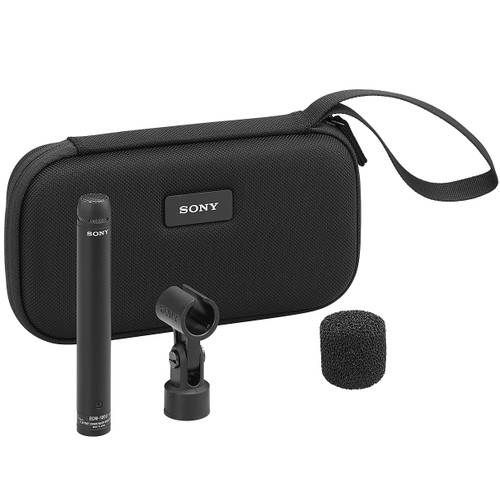

The ECM-100U is a unidirectional electret condenser microphone ideal for instrument recording in the studio and compatible with High-Resolution Audio. Equipped with a newly developed microphone capsule, the Sony ECM-100U delivers a flat and wide frequency response of 20 Hz to 50 kHz, capturing the original characteristics of instruments with extremely low distortion.
Features a newly developed small-diaphragm microphone capsule with unidirectional characteristics for authentic instrument sound reproduction. Its flat and wide frequency response provides excellent sound reproduction quality for High-Resolution Audio. The two-part metallic body structure, originally employed in the C-800G microphone, helps prevent acoustic vibration, resulting in low noise and clear sound.
A low-cut filter switch helps eliminate low-frequency noise and proximity effect, while the -10 dB pad switch adds headroom and minimizes distortion from transient peaks. These features make the Sony ECM-100U suitable for detailed instrument recording in studio environments.
| Capsule Type | Electret Condenser |
|---|---|
| Frequency Response | 20 Hz to 50 kHz |
| Directivity | Cardioid |
| Sensitivity | -41 dB |
| Output Impedance | 100Ω ±15%, Balanced |
| Dynamic Range | 121 dB or more |
| Signal-to-Noise Ratio | 73 dB or more |
| Inherent Noise | 21 dB SPL or less |
| Maximum Input Sound Pressure Level | 142 dB SPL |
| Connector | XLR-3-12C (male) |
| Mic Cable | XLR 3-pin Cable Required (Not Supplied) |
| Power Requirements | DC 44 to 52V |
| Dimensions (Dia x H) | 0.75" (19.05 mm) x 5.12" (130.05 mm) |
| Weight | Approx. 0.29 lbs (0.13 kg) |
