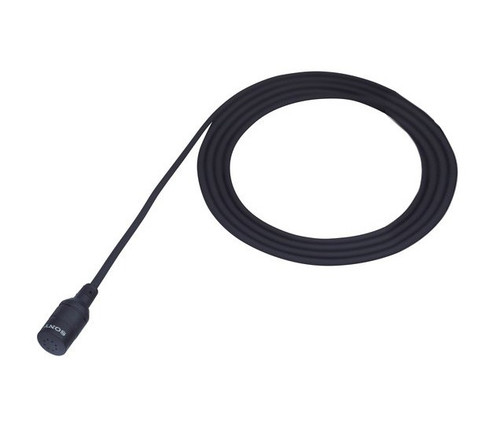

SONY ECM-66BC Electret Condenser Lavalier Microphone (Discontinued)

Part #:
ECM66BC
Model #:
ECM-66BC
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

With its ability to reject ambient noise, Sony's ECM-66BC Uni-Directional Electret Condenser Lavalier Microphone is ideal for presentation applications. Features include a mic head that weighs only 0.25 ounces, a black finish, and a SMC9-4P connector.

Description

With its ability to reject ambient noise, Sony's ECM-66BC Uni-Directional Electret Condenser Lavalier Microphone is ideal for presentation applications. Features include a mic head that weighs only 0.25 ounces, a black finish, and a SMC9-4P connector.

Features

  • Designed for instrumental applications
  • 2-way powering-AA-size battery or external power supply
  • 130dB SPL max. input sound pressure level
  • Black finish
  • Fitted with 1.2m cable terminating in SMC9-4P connector for use with Sony wireless microphone system

Specifications

Capsule type Electret condenser
Frequency response 70-14,000Hz
Directivity UNI
Microphone cable 3m
Output connector XLR-3-12C TYPE
Sensitivity (0dB=1V/Pa, at 1kHz) -50.0dB ± 2dB
Output impedance at 1 kHz 100 ohms
Dynamic Range Equal to or greater than 101dB
Signal to noise ratio (A weighted,1kHz,1Pa.) Equal to or greater than 65dB
Wind Noise (w/wind screen) 50dB SPL
Maximum input sound pressure level 130dB SPL
Battery SUM-3(NS) (1.5V)
Battery Life Approx 300H
Ext. Power DC48V
Inherent noise (0dB SPL=20µPa.) Equal to or less than 29dB SPL
Dimensions (Dia x L) 0.4375" (11.113 mm) x 0.969" (24.613 mm)
Weight 0.06875 lbs (1.1 oz)
