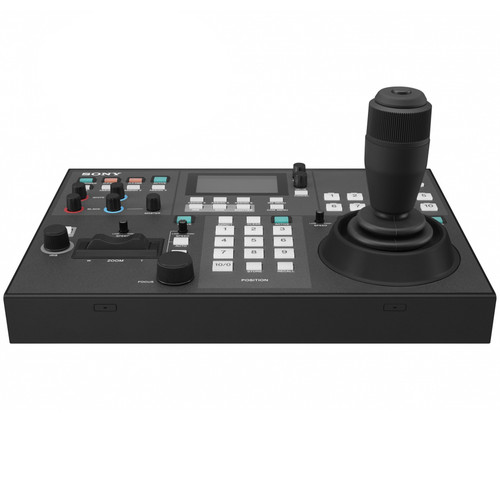

SONY RMIP500/1 PTZ Camera Remote Controller

Easy, ergonomic PTZ control of multiple remote cameras for live events production and contents creation

This compact remote controller features a high-quality joystick that allows effortless one-handed pan, tilt and zoom adjustments of compatible Sony PTZ remote cameras. Zoom can also be controlled via the joystick or a supplementary seesaw lever; dedicated knobs and control buttons simplify direct access to frequently-needed camera functions.

The RM-IP500 simplifies the building of cost-effective multi-camera content creation systems with a wide range of applications - from live events to conference halls, broadcast studios, education institutes and houses of worship.

PTZ speed can be adjusted from slow to fast for more polished, professional-looking results. Up to 100* combinations of camera angles and settings can be stored as presets. Trace Memory* allows a sequence of camera moves to be stored and recalled whenever required.

Up to 100 compatible Sony BRC or SRG Series PTZ remote cameras can be controlled over a standard IP network. Set-up's simple: the controller automatically assigns IP addresses to connected Sony PTZ cameras on the network, also assigning a camera number to each.

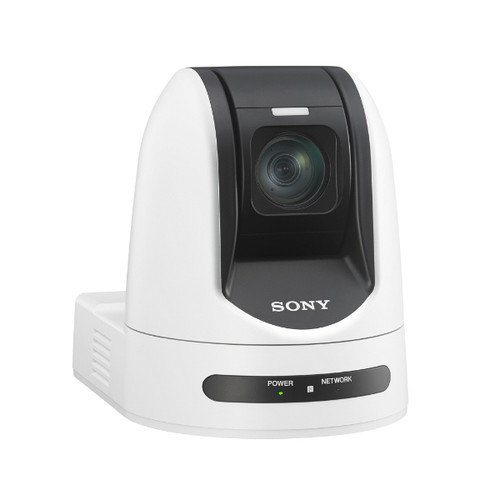

Full compatibility is provided with these Sony PTZ remote camera models: BRC-X1000, BRC-H900, BRC-H800, SRG-360SHE.

The RM-IP500 is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating a complete IP streaming and SD recording solution for a wide range of content production applications.

* Depends on camera specification. Version up might be required.

• High-quality control of PTZ functions
• Control up to 100 BRC or SRG cameras via IP
• Simple set-up
• Trace Memory
• Store and recall camera presets
• Up to 5 controllers can operate on a single network
• Tally indicator
• Adjust camera paint functions
• Additional ability to use VISCA control
