By Pure Resonance Audio

Sound Masking Speech Privacy Speaker System with 4 SP8 Ceiling Tile Speakers and Ambient Noise Generator for up to 1600SF

Part #:
SMSS-4SP8MA60BTCOMFORT
Model #:
SMSS-4SP8MA60BTCOMFORT
Availability: Currently Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This ambient sound masking system is great for counseling, therapy and medical offices to create a calming atmosphere to help clients and patients relax, reduce anxiety and help bring peace to their minds and bodies. Along with comforting sound masking, this sound privacy system can integrate background music and paging as well. Included are four SP8 SoundPlane 2x2 full-range ceiling tile speakers, a 60W MA60BT mixer amplifier and your choice of the River or Japanese Zen Garden plug-n-play USB ComfortCard™ to mask speech intelligibility comfortably.

Description

Inside the Design

Perfect for counseling, therapy and medical offices, this complete sound masking system creates a calming atmosphere to help clients and patients relax, reduce anxiety and help bring peace to their minds and bodies. Along with ambient background noise, this sound masking ceiling speaker system can integrate background music and paging as well. Included are four SP8 SoundPlane 2x2 full-range ceiling tile speakers, a 60W MA60BT mixer amplifier and your choice of the River or Japanese Zen Garden plug-n-play USB ComfortCard™ to mask speech intelligibility comfortably and effectively. The SP8 can replace multiple single speakers and provides approximately 20' x 20' or 400 sq ft of audio coverage from a single speaker. Perfect for buildings with minimal space between the structural ceiling and the dropped ceiling, the SP8 ceiling speakers have a slim mounting depth of only 3.9".

Sound System Features:

  • Takes minutes to install, just remove one ceiling tile and drop the SP8 into any standard 2x2 drop tile ceiling grid
  • The 2x2 speakers have an extremely low profile depth allowing them to fit into suspended ceiling spaces where deeper standard speakers would not
  • Eliminate distractions and create a healing atmosphere. Easily add comforting sound masking and speech privacy
  • The MA60BT allows user to select, play and control sound masking, music and paging and mix music and masking sounds
  • MA60BT is equipped with inputs for wired or wireless mics, CD/DVD players, laptops, computers, SD cards and USB drives
  • Included remote control manages volume levels, play/pause, skip and more all from a distance

About the System Components

This Pro Acoustics designed 70V speech privacy sound masking includes four Pure Resonance Audio SP8 SoundPlane 2x2 lay-in drop ceiling tile speakers, each with an 8" driver, a Pure Resonance Audio MA60BT 60W Bluetooth mixer amplifier, and your choice of a Pure Resonance Audio ComfortCard™ USB ambient noise generator with River or Japanese Zen Garden sounds, and 250' of speaker wire.

Not sure if this is the right Sound Masking solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Drop Ceiling Tile Speaker

  • Ultra-low profile of only 3.9" for shallow ceiling installation
  • Selectable 8 Ohm 70V/100V 10W taps
  • Full-range sound offers an excellent listening experience
  • Frameless design provides reduced visibility for a clean and built-in look
  • Easy installation drops into a 2'x2' suspended grid ceiling space
  • Safety hook with included safety cable

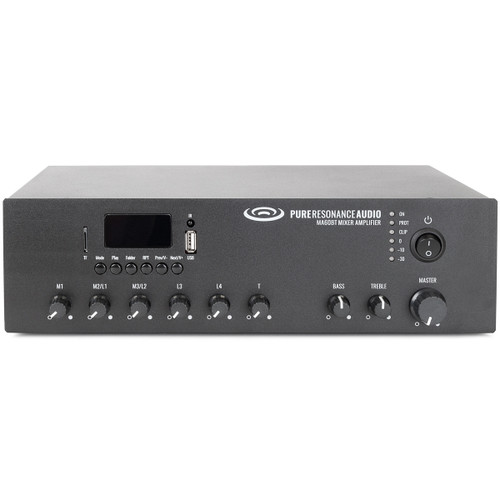

Pure Resonance Audio MA60BT 7-Channel 60W Commercial Mixer Amplifier with Bluetooth

  • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
  • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
  • MP3 Player, FM Radio & Bluetooth (with IR remote control)
  • USB and SD inputs on front panel
  • Power output rating 60 Watts
  • Built-in 70V/100V transformer
  • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
  • Mic 1 of balanced XLR input (with phantom power)
  • Mic 2-3 microphone or line switchable
  • Line 1-2 input of RCA inputs
  • DIP switches for Mic/Line, phantom power and microphone priority
  • Unbalanced 6.3 mm phone jack input
  • One RCA line output (0.775 line level 0 dBV)
  • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
  • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
  • Short-circuit, clip, overload and high temp protection
  • 24 VDC Emergency backup supply
  • 115V 60 Hz & 24V DC both operation system

System Includes

  • (4) Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Ceiling Tile Speakers
  • (1) Pure Resonance Audio MA60BT 60W Bluetooth Mixer Amplifier
    • (1) IR Remote Control
    • (1) Power Cord

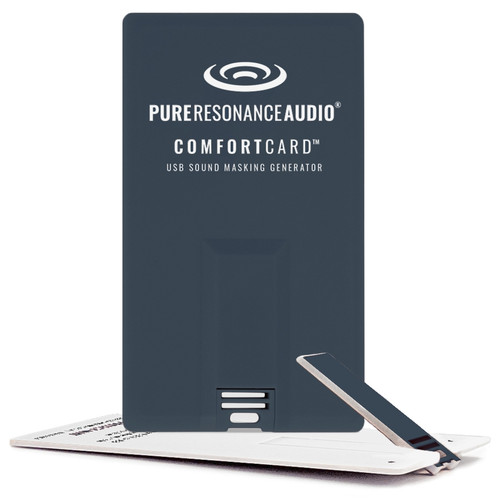

  • Your Choice of (1) Pure Resonance Audio ComfortCard™ USB Sound Masking Generator:

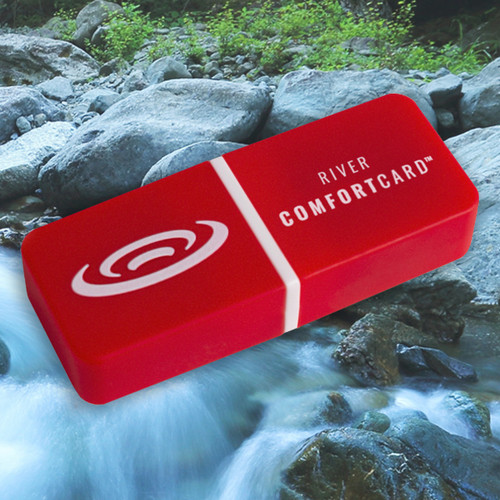

    • River - Authentic sounds of a rushing river and birds chirping
    • Japanese Zen Garden - Soothing sounds of water, birds, chimes and other garden sounds
  • (200') West Penn 224 18/2 Non-Plenum Audio Speaker Wire - Gray
