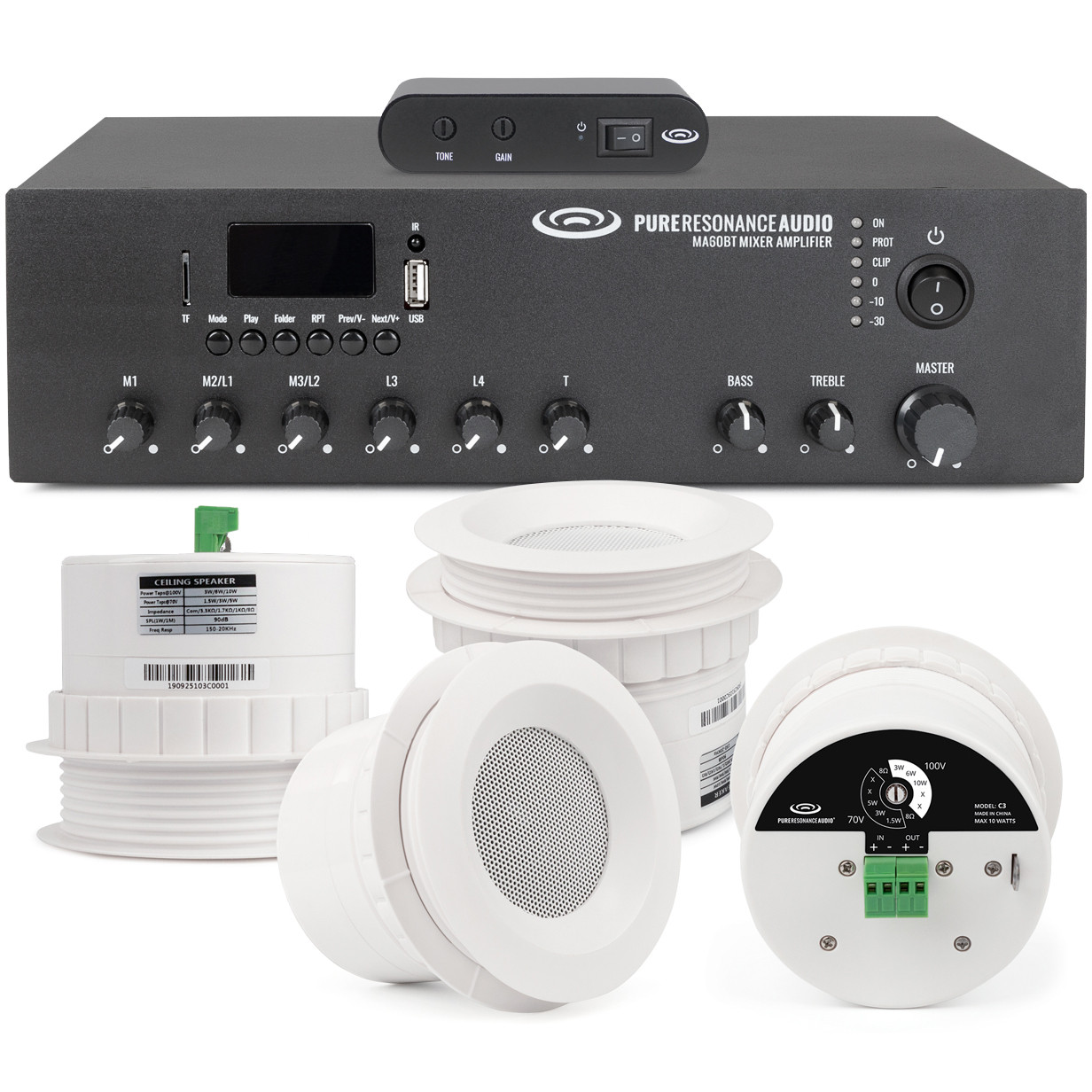

Sound Masking System for High Noise Industrial Environments with 16 Ceiling Speakers and Sound Masking Generator for up to 2500SF

Inside the Design

This sound masking, background music, and paging system combines sixteen sleek C3 3" ceiling speakers with the MA60BT mixer amplifier and the SMG1 sound masking generator for a simple, plug-and-play solution. Designed for noisy warehouse offices, this versatile system allows you to mix customizable sound masking with your favorite background music to create a more comfortable and productive environment. Plug it in and instantly enhance speech privacy, reduce distractions, and provide background music and paging across any space. Ideal for industrial buildings, processing plants, manufacturing facilities, mail sorting centers, and distribution hubs.

Sound System Features:

• Ideal for drop tile ceilings, these speakers are engineered for ceiling tiles with the screw on Easy-Mounting threaded mounting rings
• The C3 provides the smallest possible footprint while maintaining high-quality sound. 16 speakers cover approximately 2500 SF
• Adjustable tone control for customized sound masking with white, brown, or pink noise. Compact, durable design for reliable, privacy-enhancing performance. Easy plug-and-play setup to reduce distractions and boost productivity
• Integrated Bluetooth connectivity enables wireless playback for ambient music or other audio needs
• The MA60BT allows the user to select, play and control sound masking, music and paging to the desired levels and mix proportions of music and masking sounds
• The MA60BT is equipped with inputs for wired or wireless microphones, CD/DVD players, laptops, computers, SD cards and USB thumb drives
• The SMG1 sound masking generator delivers adjustable white, pink, and brown noise, allowing for customizable speech privacy and distraction reduction across diverse commercial environments

About the System Components

Pure Resonance Audio C3 Micro Ceiling Speakers

Ideal for drop tile ceilings and featuring a stylish, intelligent design, the Pure Resonance Audio C3 3" micro ceiling speaker is compact and lightweight. This ceiling speaker seamlessly blends into the ceiling creating a beautiful architectural look. With 8 ohm and 70 volt taps, the C3 ceiling speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as background music, paging and ambient sound masking in commercial environments. An ultra-thin flat bezel allows the C3 to blend into ceiling planes. The quick and Easy-Mounting threaded mounting ring provides secure, clean installation onto ceiling tiles and many other ceiling types.

Pure Resonance Audio MA60BT Mixer Amplifier

The Pure Resonance Audio MA60BT mixer amplifier with built-in Bluetooth and 70V/100V transformer technology provides a simple-to-operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. With an easy-to-use interface, balanced and unbalanced inputs, and 70V, 100V, 8 ohm, or 4 ohm outputs, this versatile and compact mixer-amp is an easy choice for any application.

Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

Pure Resonance Audio SMG1 Sound Masking Generator

The Pure Resonance Audio SMG1 is a versatile and affordable white noise sound masking generator designed to enhance speech privacy and reduce distractions in commercial environments. The SMG1 combines proprietary masking noise and flexible integration with a simple setup and compact design. With frequency adjustment for white, brown, and pink noise options, this robust sound masking generator is a user-friendly solution ideal for offices, medical facilities, hotels, call centers, and other sensitive spaces.

System & Component Videos

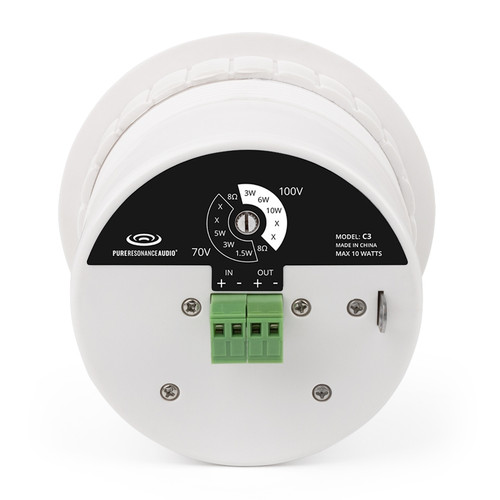

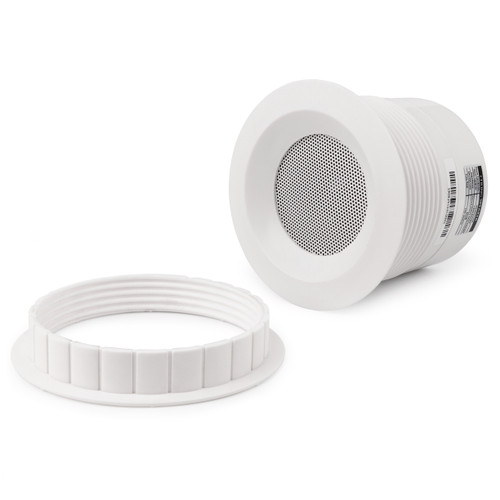

Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring

• Compact and lightweight
• Smallest possible footprint while maintaining powerful quality sound
• Intelligent, stylish design that seamlessly blends into the ceiling
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 1.5W, 3W, 5W
• 100V: 8 ohm, 3W, 6W, 10W
• Quick & easy installation with threaded mounting ring
• Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces

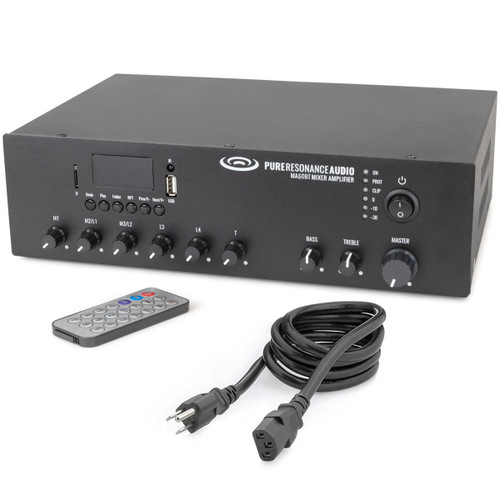

Pure Resonance Audio MA60BT 7-Channel 60W Commercial Mixer Amplifier with Bluetooth

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 60 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

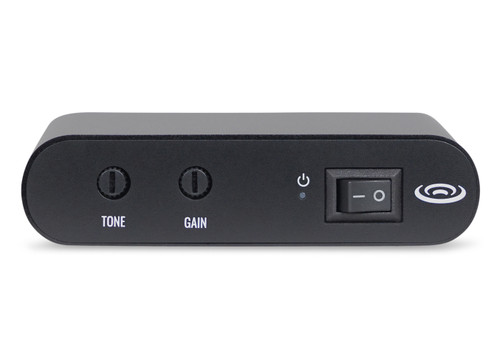

Pure Resonance Audio SMG1 Sound Masking Generator

• Adjustable tone control to produce white, brown, or pink noise for customized environments
• Compact and lightweight design fits easily into any commercial setting
• Durable build for long-lasting, reliable operation
• Plug-and-play setup with mounting bracket, dual RCA, and ⅛" TRS outputs
• Enhances privacy for conversations and sensitive information
• Improves focus and reduces distractions to support productivity in workplaces

• (16) Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings
• (1) Pure Resonance Audio MA60BT 60W Bluetooth Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (1) Pure Resonance Audio SMG1 Sound Masking Generator
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
