Sound Masking System for Private Medical Offices and Sensitive Compartmented Information Facilities with Eavesdropping Protection

Name: Sound Masking System for Private Medical Offices and Sensitive Compartmented Information Facilities with Eavesdropping Protection
Brand: Pure Resonance Audio
SKU: SMSS-4C34MS2000SMASPMG2240
Price: 2125.97 USD
Availability: InStock

Write a Review

Part #:

SMSS-4C34MS2000SMASPMG2240

Model #:

SMSS-4C34MS2000SMASPMG2240

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

With this speech privacy sound masking system all breach points in your SCIF (Sensitive Compartmented Information Facility), private medical office, or secure room are protected including windows, doors, HVAC ductwork pipes, and walls. This privacy sound masking system is designed with eavesdropping protection to prevent private and confidential conversations from being overheard or intercepted.

Description

Inside the Design

Safeguard private information and sensitive conversations in medical facilities by making speech less intelligible with this commercial sound masking speaker system. This speech privacy system also helps promote patient relaxation by pleasantly raising the ambient sound level in your environment by emitting just the right amount of acoustically optimized masking noise which can help to reduce noise distractions and eavesdropping. This sound masking system is perfect for healthcare facilities and medical offices to protect sensitive information and provide a more pleasant atmosphere.

Sound System Features:

Approximately 10,000 sq ft of coverage
Increases security by preventing eavesdropping on confidential conversations
C3 speakers provide the smallest possible footprint while maintaining high-quality sound
Selectable pink or white noise sources
Easily adjust to your desired volume level with the VC50W volume controls
Quick and easy installation

About the System Components

This Pro Acoustics designed sound masking system for medical applications includes four Pure Resonance Audio C3 3" Micro speakers kit with drywall mounting ring, four Atlas Sound M2000-SM surface mount sound masking transducers to secure the door, windows, walls and/or ducts, an Atlas Sound ASP-MG2240 two-zone compact sound masking controller amplifier with onboard DSP, two Pure Resonance Audio VC50W 50W decora 70V commercial volume controls and 500’ of plenum speaker wire.

Not sure if this is the right Sound Masking solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Pure Resonance Audio C3 3" Micro Speaker Kit with Drywall Mounting Ring:

Compact and lightweight
Smallest possible footprint while maintaining powerful quality sound
Intelligent, stylish design that seamlessly blends into the ceiling
Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
Tap settings:
70V: 8 ohm, 1.5W, 3W, 5W
100V: 8 ohm, 3W, 6W, 10W
Quick & easy installation with threaded mounting ring
Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces

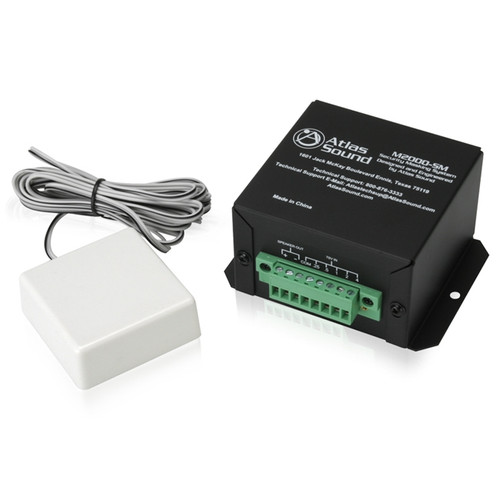

Atlas Sound M2000-SM Surface Mount Sound Masking Transducer:

Two part assembly
Works with many flat surfaces
Transformer taps 1/4 - 4 W
Security masking setup for privacy

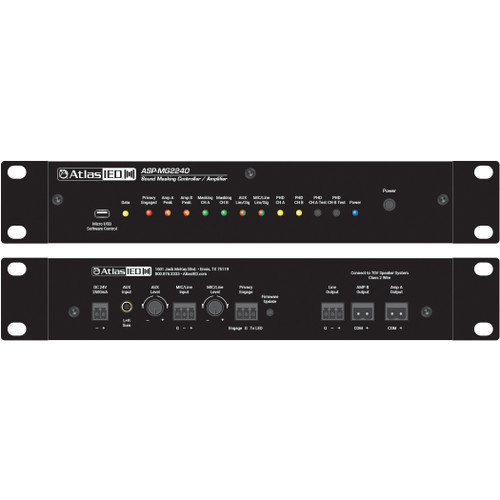

Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP:

Two-channels of internal amplification (20-watts per channel @ 70.7V)
Two separate analog masking generators
Analog white & pink noise generators
Auxiliary input for BGM with EQ & limiter
Mic/Line input for paging with EQ & limiter
Speech enhanced privacy mode (adjustable +/- 12dB)
Assignable balanced line output
Internal DSP parameters EQ, HI & Lo pass filters, limiter with intuitive software control
Push Here Diagnostic (PHD) automatic diagnostic system test
Single zone sound masking coverage up to 7000 sq ft

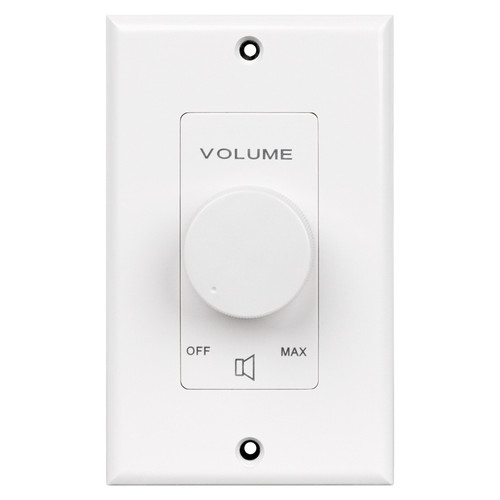

Pure Resonance Audio VC50W 50W Decora 70V Commercial Volume Controls - White:

Stylish appearance - Decora style design includes white plastic plate with matching knob
Flexible - The VC50W is perfect for use with a 25V, 70V or 100V speakers and distributed audio systems
High-quality adjustment - Volume control attenuator provides excellent frequency response, low insertion loss, and reliable performance
Smooth volume adjustment - Easily adjust to your desired volume level. No stop between maximum and off position to prevent switch damage
Versatile - Provides high-quality audio level adjustment of single or multiple speaker lines
Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

System Includes

(4) Pure Resonance Audio C3 3" Micro Speakers Kit with Drywall Mounting Ring
(4) Atlas Sound M2000-SM Surface Mount Sound Masking Transducers
(1) Atlas Sound ASP-MG2240 Two-Zone Compact Sound Masking Controller Amplifier with Onboard DSP
(2) Pure Resonance Audio VC50W 50W Decora 70V Commercial Volume Controls - White
(1) West Penn 25225B 16/2 Plenum Speaker Wire (500ft)
