Inside the Design

This speech privacy system with 60 sound masking speakers, a network controllable multi-zone sound masking generator with Dante, and four volume controls minimizes distractions and protects sensitive conversations in large office spaces, healthcare facilities, banks and financial organizations, retail applications, and more by reducing the level of speech intelligibility.

Sound System Features:

• Up to 6 zones with approximately 6,000 sq ft of coverage
• 180 degree dispersion of direct field sound masking
• Clear, quality paging and background music capabilities
• Reduces acoustical interference by using four uncorrelated channels
• Precise control over where masking sound is emitted
• Small, powerful speakers are virtually invisible in open ceilings
• Plug and play installation and easy configuration

About the System Components

This Pro Acoustics designed system provides sound masking for a variety of applications and includes 60 Cambridge Qt Emitters, a Qt X 600D 6-zone sound masking generator and control module with Dante media network, four RC3 Qt in-room decora style volume controls and four 25' plenum-rated volume controls cables.

Not sure if this is the right Sound Masking solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

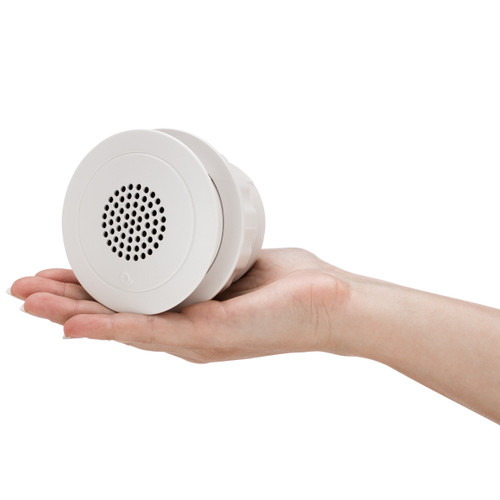

Cambridge Qt Emitters Sound Masking Speakers:

• Wide dispersion direct field speakers with 1.25" (3.17 cm) drivers
• Small driver size results in nearly 180-degree dispersion of direct field sound masking
• Plug and play installation and easy configuration
• Reduces acoustical interference by using four uncorrelated channels
• DIP switches attenuate the volume level up to 9 dB in 3 dB decrements for easy micro-zoning
• Plenum rated, UL-listed and complies with UL 2043
• Comes standard with slip ring for acoustical tile mounting



Cambridge Qt X600D Multi-Zone Sound Masking Generator with Dante:

• Compatible with Qt Standard emitters and Qt Active emitters
• Supports up to six zones
• Dante media network
• Two audio inputs for paging and music
• Contact closure integrates with fire alarm systems
• Front panel with LCD
• Front panel lock (via software control)
• Auto ramping
• Event scheduling
• Adjustable equalizer for masking and audio inputs
• Four non-correlated sound masking audio sources per zone
• Built-in clock with system NTP support
• Wall mount bracket included, optional rack mount bracket also available
• Dual network ports (media/control)
• Web interface control by any web-enabled device
• Third-party control API/Ethernet
• CE marked, ETL listed, and RoHS compliant
• Covered by Biamp Systems' five-year warranty
• Manufactured in the U.S.A.
• TAA compliant
• GSA eligible

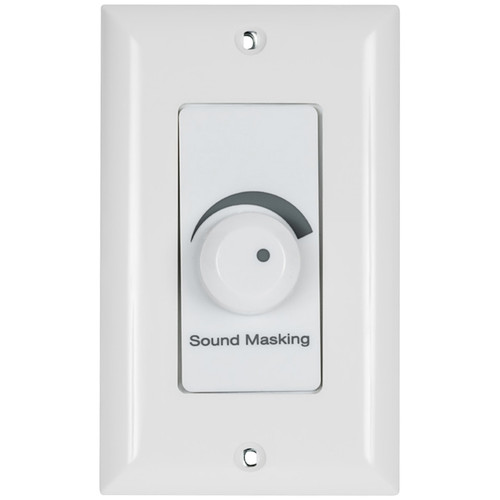

Cambridge RC3 Qt In-Room Volume Control with Decora Style Plate:

• Decora® centerplate, faceplate, and knob available in white
• Features 6 separate volume settings, from -10.0 dB to 0.0 dB (nominal)
• Bottom level setting installer selectable between Mute and –10.0 dB
• Controls up to 8 Qt Emitters or 14 Qt Active Emitters
• Mounts in most standard electrical boxes, including open back low voltage brackets

• (60) Cambridge Qt Emitters Sound Masking Speakers
• (60) 16ft UTP Cables
• (1) Cambridge Qt X 600D 6 Zone Sound Masking Generator and Control Module with Dante Media Network
• (4) Cambridge RC3 Qt In-Room Volume Controls with Decora Style Plate
• (4) Cambridge CC-25-W Plenum-Rated Cables, White - 25ft
