Inside the Design
This sound masking system enhances speech privacy, reduces noise distractions, and seamlessly integrates background music and paging into any space. It includes eight C3 3" micro ceiling speakers with pendant mount cylinders, powered by the MA60BT 60W Bluetooth mixer amplifier for reliable performance. The SMG1 sound masking generator provides pink, brown, and white noise for effective masking, creating a more comfortable and productive environment. Complete with speaker wires, integrated safety cables, an IR remote, and 500' of 18/2 gauge speaker wire, this all-in-one solution is perfect for offices, healthcare, retail, education, and more. Designed for easy installation, it delivers high-quality audio while maintaining a sleek, unobtrusive appearance.
Sound System Features:
- Simply connect the wire and safety cable combo to the back of the C3 ceiling speaker, thread the wire through the pendant mount cylinder, and twist in the C3 speaker. The wire length can easily be modified for suspension from the desired ceiling point
- Ideal for exposed structure or open plenum ceiling venues where a stylish contemporary speaker coordinates well with the architectural design
- Adjustable tone control for customized sound masking with white, brown, or pink noise. Compact, durable design for reliable, privacy-enhancing performance. Easy plug-and-play setup to reduce distractions and boost productivity
- The MA60BT allows the user to select, play and control sound masking, music and paging to the desired levels and mix proportions of music and masking sounds
- The down-firing design of the 3" driver directs the high-fidelity sound for wide evenly distributed coverage. Eight speakers cover approximately 1200-1800 SF
- The MA60BT is equipped with inputs for wired or wireless microphones, CD/DVD players, laptops, computers, TF cards and USB thumb drives
About the System Components

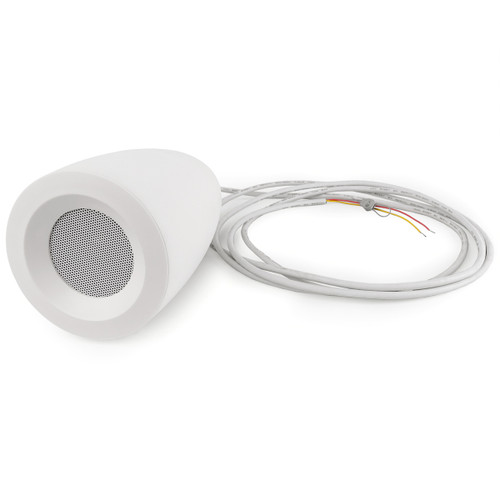

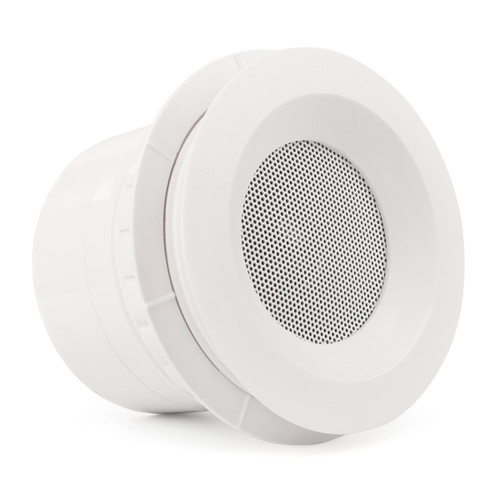

Pure Resonance Audio C3 3" Micro Pendant Speaker

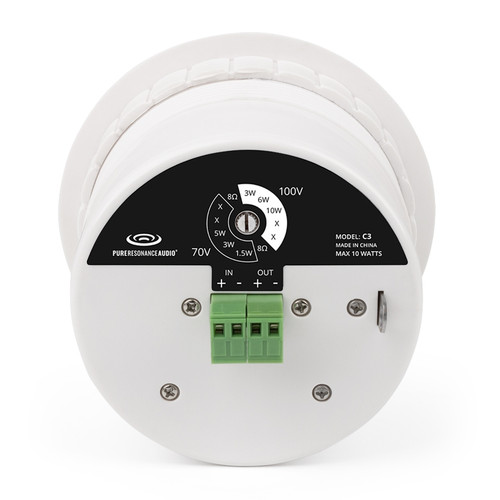

The Pure Resonance Audio C3 3" speaker and pendant kit features a stylish and intelligent design ideal for exposed structures or open plenum ceilings. With 8 ohm and commercial 70 volt audio taps and integrated single point mount, the pendant speakers are designed to provide excellent sound quality for a wide variety of applications. Compact and lightweight, the Pure Resonance Audio C3 3" micro speaker fits beautifully into the pendant kit cover and produces quality sound and excellent dispersion of both music and vocals. The C3 pendant-mount hanging kit is a quick and easy turn-key installation solution. The C3 ceiling speaker simply twists into the pendant cylinder. The switch on the back of the C3 provides wattage and loudness control for even sound distribution. Included is a 4 conductor 20 gauge speaker cable containing an integrated 12-foot multi-strand steel stress-relief safety cable and loop-nut safety cinch. The wire length can easily be modified for single-point suspension mounting from the desired structurally adequate ceiling points (consult your architect or engineer).

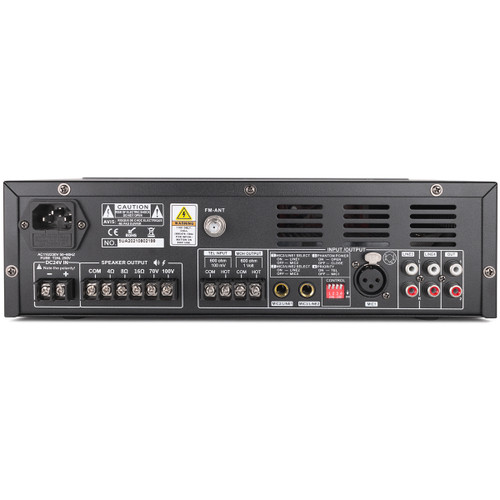

Pure Resonance Audio MA60BT Mixer Amplifier
The 7-channel MA60BT mixer-amplifier features a built-in 70V/100V transformer technology that provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70 Volt, 100 Volt, 8 ohm or 4 ohm outputs, compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

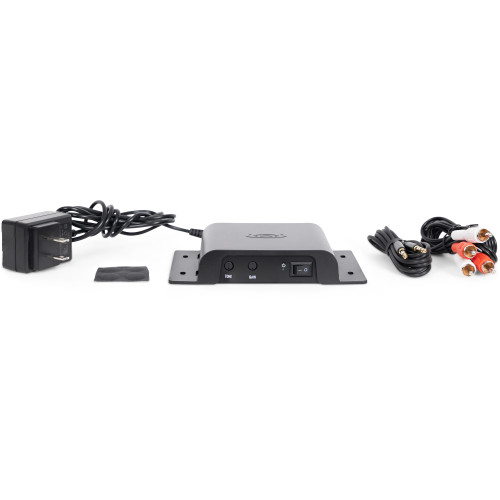

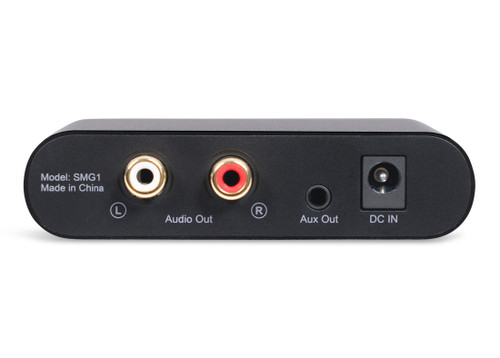

Pure Resonance Audio SMG1 Sound Masking Generator
The Pure Resonance Audio SMG1 is a versatile and affordable white noise sound masking generator designed to enhance speech privacy and reduce distractions in commercial environments. The SMG1 combines proprietary masking noise and flexible integration with a simple setup and compact design. With frequency adjustment for white, brown, and pink noise options, this robust sound masking generator is a user-friendly solution ideal for offices, medical facilities, hotels, call centers, and other sensitive spaces.
