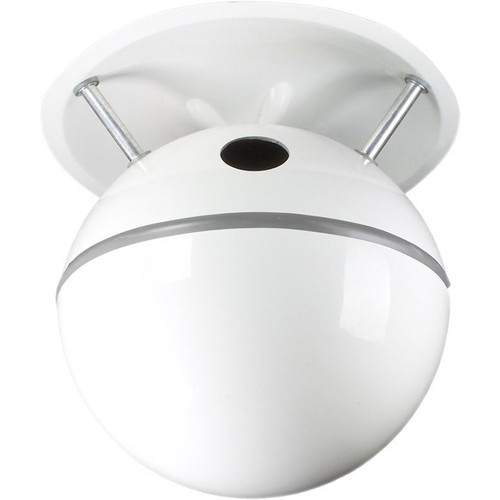

Soundsphere Q-12A 250-Watt Weather Resistant Compact Hanging Speaker
Soundsphere's Model Q-12A omnidirectional loudspeaker provides a more powerful sound system where clear voice announcements and high-fidelity foreground music at high sound pressure levels are required. Applications include gymnasiums, ice rinks, transportation terminals, factories, and nightclubs.
Along with its hemispherical coverage pattern, the Q-12A loudspeaker provides high sensitivity (97dB 1W/1m) and high SPL capability (121dB 250W/1m) and utilizes our exclusive patent-pending Poly-exponential Incidence Reflector. This loudspeaker can be mounted using our hanging kit or mounting bracket and comes in both standard and custom colors.
The Q-12A is also available in a weatherproof configuration (Q-12AWR) for outdoor use, featuring a protective screen over the holes and driver to prevent birds from nesting in the speaker.
| Enclosure Properties | Fiberglass |
|---|---|
| Source Inputs | Wire Leads |
| Crossover Frequency | 1.5 kHz |
| Frequency Response (± 10 dB) | 65 Hz - 15 kHz |
| Low Frequency Voice Coil | 2.99" (76 mm) |
| Low Pass Crossover | First order |
| Max. Continuous Power RMS | 250W |
| Network Type: High Pass | Second order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 2" Titanium diaphragm compression driver |
| Fullrange Driver | 12" True Coaxial |
| Woofer Driver | 12" Treated Paper Cone |
| Power Handling | 250W |
| Sensitivity | 97 dB |
| Tap Selector | Wire Leads |
| Dimensions (H x Dia) | 25" (635 mm) x 22.05" (560 mm) |
| Shipping Weight | 48.05 lbs (1.8 kg) |
