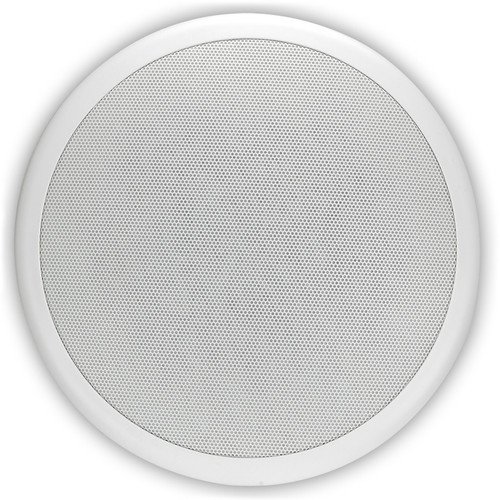

SoundTube CM800i 8 inch In-Ceiling Speaker - White

SoundTube CM800i 8 inch In-Ceiling Speaker - White

Name: SoundTube CM800i 8 inch In-Ceiling Speaker - White
Brand: SoundTube
SKU: SOUNDT-CM800i-WH
Price: 590 USD
Availability: InStock

Write a Review

Part #:

CM800i-WH

Model #:

CM800i

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The SoundTube CM800i is an 8", two-way, blindmount, in-ceiling speaker design that delivers extended low-end response (71 Hz) and optimal off-axis performance (2 to 10 kHz, independently verified).

Description

SoundTube CM800i 8 inch In-Ceiling Speaker

The CM800i is an 8", two-way, blindmount, in-ceiling speaker design that delivers extended low-end response (71 Hz) and optimal off-axis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The CM800i speaker design incorporates a low-profile grille, proprietary motor-board and six-position tap switch with transformer bypass position. Mounting hardware is included and features a fast and secure constant-tension, fixed-wing mounting system.

Features

Patented BroadBeam® waveguide technology delivers a consistent BroadBeam™ dispersion pattern for maximum coverage area per speaker (2 to 10 kHz, independently verified)
One 8" (203 mm) polypropylene woofer and one 1" (25 mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink
Rapid-installation, blind-mount, fixed wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25" (6.4 mm) to 1.91" (48.5 mm)
Easy-access six-position selectable tap switch for 25, 70.7 and 100V applications with transformer bypass position
Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting
Steel grille with protective powder-coated finish for lasting durability
An average sensitivity of 90 dB offers high-output capabilities and reduced amplification costs
UL 1480 (UEAY) and 2043 approved
High-quality black or white paint finish. Custom paint colors optional
Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask

Specifications

System Type	8", coax, in-ceiling, ported (66W transformer for 25/70.7/100V)
Impedance (Nominal)	8 ohm
Sensitivity dB @ 2.83 V / 1 m	90.0 dB
Sensitivity dB @ 1 W / 1 m	90.0 dB
Frequency Response (- 3 dB)	97 Hz - 22 kHz
Frequency Response (-10 dB)	71 Hz - 22 kHz
Max. Program Power	250W
Max. Continuous Power RMS	125W
Max. Power SPL @ 1 m	111.0 dB
Coverage Angle (-6 dB @ 2 kHz)	140°
Coverage Angle (-6 dB @ 10 kHz)	110°
Coverage Angle (Averaged from 2 to 10 kHz)	120°
Directivity Factor (Q)	3.8 (averaged 100 Hz - 10 kHz); 4.0 (2kHz)
Visible Height	1.08" (27.4 mm)
Directivity Index (DI)	6.0 dB (averaged 100 Hz - 10 kHz); 4.0 dB (2kHz)
Tap Selector	Six-position rotary switch with voice coil direct
Transducer - Low-Frequency Driver	8" (203 mm) Polypropylene cone, butyl rubber surround
Transducer - High-Frequency Driver	1" (25 mm) Convex aluminum tweeter with waveguide
Low-Frequency Voice Coil	1.20" (30.4 mm)
Crossover Frequency	3.0 kHz
Network Type: Low Pass	12 dB per octave, 2nd order
Network Type: High Pass	12 dB per octave, 2nd order
Enclosure Material	Drawn aluminum backcan with ABS baffle
Motor-board	Cast aluminum
Grille	Steel with powder-coat finish
Inputs	Four-pin, 5 mm Euroblock for individual or daisy chainconnection
Mounting Hole Diameter	12.75" (323.9 mm)
Min - Max Ceiling Thickness	0.25" (6.4 mm) – 1.69" (42.9 mm)
Backcan Dimensions (H x Dia.)	7.94" (201.7 mm) x 11.68" (296.7 mm)
Visible Dimensions (H x Dia.)	1.08" (27.4 mm) x 14.76" (374.9 mm)
Weight	12.5 lbs (5.7 kg)
Shipping Weight	39 lbs (17.7 kg)
