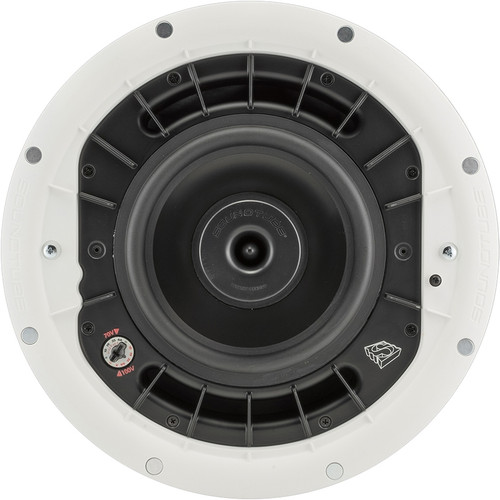

The SoundTube CM890i is a premium 8-inch, two-way, in-ceiling, high-efficiency, high-SPL loudspeaker for distributed or 8 ohm applications. The CM890i incorporates a dedicated 8-inch treated fiber driver and high-power compression transducer.

Description

SoundTube CM890i 2-Way 8" In-Ceiling Speaker

The CM890i is a premium 8-inch, two-way, in-ceiling, high-efficiency, high-SPL loudspeaker for distributed or 8 ohm applications. The CM890i incorporates a dedicated 8-inch treated fiber driver and high-power compression transducer with a Broad- BeamHP® waveguide to deliver a consistent dispersion pattern and superb intelligibility for the foreground music, sound reinforcement and PA markets. The CM890i also incorporates a 66-watt transformer with a six-position tap switch and voice coil direct position. Mounting hardware and tile-bridge are included and feature a fast and secure constant-tension fixed-wing mounting system.

Features

Patented BroadBeamHP® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 8 kHz, independently verified)
A 66W transformer and high output (114 dB) for the sound reinforcement and PA markets
Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with voice coil direct position simplifies ordering and inventory tracking
One 8" (203 mm) treated fiber driver and one compression driver with a 25.4 mm (1.0 in.) exit mounted to a proprietary cast aluminum M8™ baffle and heat sink
Average sensitivity of 93.0 dB offers high output capabilities and reduced amplification costs
Separate tool-free magnetic grille and bezel assembly with integrated safety/ seismic cable for ease of install and infield painting
Rapid-installation, blind-mount, fixed wing mounting mechanism with constant- tension design affixes to ceiling thicknesses ranging from 0.25" (6.4 mm) to 1.69" (42.9 mm)
UL 1480 and 2043 approved
Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask/installation aid
Optional accessories: Color-coded (purple) pre-construction bracket and junction box
High-quality black or white paint finish
Custom paint colors optional

Specifications

Enclosure Properties	ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume	513.8 cu in / 8419.67 cu cm
Included Accessories	Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge
Source Inputs	4 Pin 5.08mm Euroblock
Coverage Angle (-6dB @ 2kHz)	80°
Crossover Frequency	2.2 kHz
Cutout Width/Diameter	12.75" (323.9 mm)
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)	4.4 and 5.5
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)	7.4dB and 5.5dB
Frequency Response (± 10 dB)	62 Hz - 22 kHz
Frequency Response (± 3 dB)	80 Hz - 22 kHz
Low Frequency Voice Coil	1.34" (34 mm)
Low Pass Crossover	12 dB per octave 2nd order
Max. Ceiling Thickness	1.91" (48.5 mm)
Max. Continuous Power RMS	125W
Max. Program Power	250W
Minimum Impedance (Ω Ohms)	5.2Ω
Minimum Ceiling Thickness	0.25" (6.4 mm)
Network Type (High Pass)	12dB per octave 2nd order
Nominal Impedance (Ω Ohms)	8Ω
Tweeter Driver	1.42" Titanium Compression Driver w/ Waveguide
Woofer Driver	8" Treated paper cone Cloth surround
Sensitivity dB @ 1W/1M	93dB
Sensitivity dB @ 2.83V/1M	93dB
Tap Selector	Rotary Switch
Transformer Options	25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps (25V/70.0V/100V)	9W/66W/66W
Visible Dimensions (H x Dia)	1.08" (27.4 mm) x 14.76" (374.9 mm)
Backcan Dimensions (H x Dia)	7.94" (201.7 mm) x 11.68" (296.7 mm)
Carton Dimensions (H x W x D)	18.75" (476.24 mm) x 32" (812.8 mm) x 14" (355.6 mm)
Shipping Weight	47.55 lbs (21.57 kg)
