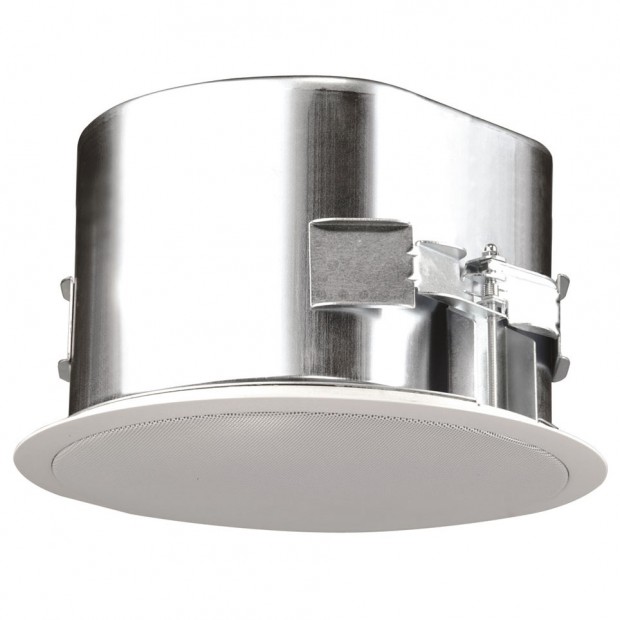

Soundtube IP-CM82-BGM 8 inch In-Ceiling POE Speaker (Discontinued)

The IP-CM82-BGM is an 8-inch coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating an 8-inch polypropylene driver with a butyl rubber surround and a 1-inch silk dome tweeter in a sealed drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (55 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge “fullmetal” steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, as well as a six-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position.

• IP adressable, self powered (POE) speaker
• One 8" (203 mm) polypropylene woofer with butyl rubber surround and one 1" (25 mm) silk dome tweeter
• BeamRing™ technology for mid-range clarity and ultra wide off axis performance
• Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation
• Tuned port on baffle for added musicality and bass response down to 55 Hz (-10 dB)
• Reduced amplification costs and maximum efficiency of 89.0 dB sensitivity, 16 ohm impedance
• Incorporates a painted steel grille for lasting durability
• Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6 mm)
• UL 1480 and 2043 pending
• High-quality black or white painted finish
• Custom colors available
• Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield
• Optional accessories: Color-coded (green) pre-construction bracket (AC-CM6-8EZPCB)
