SoundTube IW31-EZ 3" Full-Range In-Wall Speaker

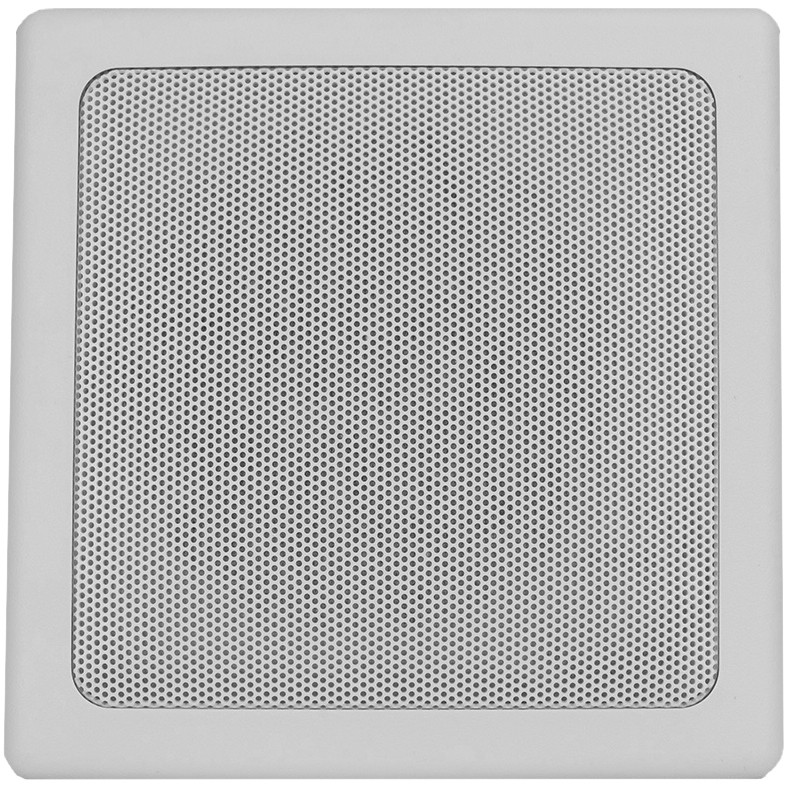

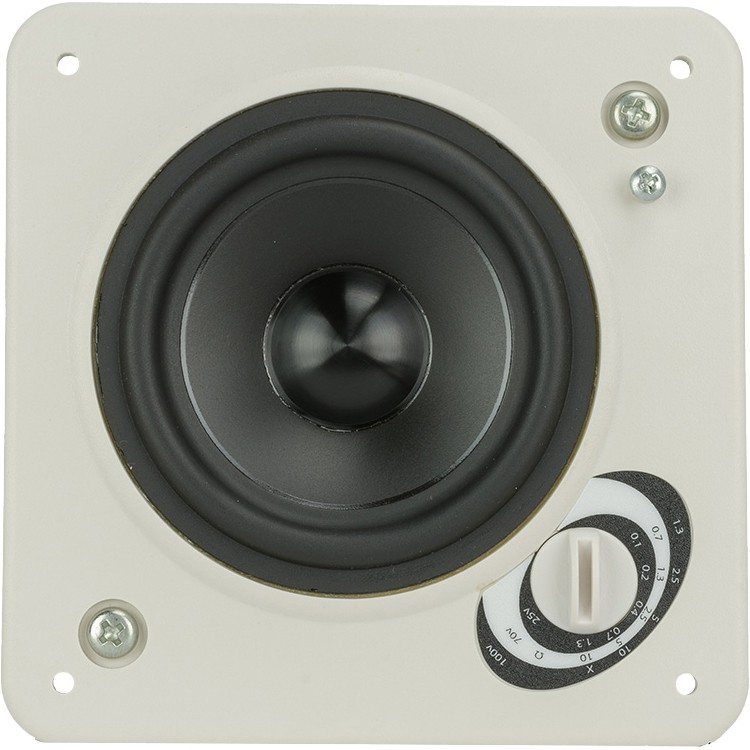

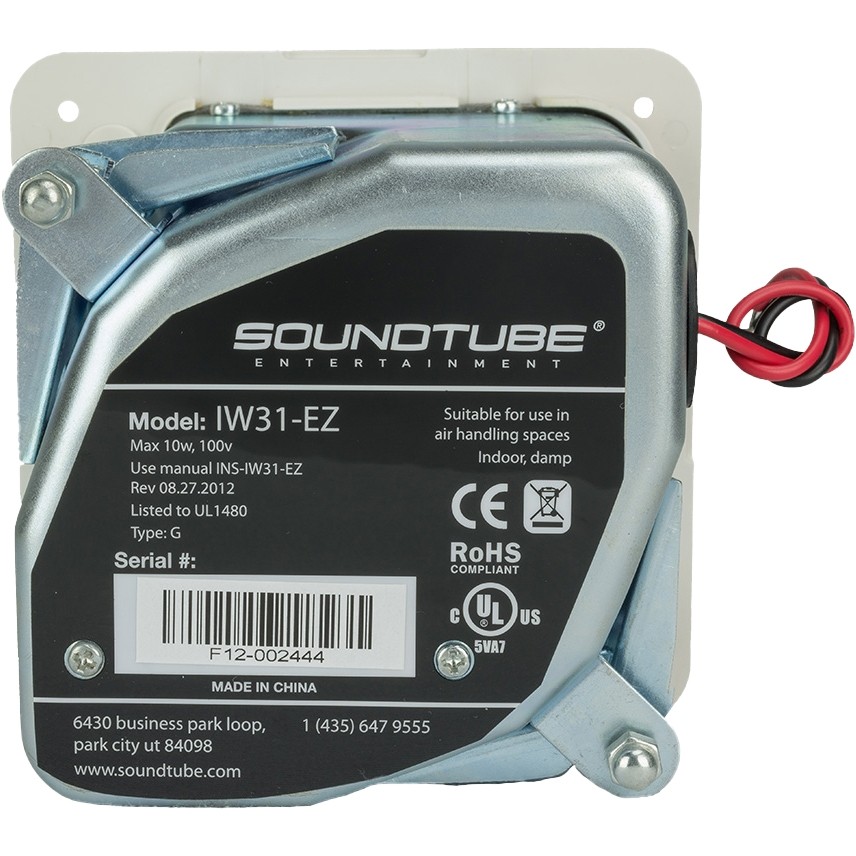

The IW31-EZ is a premium full-range 3-inch in-wall speaker for applications requiring 8 ohm or distributed audio solutions. The IW31-EZ incorporates a low profile grille with a total visible footprint of a 5" square and an integrated back can and driver design for ultra-compact installations in wall plates. The speaker includes a rapid installation, blind-mount fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1" (2.5 mm) to 1.5" (38.1 mm). The in-wall speaker includes a six-position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constant tension Speed Wing™ mounting system. All components in the IW31-EZ are completely weatherized for indoor and outdoor applications. Conduit connector, paint mask, and wire nuts are included.
| Frequency Response (-3 dB) | 190 Hz - 14 kHz |
|---|---|
| Low Frequency (-10 dB) | 115 Hz - 22 kHz |
| Sensitivity | 85.5 dB |
| Power Capacity RMS | 20W |
| Max SPL dB @ 1 M | 98.5 dB |
| Nominal Impedance | 8 ohm |
| Full-Range Driver | 3" (76.1 mm) Polypropylene driver with butyl rubber surround |
| Connections | Hard wire leads |
| Visible Height | 5" (127 mm) |
| Visible Width | 5" (127 mm) |
| Backcan Height | 3.5" (88.9 mm) |
| Weight | 3 lbs (1.4 kg) |
| Shipping Weight | 4 lbs (1.8 kg) |
Usually arrives in 5-9 business days.
