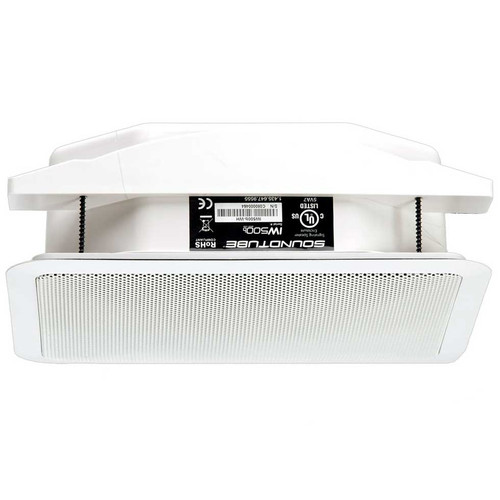

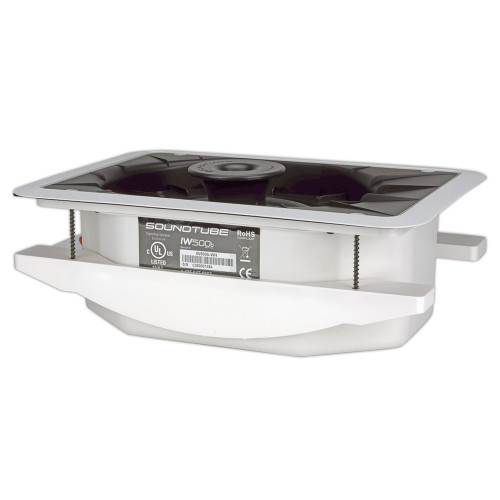

The SoundTube IW500b 5.25 inch In-Wall Speaker features BroadBeam waveguide technology that delivers a consistent dispersion pattern for maximum coverage area per speaker. It has one 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to an aluminum motorboard. 106.5 dB Max. SPL offers high output capabilities and reduced amplification costs. It is great for rapid installation blind-mount system for quick and secure installation. Designed for in-wall applications, the IW500b is ideal for music and messaging in boardroom, church, corporate A/V and education applications. For additional bass response down to 41 Hz (-10 dB), the CM1001d-T or SM1001p subwoofer may be used. It has an easy-access six-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position. Integrated UL-listed steel enclosure with conduit connections. Included accessories: mounting hardware, paint mask, hole template and conduit connector. Steel back box is UL1480.
| System Type | 5.25" Coax, in wall, sealed (32 Watt transformer for 25/70.7/100 Volt or 8 Ohm direct) |
|---|---|
| Impedance (nominal) | 8 ohm |
| Sensitivity dB @ 2.83V/1M | 87.5 dB |
| Sensitivity dB @ 1W/1M | 87.5 dB |
| Frequency Response (- 3 dB) | 140 Hz - 22 kHz |
| Frequency Response (-10 dB) | 69 Hz - 22 kHz |
| Max. Program Power | 150w |
| Max. Continuous Power RMS | 75w |
| Max. Power SPL @ 1 M | 106.5 dB |
| Coverage Angle (-6 dB @ 2 kHz) | 90º horizontal / 100º vertical |
| Coverage Angle (-6 dB @ 10 kHz) | 70º horizontal / 85º vertical |
| Coverage Angle (Avg. from 2 to 10 kHz) | 115º horizontal / 115º vertical |
| Directivity Factor (Q) | 4.9 (Avg. 100 Hz - 10 kHz) / 8.3 ( 2 kHz) |
| Directivity Index (DI) dB | 6.0dB (Avg. 100 Hz - 10kHz) /9.2dB (2 kHz) |
| Tap Selector | 6-Position rotary switch with 8 ohm direct |
| Transducer - Low Frequency Driver | 1 x 133 mm (5.25 in) Polypropylene cone, butyl rubber surround |
| Transducer - High Frequency Driver | 25mm (1in) Convex aluminum tweeter with waveguide |
| Low Frequency Voice Coil | 25.4 mm / 1.00 in |
| Crossover Frequency | 3.0 kHz |
| Network Type: Low Pass | 12 dB per octave, 2nd order |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Motor-board | Cast aluminum |
| Grille | Iridite-plated steel with powder-coat finish |
| Inputs | Wire leads |
| Colors | White (only), Paintable |
| Included Accessories | 1 UL listed 1/2" conduit connector, 2 wire nuts, paintmask, hole template |
| Optional Accessories | Preconstruction bracket (AC-IW-PCB) |
| Packaging | 1 per box |
| Regulatory - UL | Backcan listed to UL1480 |
| Regulatory - CE | Approved |
| Dimensions (H x W x D) | 11.84" (300.7 mm) x 8.64" (219.5 mm) x 3.9" (99.1 mm) |
| Weight | 8.9 lbs (4.0 kg) |
| Shipping Weight | 11 lbs (5.0 kg) |
