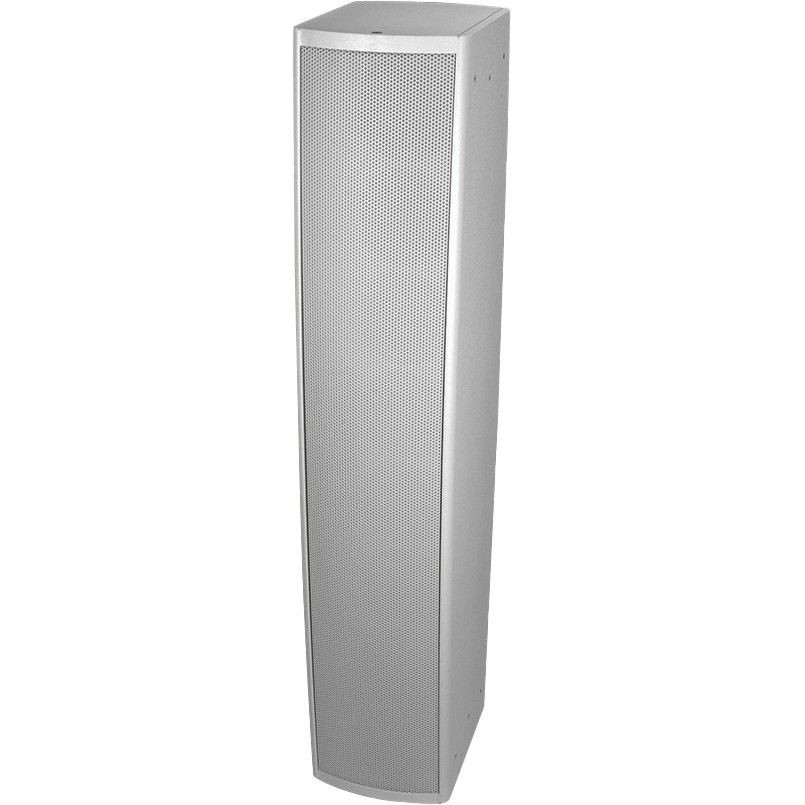

SoundTube LA808i 3-Way Line Array Speaker
NOT a subwoofer, the SoundTube LA808i is designed to increase the directivity of low frequencies in SoundTube®'s Line Array system. It can be used only in conjunction with the LA880i 3-way line array. The use of the LA808i is recommended in spaces that have a large reverberation time. When a single unit is added to the LA880i, directivity of low frequencies is increased by up to an octave lower than with the LA880i alone. The product®'s dimensions are identical to those of the LA880i. The LA808i must be placed either directly above or directly below the LA880i in order for the system to work properly. If desired, two LA808i units can be added: one above the LA880i and one below.
- Features
Features
- Passive, fixed length, low frequency directivity element for SoundTube Line Array
- Designed for use only with LA880i Line Array

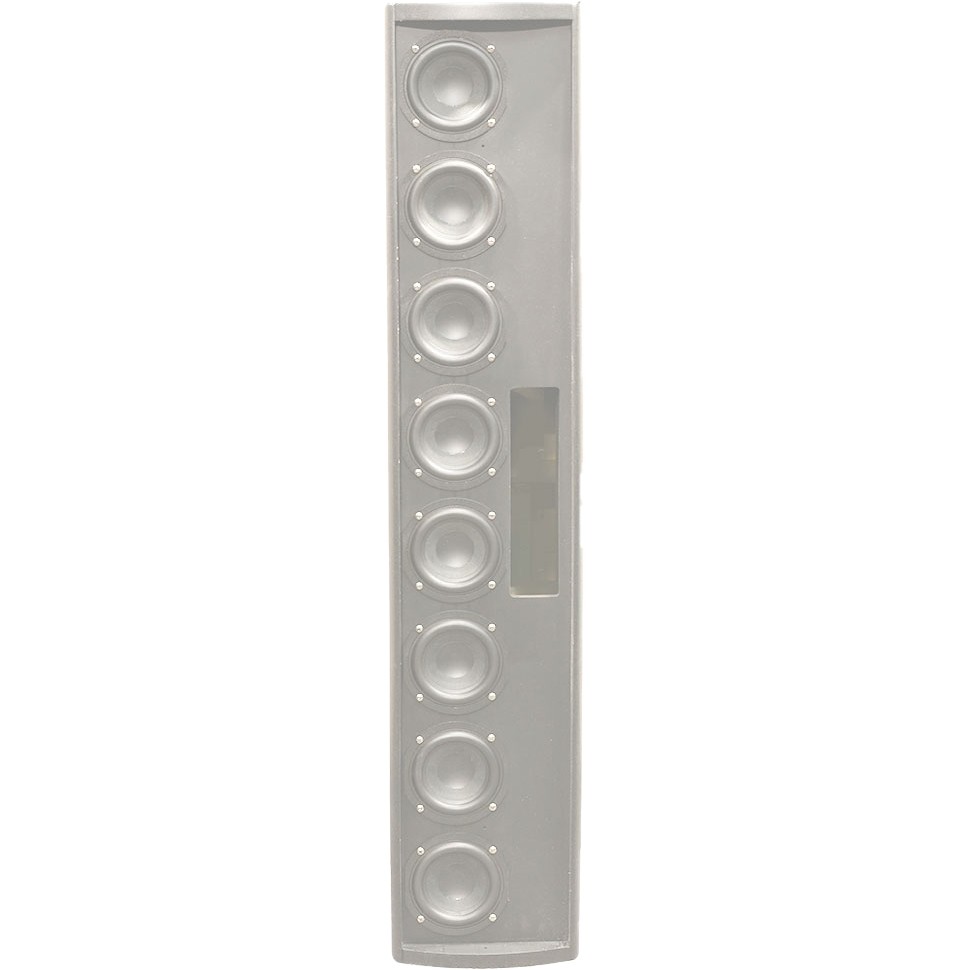

- (8) 4.5" (115 mm) woofers
- Extends low frequency directivity of line array systems by up to an octave lower than with the LA880i alone
- Paintable enclosure is constructed of MDF and plywood with metal threaded mounting points
- Powder coated, paintable steel grille
- Flexible mounting options include surface-mount, pole-mount, ceiling-mount or suspended (flown) - Mounting brackets not included

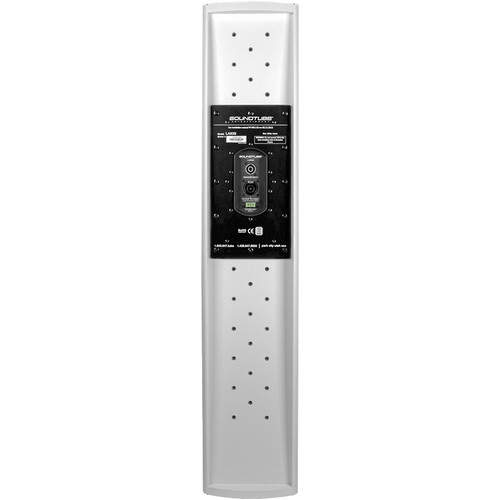

- Euroblock and SpeakOn connectors allow for fast connections and easy daisy chaining
- Specification
Enclosure MDF, Painted, Plywood Source Inputs 4 Pin 5.08 mm Euroblock, SpeakON Coverage Angle (-6dB @ 2kHz) 103° Horizontal 29° Vertical Crossover Frequency 500 Hz Frequency Response (± 10 dB) 75 Hz - 22 kHz Frequency Response (± 3 dB) 83 Hz - 22 kHz Nominal Impedance (Ω Ohms) 4 ohms Woofer Driver (8) 4.5" Woofers Paper w/ Rubber Surround Dimensions (H x W x D) 40.87" (1038 mm) x 7.91" (200 mm) x 10.8" (275.11 mm) Shipping Weight 50.45 lbs (22.88 kg) - Documents
