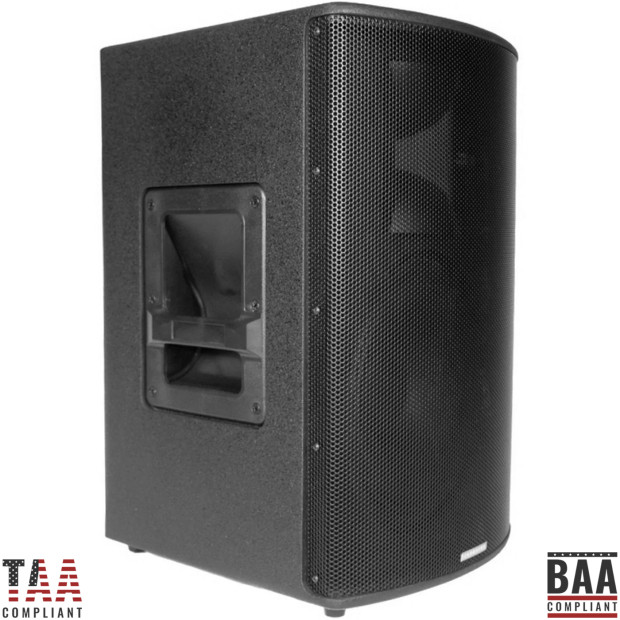

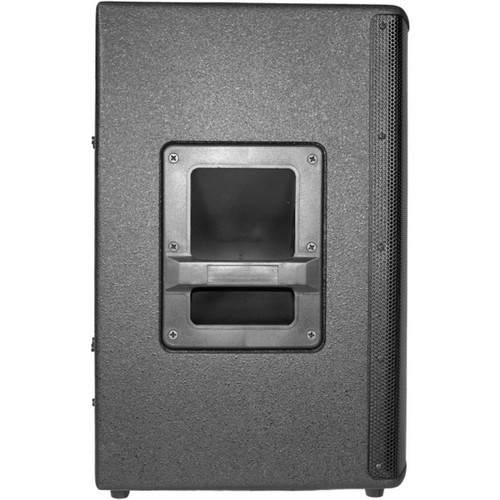

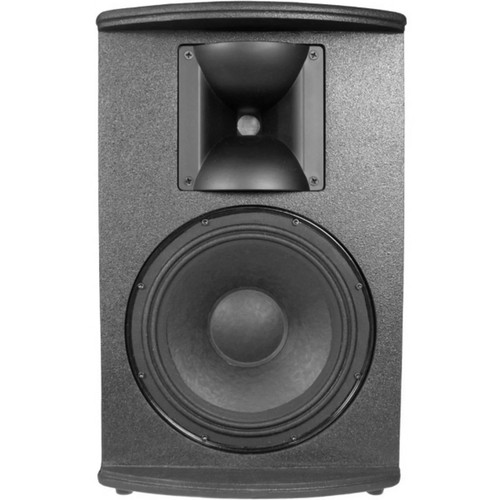

SoundTube PS1090i Performance Series 10" 2-Way 600W High-Performance Indoor Passive Loudspeaker

Part #:
PS1090i
Model #:
PS1090i
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The SoundTube PS1090i is a high-performance 10" 2-way indoor passive loudspeaker delivering 300W continuous (600W peak) power, 93 dB sensitivity, and 90° x 90° coverage for clear, powerful audio in installed or live environments.

Description

SoundTube PS1090i 10-Inch 2-Way Passive Loudspeaker

The PS1090i Performance Series 10" 2-way passive loudspeaker is engineered for high-output indoor audio applications requiring clarity, durability, and consistent coverage. Featuring a high-efficiency 10-inch woofer and a 1-inch compression driver with a 90° x 90° horn, the PS1090i delivers crisp highs, detailed midrange, and solid low-frequency performance for both foreground and background audio.

With 300 watts of continuous power handling and 600 watts peak, along with 93 dB sensitivity, this 8-ohm loudspeaker is designed to perform in demanding environments such as nightclubs, live venues, houses of worship, and commercial installations. Its wide dispersion pattern ensures even sound coverage across large areas, making it suitable for both installed and portable sound systems.

Built with a reinforced radiata pine enclosure and finished with a durable urethane bed-liner coating, the PS1090i is designed for long-term reliability in indoor applications. The electro-plated, powder-coated steel grille meets MIL-STD-810G standards for corrosion resistance, while optional mounting accessories provide flexible installation options. Proudly made in the USA and compliant with TAA and BAA standards, the PS1090i delivers professional-grade performance and versatility.

Features

  • 10" 2-way high-performance indoor passive loudspeaker
  • 300W continuous, 600W peak power handling
  • High-efficiency 10-inch woofer for strong low-frequency output
  • 1-inch compression driver with 90° x 90° horn coverage
  • 93 dB sensitivity for efficient, high-output performance
  • 8-ohm impedance compatible with professional amplifier
  • Reinforced radiata pine enclosure for durability
  • Urethane bed-liner coating for long-lasting indoor use
  • Powder-coated steel grille with MIL-STD-810G corrosion resistance
  • Wide dispersion for consistent coverage in large spaces
  • Optional pan/tilt bracket and fly mount kit for flexible installation
  • TAA and BAA compliant, made in the USA

Specifications

Impedance 8 ohm (Nominal)
Sensitivity 93 dB
Frequency Response ( ±3 dB): 73 Hz - 20 kHz, ( ±10 dB): 50 Hz
Max. Program Power 600W
Max. Continuous Power RMS 300W
Transducer Low-Frequency Driver: 10" High-Efficiency Woofer
High-Frequency Driver: 1" Titanium Compression Driver with 90 x 90 Horn Flare
Low-Frequency Voice Coil 2" (50.8 mm)
Crossover Frequency 2 kHz
Network Type Low & High Pass: 12 dB per octave, 2nd order
Enclosure Material Reinforced Radiata Pine with Urethane Bed-Liner Coating
Grille Electro-Plated & Powder-Coated Steel Grille (passed MIL-STD-810G test, Method 509)
Inputs 4-pin, 5.08 mm Euroblock for individual or daisy chain connection
Dimensions (H x W x D) 19.5" (495.3 mm) x 12.6" (320 mm) x 13.75" (349.3 mm)
Weight 40 lbs (18.1 kg)

DOCUMENTS

In The Box

  • (1) PS1090i Passive Loudspeaker
  • (1) M20 Cable Gland
  • (1) M25 Cable Gland
  • (4) Cover Plate Screws
  • (1) Cover Plate
